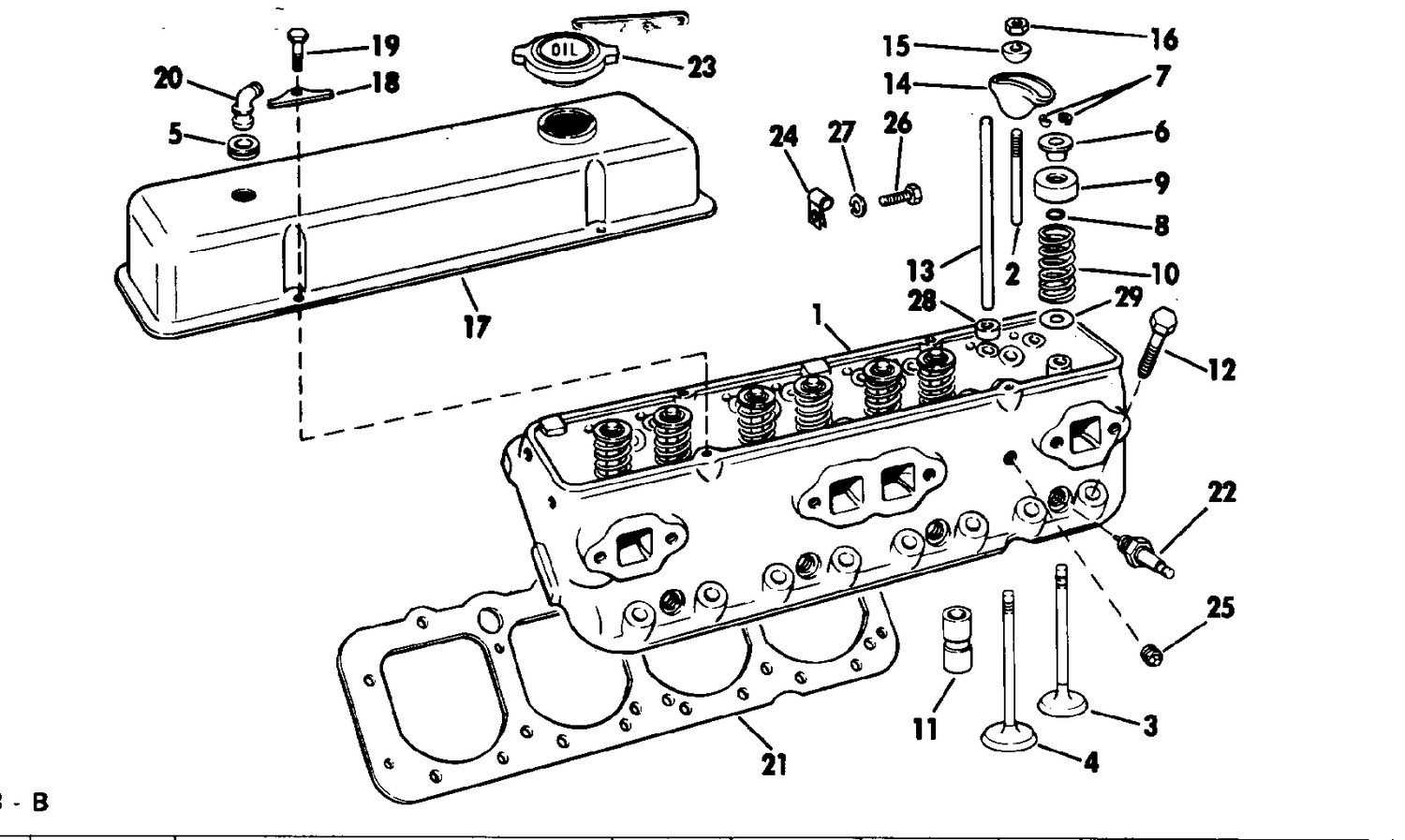

| Ref | Part Number | Description |
|---|
| 1 |
0353047 |
CYLINDER HEAD ASSY |
| 1 |
0464038 |
CYLINDER HAD ASSY |
| 1 |
0474214 |
CYLINDER HEAD ASSY |
| 1 |
14024432 |
CYLINDER HEAD ASSY |
| 2 |
3814692 |
SHANK,Light blue paint |
| 2 |
3815892 |
BLUE PAINT |
| 2 |
3921912 |
STUD, Cylinder head, .003" a O.S. |
| 3 |
14004009 |
VALVE, Inlet, .003" o.s |
| 3 |
14004010 |
VALVE, Inlet, .015" o.s |
| 3 |
14004011 |
VALVE, Inlet, .015" O.S. |
| 3 |
14007370 |
VALVE, Inlet, standard |
| 3 |
3852448 |
VALVE, Intake, 0.003 in. O.S. This part replaces 0908591. |
| 3 |
3852449 |
VALVE, Intake, 0.015 in. O.S. This part replaces 0908592. |
| 3 |
3852450 |
VALVE, Intake, 0.030 in. O.S. This part replaces 0908593. |
| 3 |
3852451 |
VALVE, Intake, standard This part replaces 0908612. |
| 3 |
3864808 |
VALVE, Inlet, std. |
| 4 |
0336742 |
HOSE, Fuel pump to manifold |
| 4 |
0340006 |
BRACKET, Mount This part replaces 0336733. |
| 4 |
6263732 |
VALVE, Exhaust, std |
| 5 |
0311543 |
GROMMET |
| 5 |
3989347 |
GROMMET VALVE COVER |
| 6 |
14003974 |
CAP, Intake valve |
| 6 |
3864900 |
CAP, Valve, spring |
| 7 |
3947880 |
KEY, Valve stem |
| 8 |
0460527 |
SEAL, Vale stem |
| 8 |
3835333 |
SEAL |
| 9 |
10007818 |
SHIELD |
| 10 |
3887125 |
VALVE SPRING & DAMPER |
| 10 |
3911068 |
VALVE SPRING & DAMPER |
| 11 |
5232670 |
VALVE LIFTER |
| 11 |
5232700 |
VALVE LIFTER |
| 11 |
5232720 |
VALVE LIFTER |
| 12 |
3704796 |
BOLT, Cylinder head, 1-/34" |
| 12 |
3734594 |
BOLT, Cylinder head 7/16-14 x 3-3/4inch |
| 12 |
3767468 |
BOLT, Cyl. hd., 7/16-14 x 3'' |
| 12 |
3877669 |
BOLT, Cylinder head short |
| 12 |
3879668 |
BOLT, Cylinder head, long |
| 13 |
3796243 |
PUSH ROD |
| 13 |
3946067 |
PUSH ROD, Intake |
| 13 |
3946069 |
PUSH ROD, Exhaust |
| 14 |
3974290 |
ARM, Valve rocker |
| 14 |
6258611 |
ARM, Valve rocker |
| 15 |
3744340 |
BALL, ROCKER ARM |
| 15 |
3959142 |
BALL, Rocker arm |
| 15 |
5232762 |
BALL, Rocker arm |
| 16 |
3744341 |
NUT, Coned, 3/8-24 |
| 16 |
3896648 |
NUT, Rocker arm |
| 17 |
0464677 |
VALVE COVER |
| 17 |
6269744 |
VALVE COVER, |
| 18 |
3877670 |
REINFORCEMENT |
| 19 |
5950740 |
Gasket This part replaces 0460578. |
| 20 |
0311545 |
ELBOW |
| 21 |
3853380 |
GASKET, Cylinder head This part replaces 0910089. |
| 21 |
6269973 |
GASKET, Cylinder head |
| 22 |
0979826 |
GASKET, Cylinder head |
| 22 |
3854400 |
SPARK PLUG, Champion RV15YC4 This part replaces 0979827. |
| 23 |
0850843 |
OIL FILL CAP, Bayonet type |
| 23 |
3835665 |
OIL CAP, 225 hp, bayonet type |
| 23 |
3980273 |
OIL CAP |
| 24 |
3852458 |
CLAMP, Oil drain tube This part replaces 0908924. |
| 25 |
0908276 |
CAP PLUG |
| 26 |
0312316 |
CAPSCREW, Mounting brkt |
| 28 |
3860038 |
GUIDE, Push rod |
| 0330848 |
0330848 |
ROTATOR, Exhaust valve |
| 1052289 |
1052289 |
SEALER, Manifold ends |
| 1052434 |
1052434 |
SEALER, Valve cover |
| 3947770 |
3947770 |
KEY |
| 6263794 |
6263794 |
ROATAOR, Exhaust valve |
