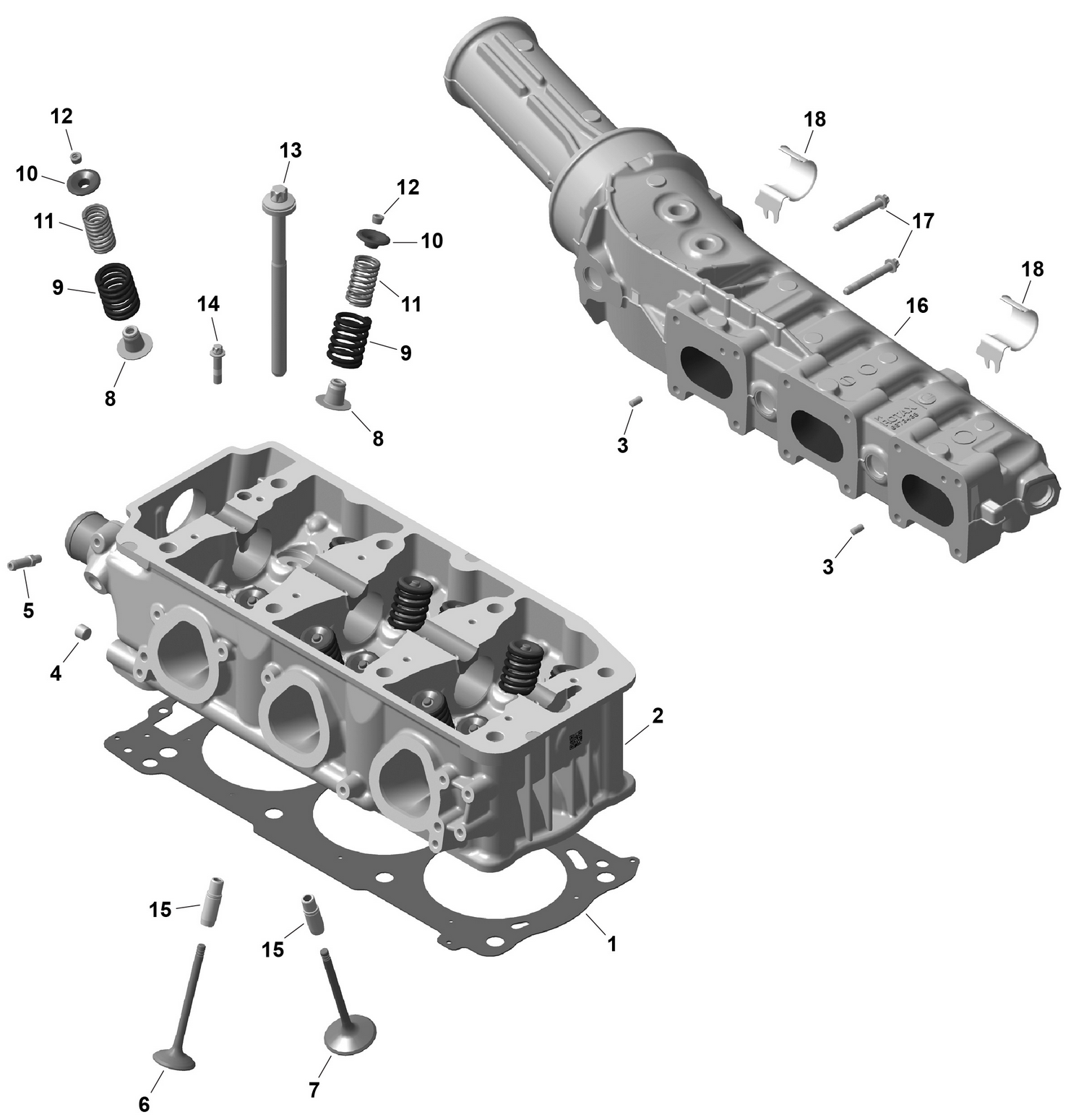

01- ROTAX - Cylinder Head
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 420929650 | Drive Pin 5 X 10 |
| 4 | 420641323 | Plug Screw M10 X 1 |
| 5 | 420924724 | Hose Nipple |
| 6 | 420254682 | Exhaust Valve, 31 mm |
| 7 | 420253163 | Intake Valve 38MM |
| 8 | 420630202 | Valve Steam Seal |
| 10 | XXX | Not Available As Spare Parts |
| 11 | 420838280 | Valve Spring Inside |
| 12 | 420253645 | Valve Cotter |
| 13 | 420641115 | Torx Flange Screw M11 X 147 |
| 14 | 420641238 | Torx Flange Screw M6 X 25 |
| 16 | 420673437 | Engine Exhaust Manifold This part replaces 420673436. |
| 17 | 420641198 | Torx Flange Screw M6 X 45 |
