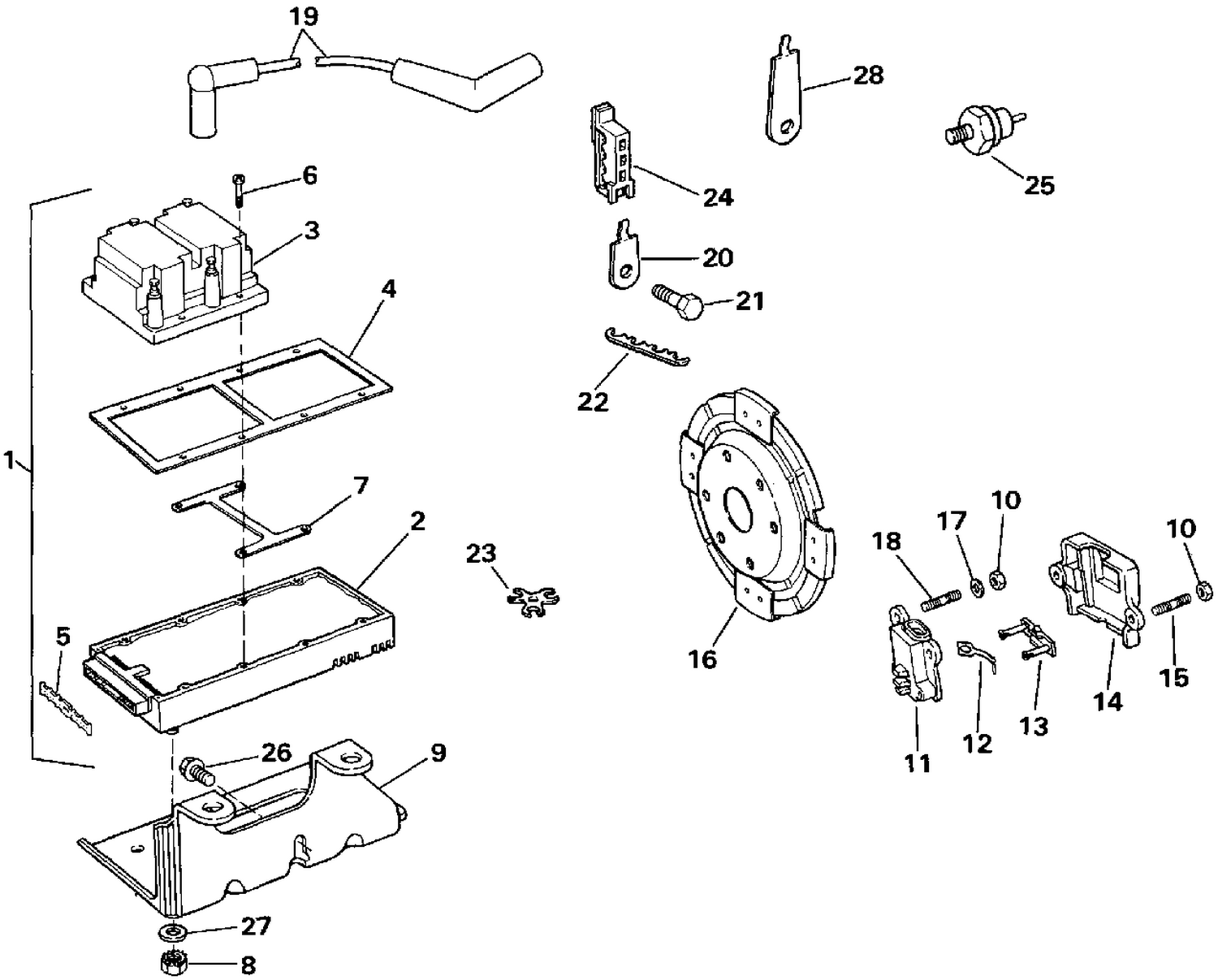

| Ref | Part Number | Description |
|---|
| 1 |
0986293 |
IGNITION MODULE & COILS |
| 1 |
0987059 |
IGNITION MODULE & COILS |
| 2 |
0914639 |
MODULE, Ignition |
| 2 |
0915155 |
MODULE, Ignition |
| 3 |
0914636 |
COIL, Ignition |
| 4 |
0914637 |
GASKET, Ignition module |
| 6 |
3853298 |
SCREW, Ignition module This part replaces 0914633. |
| 7 |
0914638 |
ADAPTER |
| 8 |
0311375 |
NUT |
| 9 |
0913779 |
BRACKET, Ignition module |
| 10 |
0311375 |
NUT |
| 11 |
3853990 |
SENSOR, Crankshaft This part replaces 0986564. |
| 12 |
3853259 |
SPRING, Sensor locator This part replaces 0914529. |
| 13 |
3853260 |
LOCATOR, Ignition sensor This part replaces 0914530. |
| 14 |
3852828 |
COVER, Sensor This part replaces 0913777. |
| 15 |
3853300 |
STUD, Sensor cover This part replaces 0914644. |
| 16 |
3852952 |
RING, Ignition timing This part replaces 0913999. |
| 18 |
3853300 |
STUD, Sensor cover This part replaces 0914644. |
| 19 |
0986111 |
LEAD, Cylinder #1 |
| 19 |
0986113 |
LEAD, Cylinder #2 & 3 |
| 19 |
0986114 |
LEAD, Cylinder #2 |
| 19 |
0986223 |
LEAD, Cylinder #7 |
| 19 |
0986224 |
LEAD, Cylinder #5 |
| 19 |
0986227 |
LEAD, Cylinder #4 |
| 20 |
3852827 |
BRACKET, Ignition leads This part replaces 0913772. |
| 21 |
3853325 |
SCREW, Clamp to engine This part replaces 0914761. |
| 21 |
3853389 |
SCREW, Bracket to engine This part replaces 0914995. |
| 22 |
3852491 |
RETAINER, 4 Wire This part replaces 0910230. |
| 23 |
3852492 |
RETAINER, 3 wire This part replaces 0910231. |
| 24 |
3852619 |
RETAINER This part replaces 0912850. |
| 25 |
3853956 |
SENSOR, Engine knock This part replaces 0986323. |
| 26 |
0341013 |
SCREW, Cover This part replaces 0908668. |
