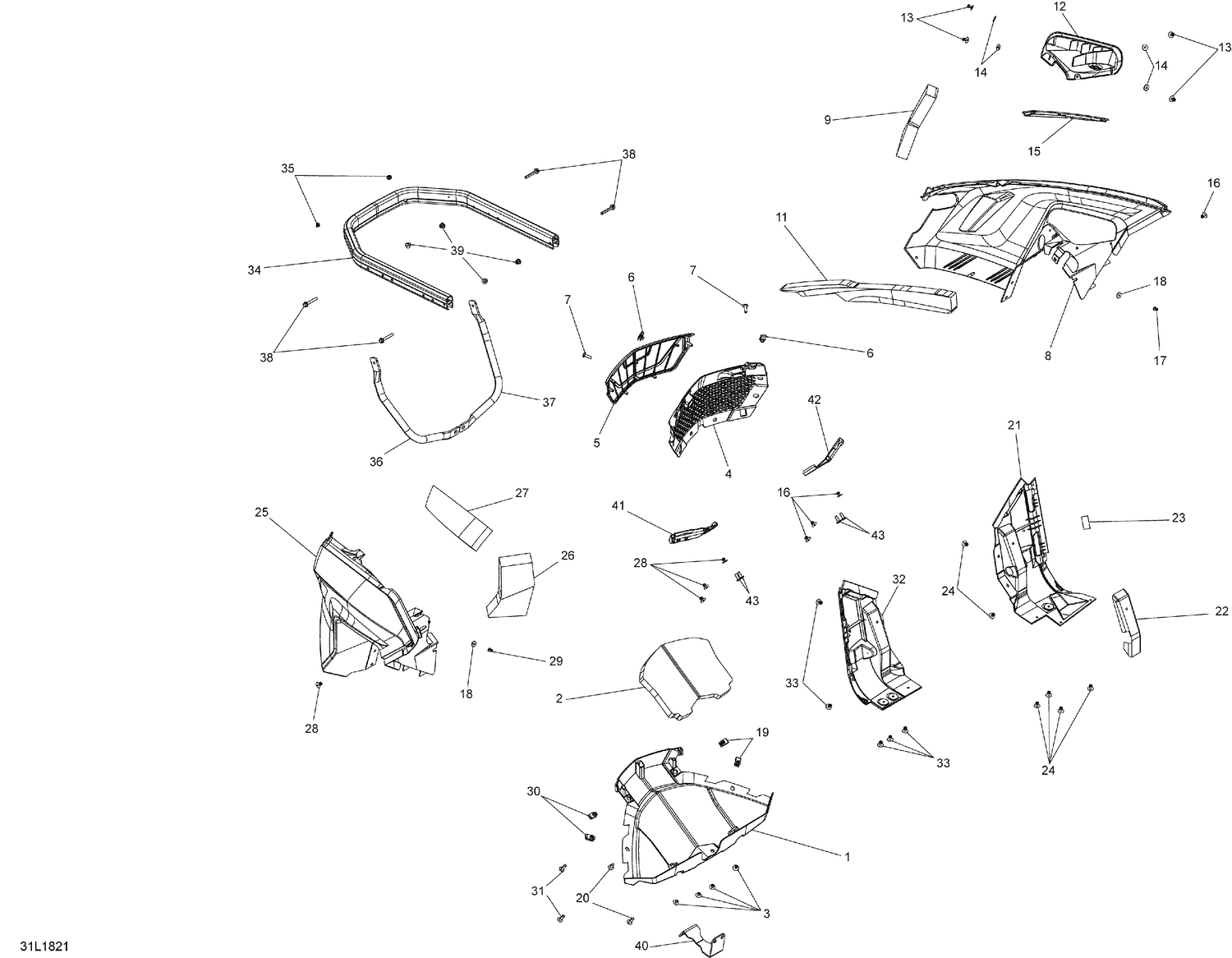

09- Bottom Pan Commander - 800R E-TEC
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502008006 | Black, Front Bottom Pan This part replaces 502007184. |
| 2 | 502007002 | Isolation |
| 3 | 293150103 | Pop Rivet 3/16 |
| 4 | 502007145 | Front Grill |
| 5 | 502007393 | Front grill with mesh |
| 6 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250000048. |
| 7 | 250000722 | Torx Truss Screw M6 x 20 |
| 12 | 517306982 | RH Bottom Pan Air Vent This part replaces 517306541. |
| 13 | 293150104 | Pop Rivet 3/16 |
| 14 | 250200025 | Washer M5 |
| 15 | 517305976 | RH Bottom Pan Grill |
| 16 | 293150104 | Pop Rivet 3/16 |
| 17 | 390402200 | Pop Rivet 3/16 |
| 18 | 234052450 | Flat Washer M5 |
| 19 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250000048. |
| 20 | 250000722 | Torx Truss Screw M6 x 20 |
| 22 | 502007038 | Reflective sheet |
| 23 | 44110 | Aluminum Foil |
| 24 | 293150104 | Pop Rivet 3/16 |
| 28 | 293150104 | Pop Rivet 3/16 |
| 29 | 390402200 | Pop Rivet 3/16 |
| 30 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250000048. |
| 31 | 250000722 | Torx Truss Screw M6 x 20 |
| 32 | 502008012 | LH Rear Bottom Pan This part replaces 502007827. |
| 33 | 293150104 | Pop Rivet 3/16 |
| 36 | 502007014 | LH Bumper Support Tube |
| 37 | 502007015 | RH Bumper Support Tube |
| 38 | 207664044 | Hex. Flange Screw M6 X 40 |
| 39 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 732610072 | Push | Nut 732610072 |
