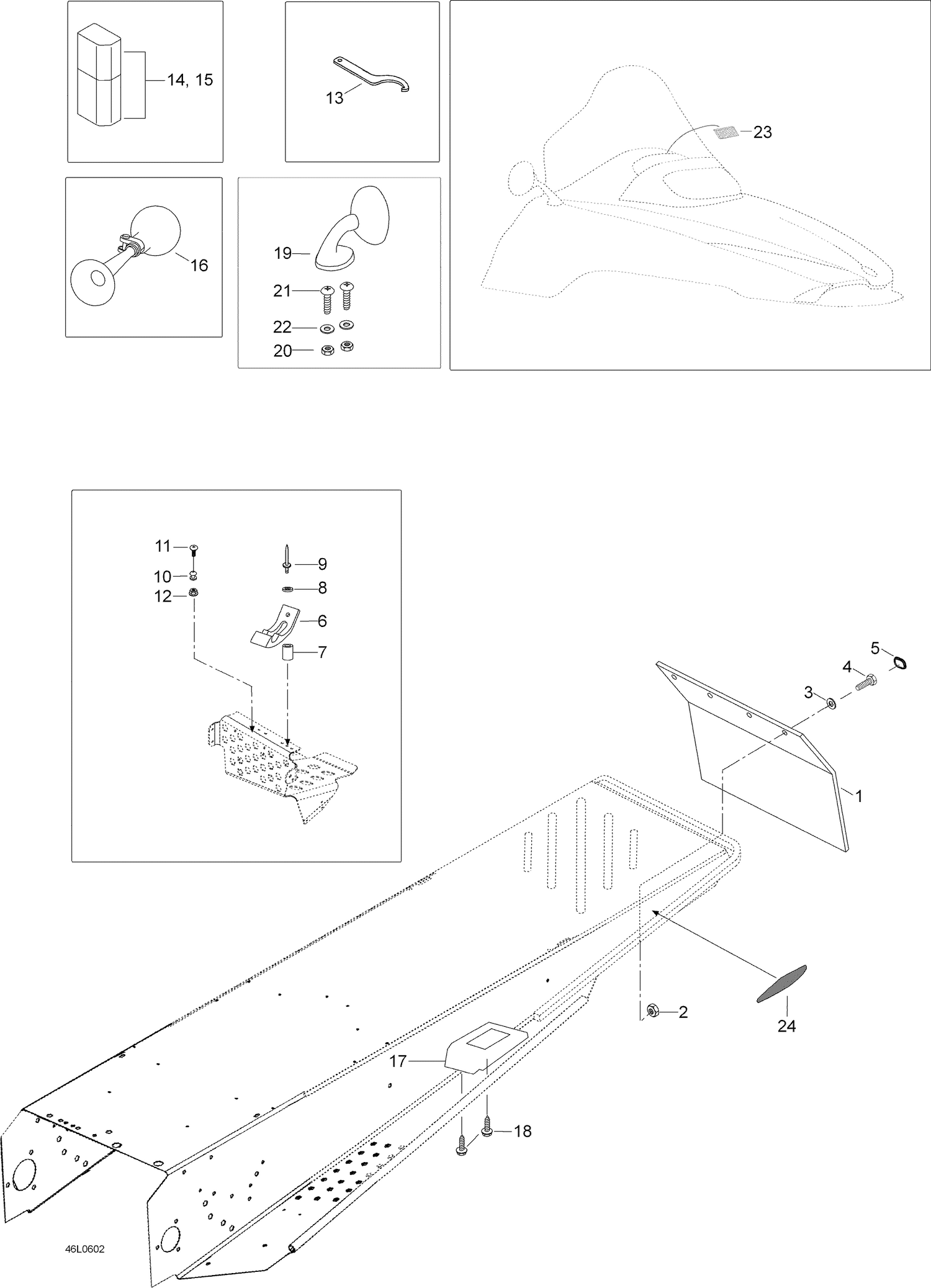

| Ref | Part Number | Description |
|---|
| 1 |
5246860 |
Snow quard |
| 2 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 3 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 4 |
40078 |
SCREW M6 x 22 DIN933m8.8Zne(1=10pcs - Call your local BRP dealership |
| 5 |
415073300 |
Cap |
| 6 |
531955 |
Latch |
| 7 |
543417 |
Sleeve |
| 8 |
543392 |
Washer |
| 9 |
36072 |
Rivet |
| 10 |
605449087 |
Counter roll |
| 11 |
40168 |
Screw M4 x 25 |
| 12 |
33008 |
Elastic stop nut M4 |
| 13 |
529000035 |
Wrench adjuster This part replaces 529032900. |
| 14 |
605350525 |
TOOL KIT - Call your local BRP dealership |
| 15 |
708200043 |
TOOLS BOX - Call your local BRP dealership This part replaces 572036310. |
| 16 |
549011291 |
Horn This part replaces 21003. |
| 17 |
572088700 |
R.H. GT SE Foot Rest |
| 17 |
572088800 |
L.H. GT SE Foot Rest |
| 18 |
40870 |
HEX. TAPING SCREW - Call your local BRP dealership |
| 19 |
414971910 |
RH MIRROR - Call your local BRP dealership |
| 19 |
414972010 |
LH MIRROR - Call your local BRP dealership |
| 20 |
33008 |
Elastic stop nut M4 |
| 21 |
40167 |
SLOT SCREW M4 x 16DIN 966m4.8 A4(1=10pcs - Call your local BRP dealership |
| 22 |
20001 |
Washer A4,3 DIN125 -St m Zne(1=10pcs) - Call your local BRP dealership |
| 23 |
21060 |
Reflector, bright |
