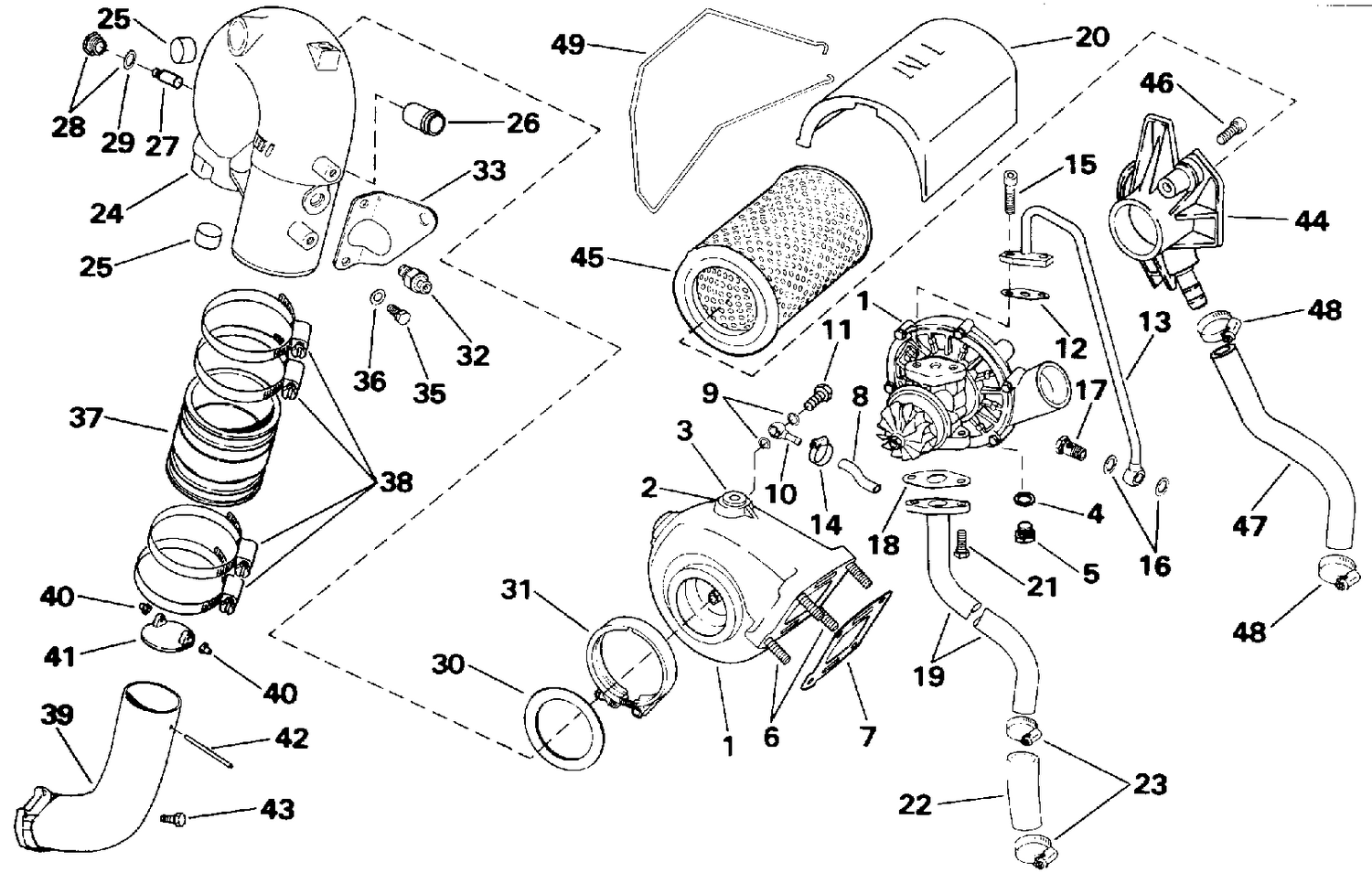

TURBOCHARGER, EXHAUST PIPING & AIR FILTER

TURBOCHARGER, EXHAUST PIPING & AIR FILTER

Parts (47)

RefPart NumberDescription
1 0987390 TURBOCHARGER ASSY.
2 0915483 SEAL, Oil drain
3 0915484 PLUG, Oil drain
4 0915567 SEAL, Banjo, fuel line
5 0915568 PLUG, Turbo housing, small
6 0915569 STUD, Turbo housing
7 0915570 GASKET, Turbocharger
8 0915488 CLAMP, Hose, boost pressure sender
9 0915529 SEAL, Banjo, turbo, coolant bleed
10 0915572 BANJO FITTING, For TC-bleed
11 0915863 BANJO BOLT, Turbo, coolant bleed
12 0915573 GASKET, Pipe, turbo oil supply
13 0915574 PIPE, Turbo oil supply
14 0915518 CLAMP, Hose, turbo charger bleed
15 0915860 BOLT, Cover heat exch., front
16 0915567 SEAL, Banjo, fuel line
17 0915640 BANJO BOLT, Fuel line
18 0915576 GASKET, Turbo oil return
19 0915577 PIPE, Turbo oil return
20 0915591 COVER, Air filter
21 0915467 BOLT, Elbow support
22 0915578 HOSE, Turbo oil return pipe
23 0915579 CLAMP, Hose, turbo oil return
24 0915580 EXHAUST ELBOW
25 0915581 CORE PLUG, Exhaust elbow
26 0915582 PIPE, Water inlet, exhaust elbow
27 0915523 ZINC ANODE
28 0915525 PLUG, Zinc anode
29 0915524 SEAL, Plug, zinc anode
30 0915583 SEAL, Exhaust elbow
31 0915584 CLAMP, Exhaust elbow
32 3854711 SWITCH, Water temperature This part replaces 0986888.
33 0915585 SUPPORT BRACKET, Exhaust elbow
35 0915467 BOLT, Elbow support
36 0915501 WASHER, Block
37 3852741 HOSE, Exhaust This part replaces 0913591.
38 3852604 CLAMP, Exhaust This part replaces 0981323.
39 0987132 EXHAUST PIPE
40 3853566 BUSHING, Pin This part replaces 0915862.
41 0985749 EXHAUST SEAL
42 0913663 PIN EXHAUST FLAP
43 3855472 SCREW, Pipe to gimbal This part replaces 0913883.
44 0987392 BASE ASSY., Air filter
45 0915298 AIR FILTER CARTRIDGE
46 0915618 BOLT, Solenoid assy. This part replaces 0915586.
47 0915587 HOSE, Demister to air filter
48 0915588 CLAMP, Hose, demister to air filter
