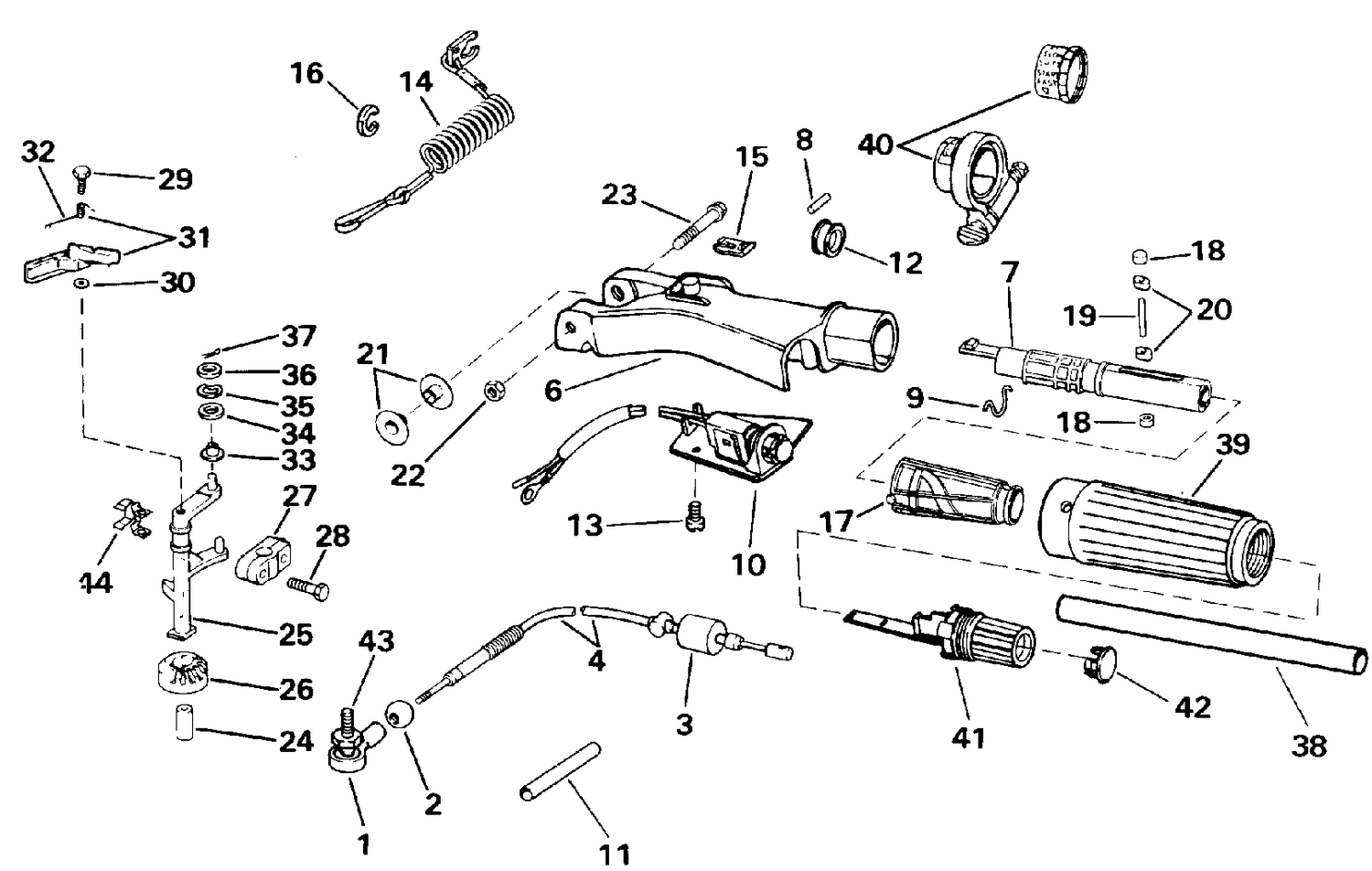

| Ref | Part Number | Description |
|---|
| 1 |
0332947 |
CONNECTOR, Throttle cable |
| 2 |
0331194 |
TRUNNION |
| 4 |
0395911 |
THROTTLE CABLE ASSY. |
| 6 |
0439569 |
STEERING HANDLE ASSY. This part replaces 0434123. |
| 10 |
0585133 |
INTERRUPTEUR D'ARRÊT This part replaces 0584470. |
| 12 |
0316132 |
GORMMET, Valve |
| 16 |
0431808 |
CLIP & INST, SHEET ASSY. |
| 17 |
0329882 |
GRIP&HELIX AY |
| 21 |
0335426 |
BUSHING, Handle to bracket |
| 23 |
0324602 |
VIS, barre |
| 24 |
0321997 |
PIN, Control shaft lever |
| 25 |
0331192 |
SHAFT, Vertical control |
| 26 |
0319035 |
GEAR, Vertical control shaft |
| 27 |
0327588 |
BEARING CLAMP, Control shaft |
| 28 |
0908159 |
SCREW, Bearing clamp |
| 29 |
0323700 |
SCREW, Pawl to control shaft |
| 31 |
0391105 |
STARTER PAWL & SPRING |
| 32 |
0325913 |
SPRING |
| 33 |
0307841 |
BUSHING, Control lever |
| 34 |
0310540 |
RONDELLE, arbre de verrouillage de relevage, extérieur |
| 35 |
0204757 |
BOW WASHER |
| 36 |
0306358 |
FLAT WASHER, Helm mounting |
| 38 |
0512918 |
SLEEVE |
| 39 |
0433657 |
GRIP ASSY |
| 43 |
0332946 |
SCREW, Ball joint |
