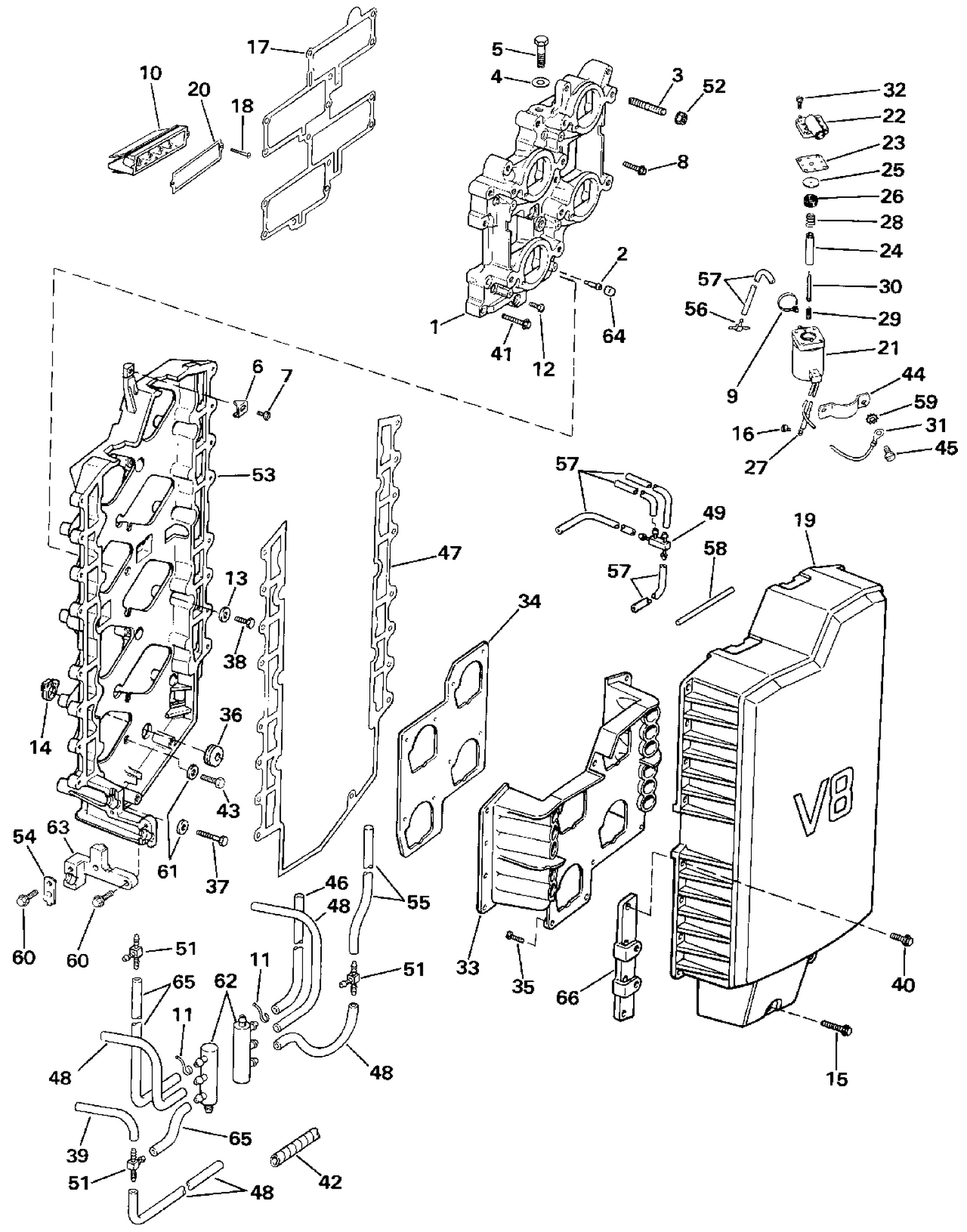

| Ref | Part Number | Description |
|---|
| 1 |
0397497 |
INTAKE MANIFOLD ASSY. |
| 3 |
0310872 |
STUD |
| 5 |
0347338 |
SCREW, Cam to C/C This part replaces 0332353. |
| 6 |
0331153 |
TIMING POINTER, Manifold |
| 7 |
0328696 |
SCREEN, Ground lead |
| 10 |
0397336 |
LEAF PLATE ASSY. |
| 11 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 15 |
0331102 |
SCREW, Coil to block |
| 16 |
0329182 |
VIS, borne |
| 17 |
0328622 |
GASKET, Manifold to crankcase |
| 18 |
0332265 |
SCREW, Cover to base, long |
| 19 |
0329988 |
COVER, Air silencer |
| 20 |
0332266 |
GASKET, Leaf plate |
| 21 |
5007356 |
Kit Ay This part replaces 0397909. |
| 22 |
0511807 |
COVER&GASKET AY |
| 23 |
0333448 |
GASKET |
| 33 |
0339109 |
BAFFLE, Air silencer cover This part replaces 0331097. |
| 34 |
0331098 |
SEAL, Baffle to carb |
| 37 |
0314610 |
SCREW |
| 39 |
0329695 |
HOSE |
| 40 |
0909533 |
SCREW, Pressure relief valve cover |
| 41 |
0307471 |
SCREW |
| 41 |
0312906 |
SCREW, Long |
| 42 |
0333872 |
SPIRAL TUBE, Fuel hoses |
| 43 |
0322831 |
SCREW |
| 44 |
0330118 |
CLAMP |
| 46 |
0333386 |
HOSE, Cylinder block vent |
| 47 |
0331696 |
GASKET, Cover |
| 48 |
HOSE, |
Carburetor feed lines |
| 49 |
0325564 |
CONNECTOR, Drain hose |
| 50 |
0333387 |
FLEXIBLE, soupape de retenue vers raccord inférieur |
| 52 |
0316355 |
BUT, Carburetor mounting |
| 53 |
0334768 |
BASE, Air silencer This part replaces 0332570. |
| 54 |
0329271 |
CLAMP, Trunnion cable |
| 55 |
0332728 |
HOSE, Tee to # 3 carb. |
| 56 |
0325569 |
T, amorçage |
| 57 |
HOSE, |
Primer system |
| 58 |
SEAL, |
Cover to base |
| 60 |
0909533 |
SCREW, Pressure relief valve cover |
| 62 |
5004610 |
FITTING, Fuel manifold This part replaces 0395540. |
| 63 |
0912131 |
BRACKET, Anchor block |
| 64 |
0322892 |
CAP, Adapter elbow |
| 65 |
0333387 |
FLEXIBLE, soupape de retenue vers raccord inférieur |
