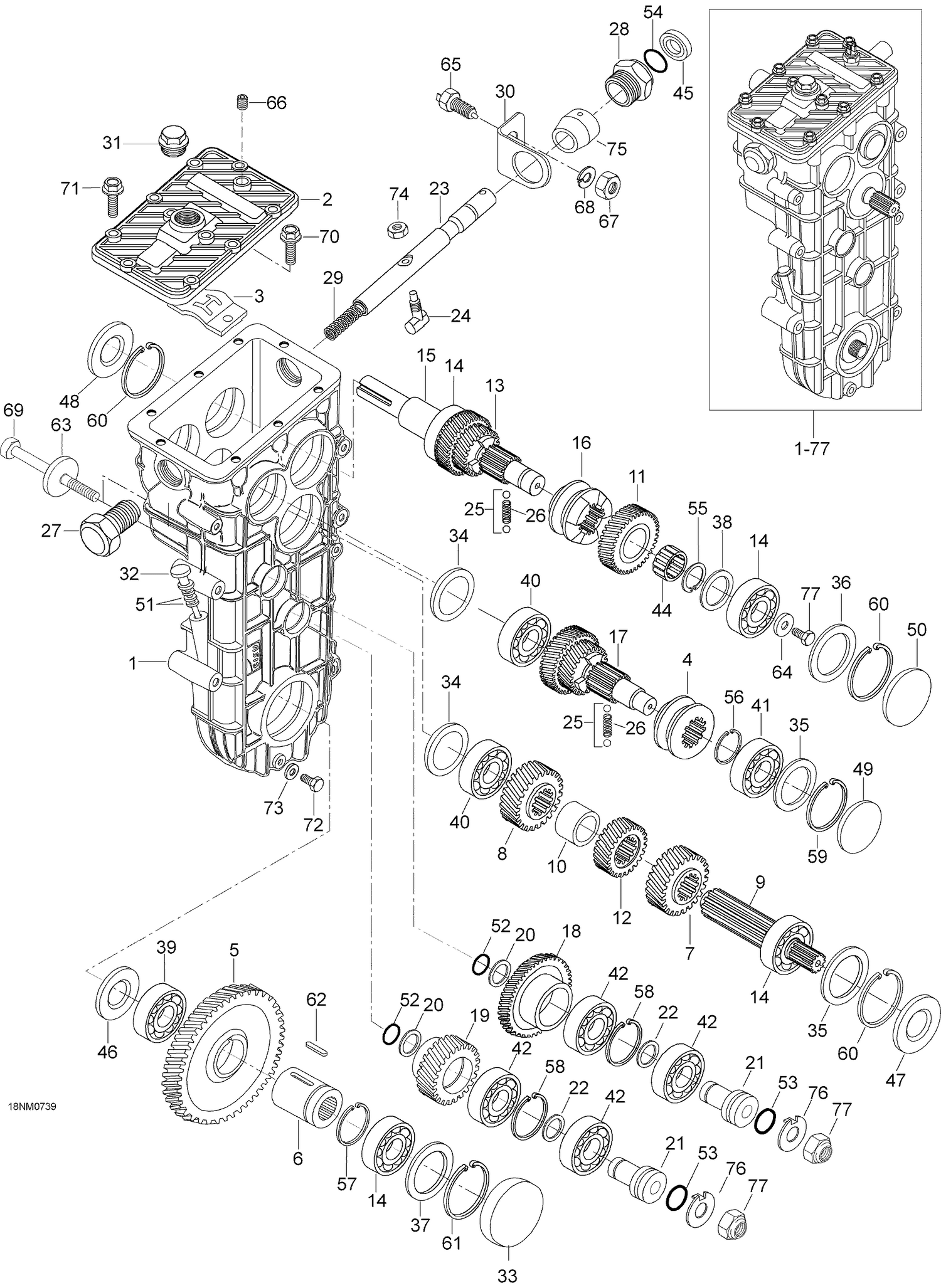

| Ref | Part Number | Description |
|---|
| 1 |
875156138 |
HOUSING - Call your local BRP dealership |
| 2 |
875156043 |
Lock - Call your local BRP dealership |
| 3 |
875156111 |
H-SCHEME - Call your local BRP dealership |
| 4 |
875156005 |
Clutch wheel (Two side) - Call your local BRP dealership This part replaces 875156131. |
| 5 |
875156057 |
GEAR - Call your local BRP dealership |
| 6 |
875156218 |
SHAFT - Call your local BRP dealership |
| 7 |
875156136 |
GEAR Z=27 - Call your local BRP dealership |
| 8 |
875156054 |
Wheel Z=34 L.H. - Call your local BRP dealership |
| 9 |
875156069 |
SHAFT - Call your local BRP dealership |
| 10 |
875156088 |
Sleeve |
| 11 |
875156135 |
SPROCKET (29 TOOTH) - Call your local BRP dealership |
| 12 |
875156060 |
Wheel Z=24 - Call your local BRP dealership |
| 14 |
610063050 |
BEARING 6305 - Call your local BRP dealership |
| 15 |
875156153 |
Sleeve |
| 16 |
875156005 |
Clutch wheel (Two side) - Call your local BRP dealership |
| 17 |
875156068 |
Shaft - Call your local BRP dealership |
| 18 |
875156059 |
Wheel Z=33 L.H. - Call your local BRP dealership |
| 19 |
875156058 |
Wheel Z=26 R.H. - Call your local BRP dealership |
| 20 |
875156328 |
Washer - Call your local BRP dealership |
| 21 |
875156341 |
Shaft |
| 22 |
875156342 |
Shim |
| 23 |
875156072 |
Shaft - Call your local BRP dealership |
| 24 |
875156073 |
Pin - Call your local BRP dealership |
| 25 |
616810064 |
Ball |
| 26 |
875156105 |
Spring - Call your local BRP dealership |
| 27 |
875156076 |
SLEEVE - Call your local BRP dealership |
| 28 |
875156077 |
SLEEVE - Call your local BRP dealership |
| 29 |
875156078 |
Spring |
| 30 |
875156242 |
Bracket |
| 31 |
875156098 |
Oilplug - Call your local BRP dealership |
| 32 |
875156278 |
DIPSTICK - Call your local BRP dealership |
| 33 |
614100068 |
Plug - Call your local BRP dealership |
| 34 |
875152953 |
Plug |
| 35 |
617395568 |
ADJUSTMENT SHIM - Call your local BRP dealership |
| 36 |
617395065 |
Shim 0,3mm - Call your local BRP dealership |
| 37 |
617395568 |
ADJUSTMENT SHIM - Call your local BRP dealership |
| 38 |
616092542 |
Axial washer |
| 39 |
6008 |
Bearing - Call your local BRP dealership |
| 40 |
610063044G |
Bearing |
| 41 |
6304 |
Bearing - Call your local BRP dealership This part replaces 610063040. |
| 42 |
612030303 |
BEARING - Call your local BRP dealership |
| 43 |
610060084 |
BALL BEARING - Call your local BRP dealership |
| 44 |
611002529 |
Needle bearing |
| 45 |
614102031 |
Oil seal - Call your local BRP dealership |
| 46 |
614102852 |
Shaft seal |
| 47 |
614102562 |
Shaft seal |
| 48 |
614103562 |
Shaft seal |
| 49 |
614100052 |
Plug |
| 50 |
614100062 |
PLUG - Call your local BRP dealership |
| 51 |
614600725 |
O-ring - Call your local BRP dealership |
| 52 |
614601224 |
O-RING - Call your local BRP dealership |
| 53 |
614602431 |
O-ring |
| 54 |
614601523 |
O-ring |
| 55 |
617450025 |
CIRCLIP - Call your local BRP dealership |
| 56 |
617450028 |
CIRCLIP - Call your local BRP dealership |
| 57 |
617300040 |
Lock ring |
| 58 |
617330047 |
Circlip - Call your local BRP dealership |
| 59 |
617330052G |
Lock ring |
| 60 |
617330062 |
CIRCLIP - Call your local BRP dealership |
| 61 |
617330068 |
Snapring - Call your local BRP dealership |
| 62 |
603345080 |
Key |
| 63 |
875156342 |
Washer |
| 64 |
875156112 |
Washer |
| 65 |
654100225 |
Switch - Call your local BRP dealership |
| 66 |
640025012S |
Plug - Call your local BRP dealership |
| 67 |
33021 |
Nut M12 |
| 68 |
20016 |
Spring washer |
| 69 |
875156345 |
Screw M8 x 80 |
| 70 |
40337 |
Screw M8 x 16 |
| 71 |
537001402 |
Screw 80 x 25 - Call your local BRP dealership |
| 72 |
528801342 |
HEX. SCREW M8 X 10 - Call your local BRP dealership |
| 73 |
615580812 |
Gasket-ring - Call your local BRP dealership |
| 74 |
510611002 |
NUT M10 - Call your local BRP dealership |
| 75 |
5446699 |
SLEEVE - Call your local BRP dealership |
| 76 |
875156327 |
Washer - Call your local BRP dealership |
| 77 |
510600802 |
NUT M10 - Call your local BRP dealership |
