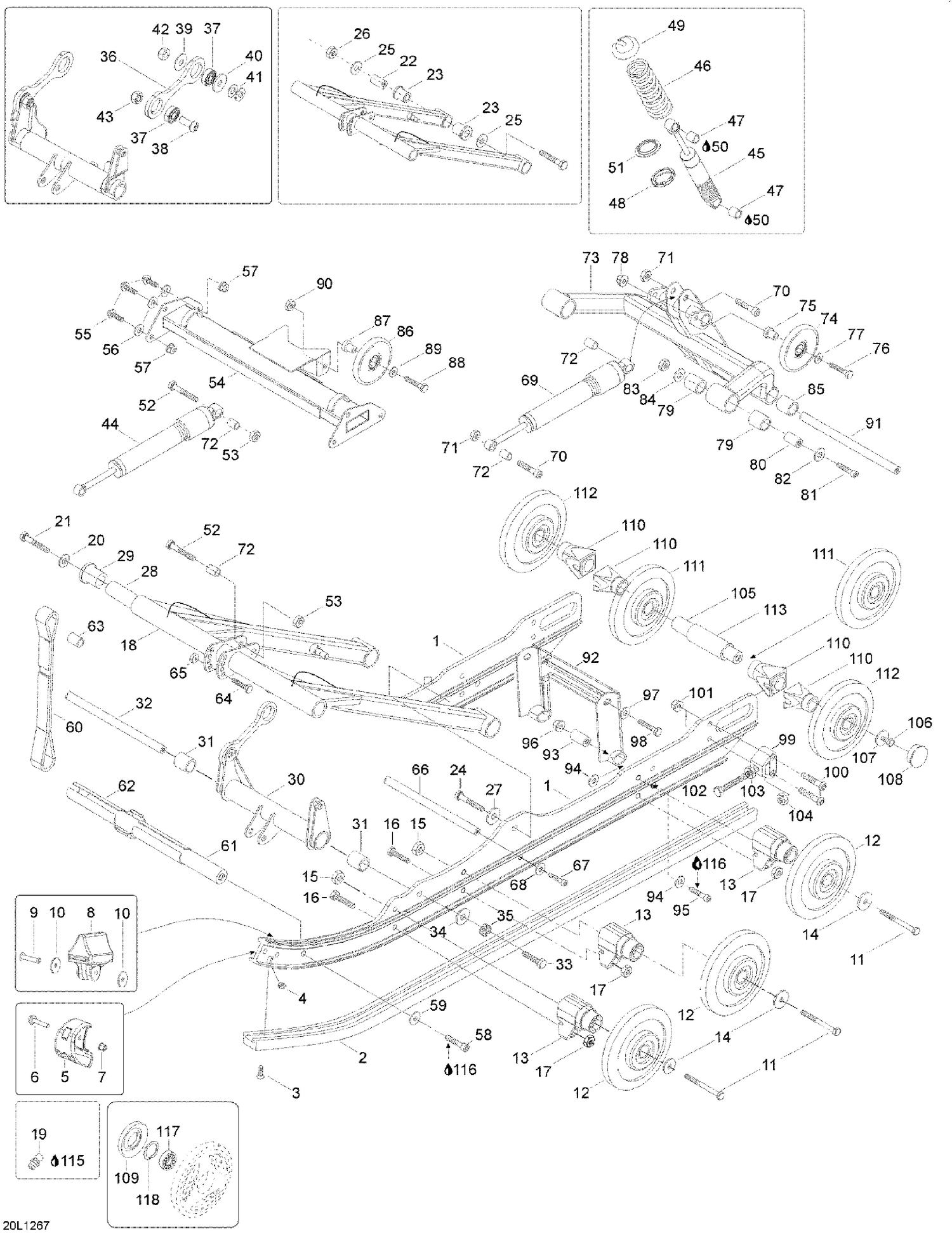

08- Rear Suspension

08- Rear Suspension

Parts (116)

RefPart NumberDescription
1 503191981 L.H/R.H. Runner
2 503192191 Slide Shoe
3 208562531 Phillips Screw M6 X 25
4 232561434 Elastic Stop Nut M6
5 503192299 Runner Protector
6 207652544 Hex. Flange Screw M5 X 25
7 233251434 Flanged Elastic Nut M5
8 503192106 Rubber Stopper
9 293150142 Pop Rivet 3/16"
10 503191273 Washer
11 250001027 Hex. Flanged Screw M6 X 70 This part replaces 250000475.
12 503192794 Wheel 141mm This part replaces 503191151.
13 503193894 Casted Support This part replaces 503193082.
14 503191820 Wheel Cup M6
15 233261414 Hex. Flange Elastic Nut M6 x 1.0
16 250000522 Hex. Flanged screw M6 x 25
17 233261414 Hex. Flange Elastic Nut M6 x 1.0
18 503192557 Front Arm
19 34011 Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership
20 250200131 Washer Spring Conical M12
21 250000555 Hex. Cap Screw M12 x 60
22 605354157 Etupukin ala-akseli
23 31065 Upper Cushion rear arm
24 40021 Hex. screw M10 x 70
25 605355801 Korialuslevy
26 33012 Laippalukkomutteri M10
27 503183300 Aluslevy M10, karkaistu
28 503192046 Shaft upper
29 31024 Lower Cushion rear arm
30 503192518 Front Arm weld
31 31024 Lower Cushion rear arm
32 605355800 Shaft front lower
33 205505547 Socket head screw M10 x 55
34 512056700 Aluslevy, karkaistu M10
35 20068 Lock Washer D10 (nord-lock)(1=10pcs
36 605254159 Etuvivun välitanko
37 605631003 Bearing 6000-2RS1
38 205402546 Socket Screw BN.HD.ISO.7380
39 25004 Cup Spring
40 234002600 Flat Washer 10 mm, Stainless
41 234001410 Flat Washer 10 mm
42 233401414 Lock Spring Nut M10
43 232500416 Elastic Stop Nut M10
45 503191863 Shock, front arm
45 503193041 Shock, rear arm (cal.503193041)
46 503192356 Spring, Rear Arm 65Nm. 280mm.
46 605625010 Spring, Front Arm 60Nm. 239mm.
47 31094 Cushion
48 230078 Adjusting Cam
49 230076 Fjäder stoppare Främ dä,päre
50 32161 Laakerilukite Loctite
51 230049 Spring guide Shock 36mm
52 207004544 Hex. Screw M10 X 45
53 232500416 Elastic Stop Nut M10
54 503192566 Middle Beam
55 250000556 Hex. Cap Screw M8 x 25
56 503193095 WASHER A8.4X20X1.25 HV140 BLACK ZINC - Call your local BRP dealership
57 233281414 Hex. Flange Elastic Nut M8
58 205505044 Socket Head Screw M10 x 50
59 20005 WASHER M10 - Call your local BRP dealership
60 605355116 Courroie De Limitation
61 605353958 Akseli
62 605355096 Retainer for stopper strap
63 605455335 Sleeve
64 207084544 Hex. Screw M8 X 45
65 232581414 Hex. Elastic Stop Nut M8
66 5343471 Eturemmin akseli
67 205505044 Socket Head Screw M10 x 50
68 234001410 Flat Washer 10 mm
70 40134 Screw Socket HD.DIN 912
71 232500416 Elastic Stop Nut M10
72 5446652 Bushing
73 503192524 Rear Arm Weld
74 503192675 Idler wheel 133/black
75 605454461 Sleeve
76 207084544 Hex. Screw M8 X 45
77 20077 M8 Washer
78 233281414 Hex. Flange Elastic Nut M8
79 31065 Upper Cushion rear arm
80 605354157 Etupukin ala-akseli
81 250000560 Socket Head Screw M10 x 65
82 503191926 Washer
83 232500416 Elastic Stop Nut M10
84 605355801 Korialuslevy
85 31024 Lower Cushion rear arm
86 572043500 Idler Wheel
87 605454167 Sleeve
88 207083544 Hex. Screw M8 X 35
89 20077 M8 Washer
90 232581414 Hex. Elastic Stop Nut M8
91 605355118 Akseli
92 503192571 Rear Swing
93 503192341 Shaft, Rear Swing
94 234001410 Flat Washer 10 mm
95 205006044 Socket Head Screw M10 x 60
96 233201414 Hex. Flanged Elastic Nut M10
97 234001410 Flat Washer 10 mm
98 207204044 Hex Cap Screw Din.931 S.grip
99 5341633 Tensioner housing
100 205484546 Socket Head Screw M8 X 45
101 233281414 Hex. Flange Elastic Nut M8
102 230100044 HEX. SCREW M10 X 100 - Call your local BRP dealership
103 232006414 Hex. Nut M10 X 1.5
104 232500416 Elastic Stop Nut M10
105 503190429 Rear Axle
106 207303544 Hex. Screw M10 x 35 (Scotch Grip)
107 503190439 Washer
108 570063600 Bearing protector
109 503190434 Labyrinth Seal
110 503190428 Rear Wheel Spacer
111 503192140 Black, Wheel Ass'y, 165 mm
112 503192128 Wheel 165, Black
113 503191263 Rear Spacer
115 293550033 SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership
116 293800005 Loctite 271 (10 ml)
117 293350115 Ball Bearing This part replaces 293350055.
