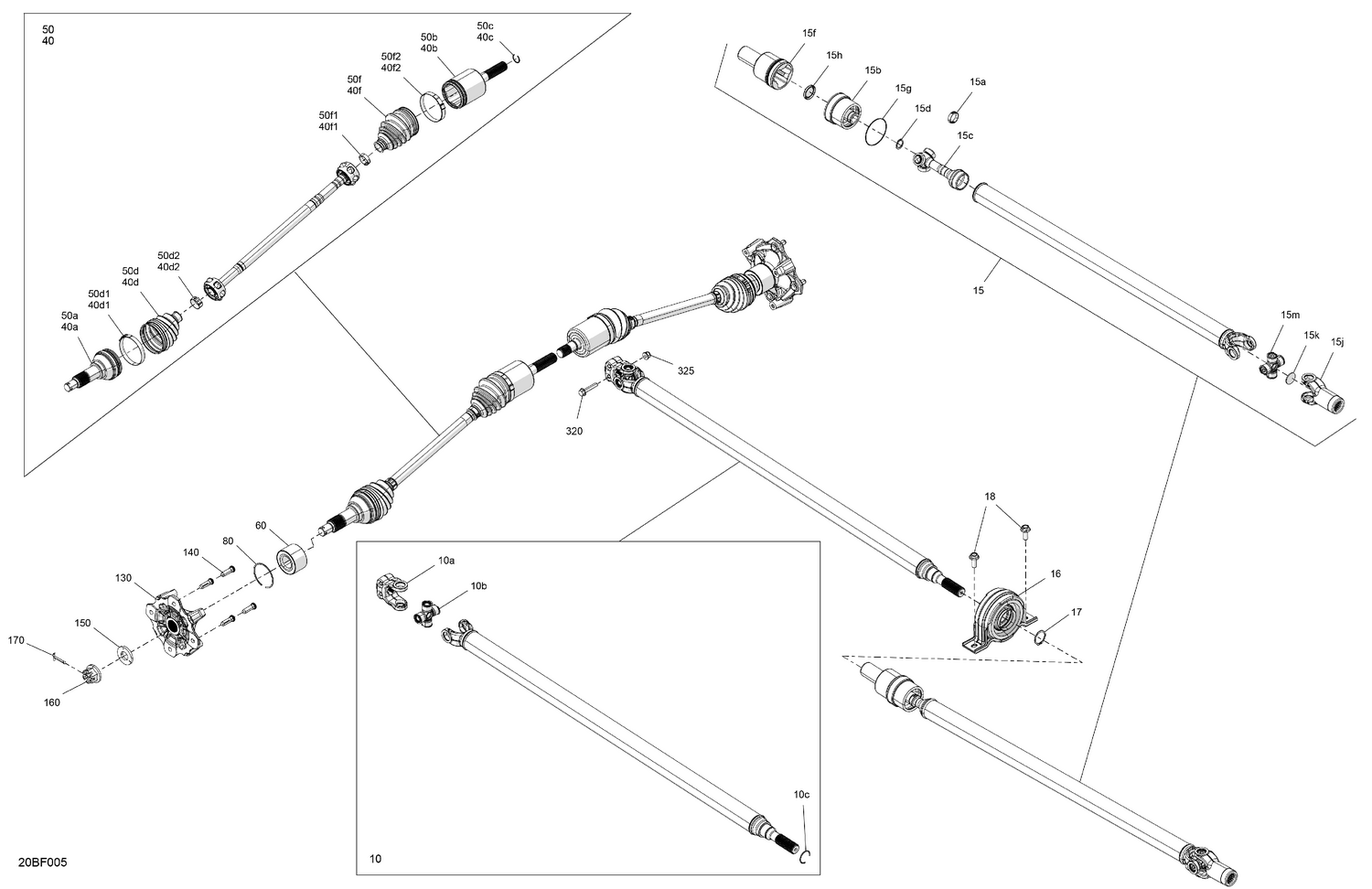

04- Drive - Front - Common Parts
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900938 | Connecting Yoke 18Th |
| 10c | 715900945 | Snap Ring |
| 15a | 715900950 | Large Oetiker Clamp |
| 15b | 219800426 | Dust cover |
| 15c | 219800433 | Three Pin Joint |
| 15d | 219800427 | Circlip |
| 15f | 715900949 | Joint |
| 15g | 219800429 | O-Ring |
| 15h | 715900948 | Cover |
| 15j | 715900947 | Slip Yoke |
| 15k | 715900946 | Cover |
| 15m | 715900911 | Universal Joint Ass'y |
| 16 | 705403522 | Ball Bearing Ass'y |
| 17 | 293370098 | Snap Ring |
| 18 | 207502046 | Hex. Flange Screw M10 X 20 |
| 40a | 715900440 | JOINT_CV EXT - Call your local BRP dealership |
| 40b | 715900688 | RH Plunging Joint |
| 40c | 705401349 | Circlip Joint |
| 40d1 | 715900282 | Oetiker Clamp |
| 40d2 | 715900283 | Oetiker Clamp, Small |
| 40f1 | 715900261 | Oetiker Clamp, Small |
| 40f2 | 715900262 | Oetiker Clamp, Large |
| 50a | 715900440 | JOINT_CV EXT - Call your local BRP dealership |
| 50b | 715900689 | LH Plunging Joint |
| 50c | 705401349 | Circlip Joint |
| 50d1 | 715900282 | Oetiker Clamp |
| 50d2 | 715900283 | Oetiker Clamp, Small |
| 50f1 | 715900261 | Oetiker Clamp, Small |
| 50f2 | 715900262 | Oetiker Clamp, Large |
| 60 | 293350150 | Ball Bearing |
| 80 | 293370019 | Circlip |
| 130 | 705503852 | Machined Wheel Hub |
| 140 | 250300055 | Wheel Stud M10 X 1.25 |
| 150 | 250200170 | Conical Spring Washer M20 |
| 160 | 250100193 | Castle Nut M20 |
| 170 | 250400084 | Cotter Pin |
| 320 | 250001050 | Hex. Flange Screw M8 X 42 |
