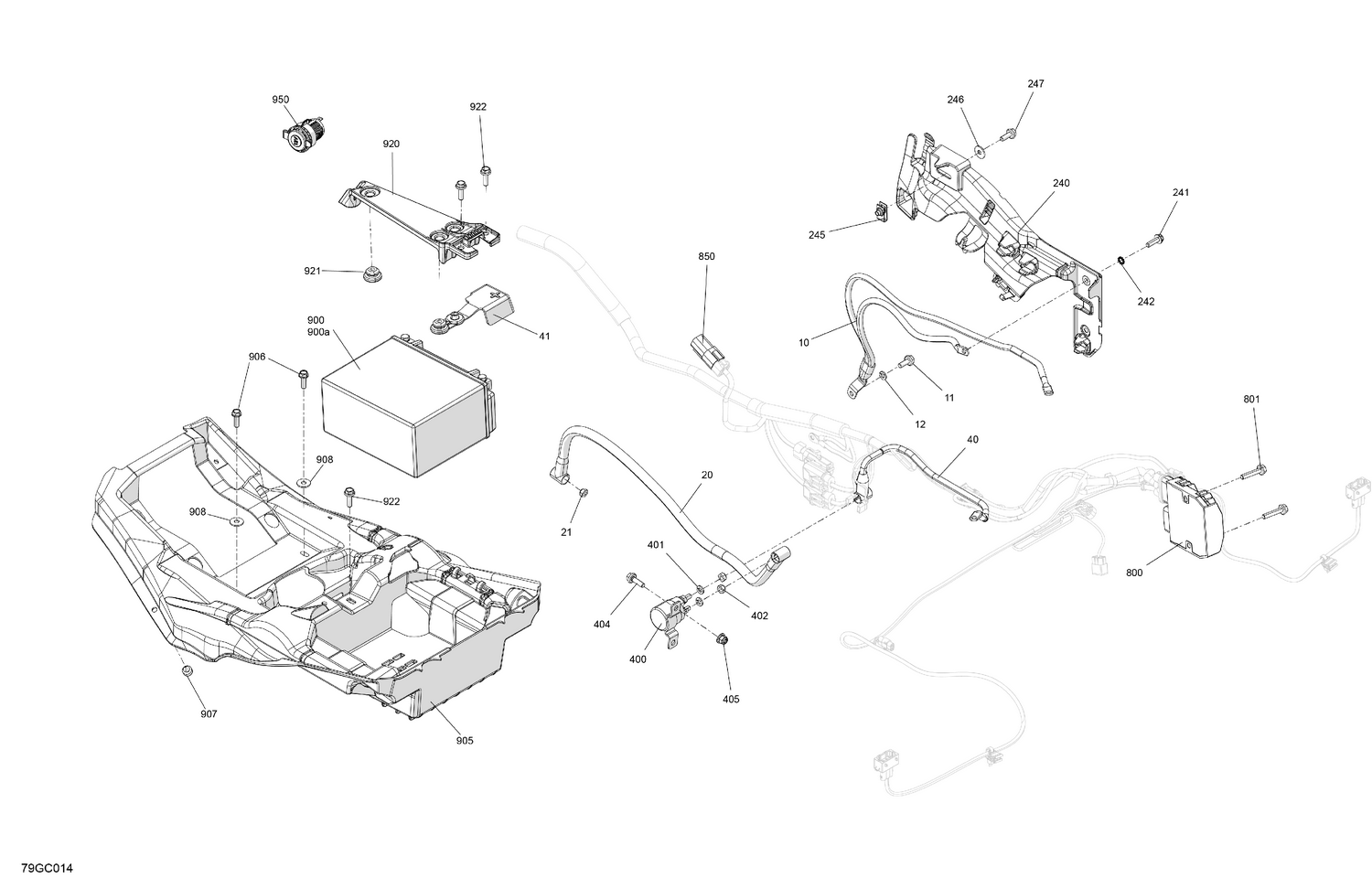

08- Electric - Rear Section
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 710004380 | Ground Cable |
| 11 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 12 | 234161601 | Lock Washer Helical M6 |
| 20 | 710004381 | Positive Cable |
| 21 | 232561434 | Elastic Stop Nut M6 |
| 40 | 710004376 | Positive Cable |
| 41 | 710006729 | Battery Cable Cap |
| 240 | 710008796 | Cable Support |
| 241 | 210262040 | Hex. Flange Screw M6 X 20 |
| 242 | 234461608 | External Serrated Lock Washer 6 mm |
| 245 | 250100198 | Panel Nut M6 X 1.0 |
| 246 | 234062410 | Flat Washer 6 mm |
| 247 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 400 | 710007777 | Starter Relay |
| 401 | 234161601 | Lock Washer Helical M6 |
| 402 | 232561434 | Elastic Stop Nut M6 |
| 404 | 207662054 | Hex. Flange Screw M6 X 20 |
| 405 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 800 | 710010539 | Voltage Regulator This part replaces 710005569. |
| 801 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 850 | 710003006 | Housing |
| 900a | 250000282 | Battery Bolt Kit |
| 905 | 710008370 | Battery Support |
| 906 | 210262050 | Hexagonal Head Screw |
| 907 | 293830005 | Rubber Bumper |
| 908 | 234062670 | Stainless Steel Flat Washer |
| 920 | 710009129 | Retaining Plate |
| 921 | 705014429 | Rubber Stopper |
| 922 | 207662054 | Hex. Flange Screw M6 X 20 |
