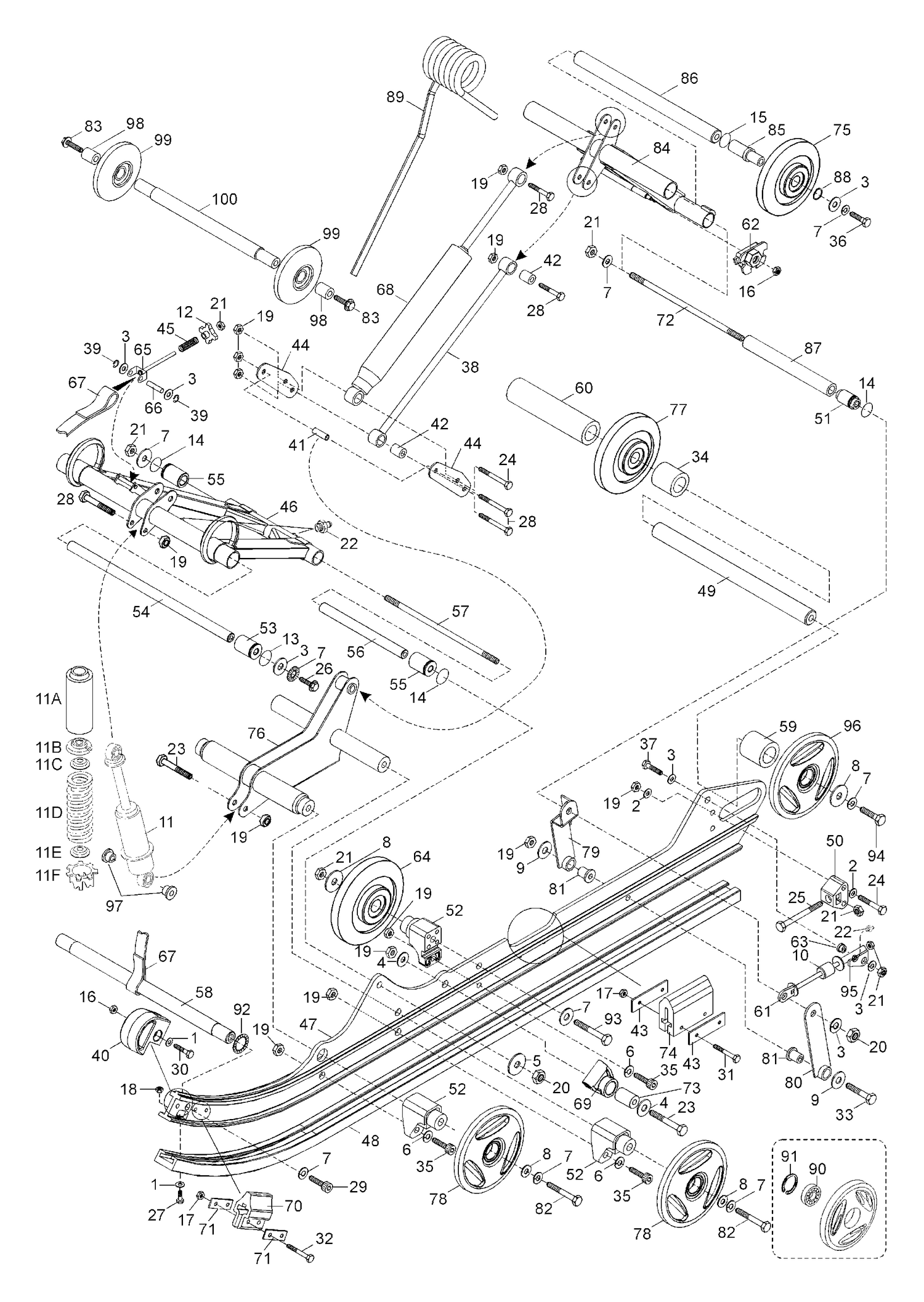

08- Rear Suspension
Parts (110)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 20003 | Washer |
| 2 | 234081410 | Flat Washer 8 mm This part replaces 20004. |
| 3 | 20005 | WASHER M10 - Call your local BRP dealership |
| 4 | 234082410 | Flat Washer 8 mm This part replaces 20010. |
| 5 | 512056700 | Lock waher |
| 6 | 20014 | Lock washer |
| 7 | 20068 | Lock washer |
| 8 | 20023 | Washer |
| 9 | 20078 | Washer |
| 10 | 5442335 | Rubber Stopper |
| 11 | 23226 | Schok front |
| 11A | 503193663 | Protector This part replaces 503188930. |
| 11B | 706200881 | Spring Stopper This part replaces 503140600. |
| 11C | 706200785 | Cap This part replaces 503141600. |
| 11D | 415039600 | Spring |
| 11E | 23177001 | Plastic protector sleeve |
| 11F | 23176001 | Preload adjuster cam |
| 12 | 572034000 | ADJUSTER KNOB - Call your local BRP dealership |
| 13 | 28404 | O-ring |
| 14 | 28406 | O-ring |
| 15 | 28405 | O-ring |
| 16 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 17 | 33009 | Nut elastic M5 |
| 18 | 33010 | Lock Nut M6 (1=10Pcs) |
| 19 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 20 | 33030 | Lock nut M10 |
| 21 | 33012 | Nut elastic M10 |
| 22 | 34011 | Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 23 | 40009 | Screw M8x50 |
| 24 | 207084544 | Hex. Screw M8 X 45 This part replaces 40008. |
| 25 | 40239 | Screw M10x100 |
| 26 | 40341 | Screw M10x75 |
| 27 | 40845 | Allenscrew M6x25 |
| 28 | 40006 | Screw M8x35 |
| 29 | 40241 | Allenscrew M10x30 |
| 30 | 40031 | Screw M6x25 |
| 31 | 40128 | Screw M5x40 |
| 32 | 40231 | Screw M5x30 |
| 33 | 40011 | Hex screw M8 x 60 DIN931(1=10pcs)e - Call your local BRP dealership |
| 34 | 5444099 | Sleeve |
| 35 | 40289 | Allen screw M8x25 |
| 36 | 40134 | Screw Socket HD.DIN 912 |
| 37 | 207103544 | Screw M10 x 35 This part replaces 222003565. |
| 38 | 5441795 | Pull rod |
| 39 | 41035 | Circlip |
| 40 | 534578 | Front protector |
| 41 | 5444713 | Sleeve |
| 42 | 414802600 | CUSHION - Call your local BRP dealership |
| 43 | 548387 | Support plate - Call your local BRP dealership |
| 44 | 5444670 | Lever |
| 44 | 5444671 | Lever |
| 45 | 414460600 | SPRING - Call your local BRP dealership |
| 46 | 5244729 | Front arm |
| 47 | 5243150 | Runner |
| 48 | 5343151 | Slider shoe |
| 49 | 5341511 | Rear Axle l=340 |
| 50 | 5341633 | Lug |
| 51 | 5441524 | Sleeve |
| 52 | 5443748 | Wheel Support |
| 53 | 5441491 | Sleeve |
| 54 | 5441492 | Shaft l=393 |
| 55 | 5441493 | Sleeve |
| 56 | 5441494 | Sleeve |
| 57 | 5441495 | Stud |
| 58 | 5441508 | Shaft l=219 |
| 59 | 5441512 | Sleeve |
| 60 | 5441513 | Sleeve |
| 61 | 5441527 | Guard |
| 62 | 572030800 | LH ADJUST CAM - Call your local BRP dealership |
| 62 | 572030900 | RH ADJUST CAM - Call your local BRP dealership |
| 63 | 5441533 | Sleeve |
| 64 | 46035 | Idler wheel, black |
| 65 | 5441643 | Bracket weld - Call your local BRP dealership |
| 66 | 5441645 | Pin |
| 67 | 5442878 | Stopper Strap |
| 68 | 23227 | Shock rear |
| 69 | 5442112 | Spring Roller - Call your local BRP dealership |
| 70 | 5442191 | Rubber Stopper |
| 71 | 5442192 | Support plate |
| 72 | 5441526 | Stud |
| 73 | 5443387 | Sleeve |
| 74 | 570023100 | Rubber Stopper |
| 75 | 572091400 | Support wheel black |
| 76 | 5244588 | Shock Support |
| 77 | 46032 | Support wheel black |
| 78 | 570066608 | Support wheel 135/blue |
| 79 | 5343434 | Space Support L.H. |
| 79 | 5343435 | Space support R.H. |
| 80 | 5443659 | Space support |
| 81 | 5441632 | Sleeve |
| 82 | 40081 | Screw M10x100 |
| 83 | 40316 | Hex Sc. M8 x 20 BN73 m(1=10pcs) - Call your local BRP dealership |
| 84 | 5243457 | Welded Rear Arm |
| 85 | 5443535 | Sleeve |
| 86 | 5443767 | Shaft l=310 |
| 87 | 5441525 | Sleeve |
| 88 | 31001 | Circlip |
| 89 | 5341639 | Spring R.H. |
| 89 | 5341640 | Spring L.H. |
| 90 | 31009 | Bearing |
| 91 | 31002 | Circlip |
| 92 | 4181158 | Keeper |
| 93 | 40226 | Screw M10x80 |
| 94 | 40041 | Screw M10x30 |
| 95 | 5441530 | Sleeve L.H. |
| 95 | 5441649 | Sleeve R.H. |
| 96 | 570066708 | Support wheel 165/blue |
| 97 | 5443753 | Sleeve |
| 98 | 541776 | Sleeve |
| 99 | 543246 | Support wheel |
