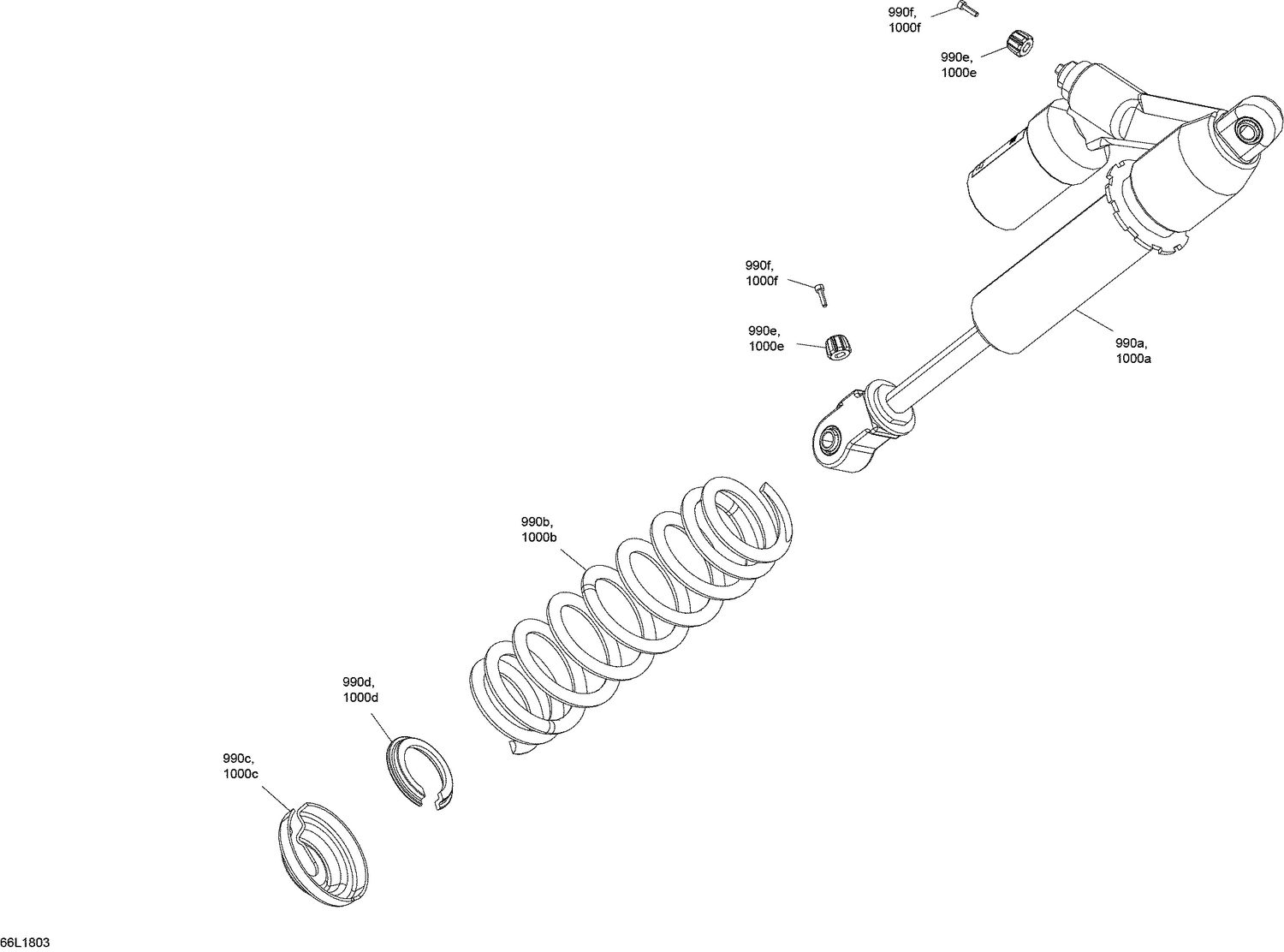

07- Shocks Front Rave - 600 RS
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 990a | 505074454 | Front Shock Left |
| 990b | 505074456 | Spring 280 Mm 26 N/mm |
| 990c | 505072635 | Spring Stopper |
| 990d | 706200793 | Cap |
| 990e | 505072753 | Adjustment Knob |
| 990f | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 1000a | 505074455 | Front Shock Right |
| 1000b | 505074456 | Spring 280 Mm 26 N/mm |
| 1000c | 505072635 | Spring Stopper |
| 1000d | 706200793 | Cap |
| 1000e | 505072753 | Adjustment Knob |
