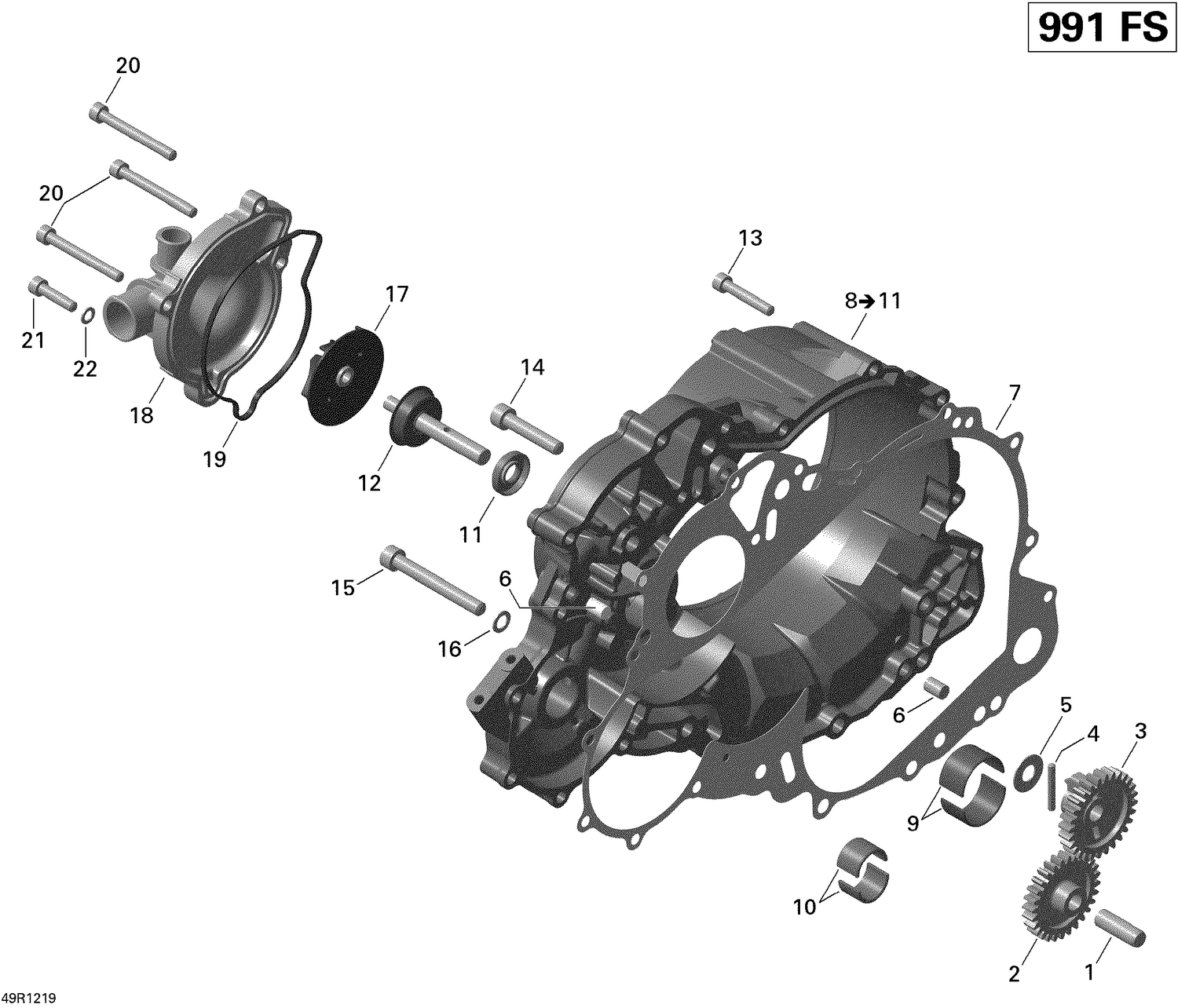

| Ref | Part Number | Description |
|---|
| 1 |
420929930 |
PIN, M6 X 50 - Call your local BRP dealership |
| 2 |
420634500 |
INTERMEDIATE GEAR WATER PUMP - Call your local BRP dealership |
| 3 |
420634490 |
Gear Water Pump |
| 4 |
420232431 |
Needle Pin This part replaces 420232430. |
| 5 |
420227685 |
THRUST WASHER - Call your local BRP dealership |
| 6 |
420632010 |
Center Pin 8 X 12 |
| 7 |
420650330 |
Gasket |
| 9 |
420233791 |
Plain Bearing, Red |
| 9 |
420233793 |
Plain Bearing, Yellow |
| 9 |
420233794 |
Half Bushing This part replaces 420233790. |
| 10 |
420233780 |
Plain Bearing, Blue |
| 11 |
420631460 |
Oil Seal |
| 12 |
420220414 |
Water Pump Shaft This part replaces 420220413. |
| 13 |
420241814 |
Socket Head Screw M6 X 35 This part replaces 420241811. |
| 14 |
420840682 |
Allen Screw M8 X 40 This part replaces 420840681. |
| 15 |
420841841 |
SOCKET HEAD SCREW M8 X 65 - Call your local BRP dealership |
| 16 |
420950141 |
Sealing Ring |
| 17 |
420222501 |
Impeller This part replaces 420222500. |
| 18 |
420222514 |
WATER PUMP HOUSING - Call your local BRP dealership |
| 19 |
420650240 |
Seal Ring |
| 20 |
420240332 |
Allen Screw M6 X 55 This part replaces 420240331. |
| 21 |
205062544 |
Socket Head Screw M6 X 25 |
