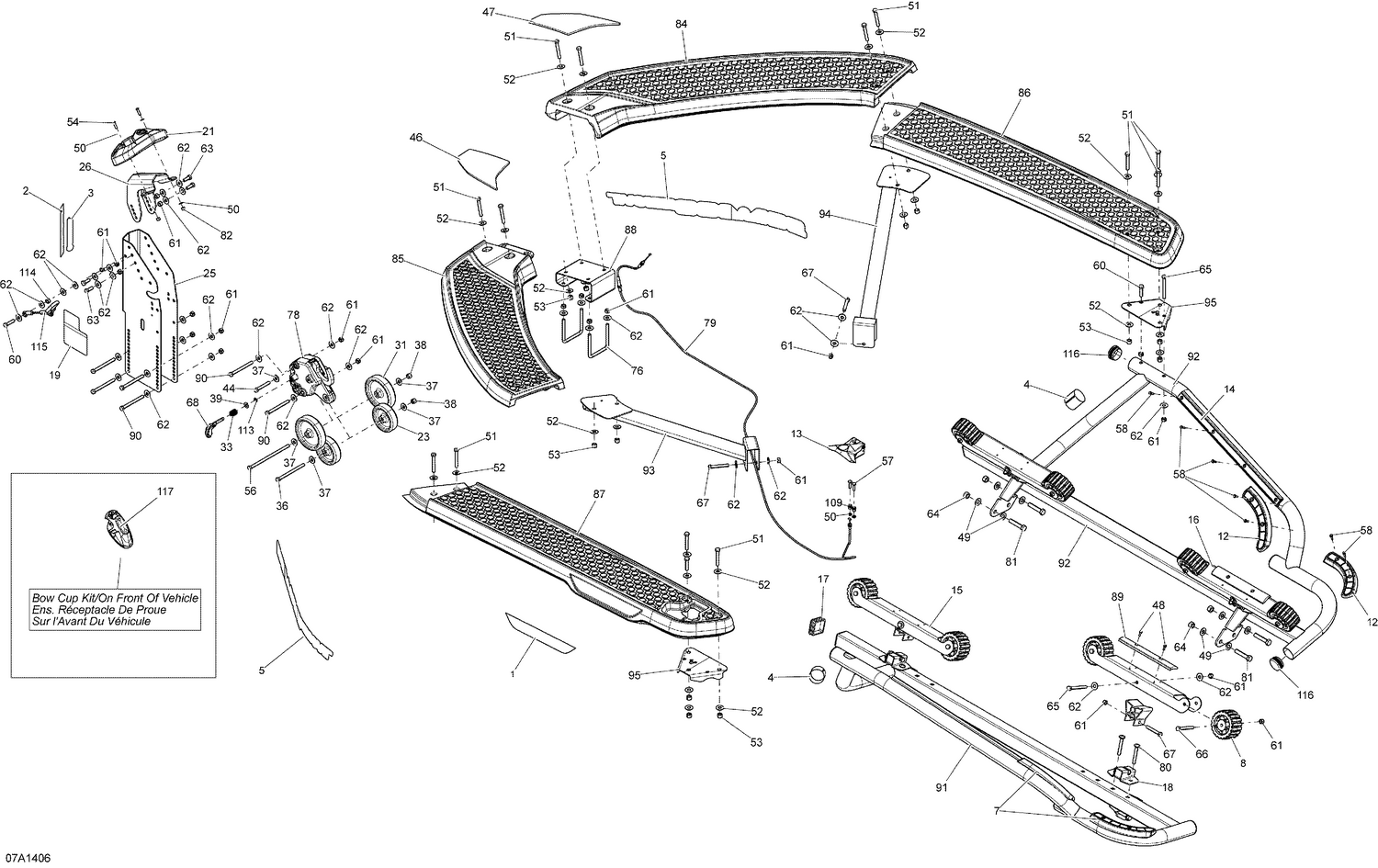

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Reflector |
| 2 |
219904008 |
SD DECAL ICATCH - Call your local BRP dealership |
| 3 |
219904009 |
SD DECAL ADVANCE TECH - Call your local BRP dealership |
| 4 |
219904017 |
Decal Water Level |
| 5 |
219904019 |
DECAL SEA-DOO MOVE - Call your local BRP dealership |
| 7 |
262000024 |
LH ELBOW PROTECTOR - Call your local BRP dealership |
| 8 |
262000028 |
WHEEL - Call your local BRP dealership |
| 12 |
262000057 |
RH Elbow Protector |
| 13 |
262000128 |
HANDLE ASS'Y - Call your local BRP dealership |
| 14 |
262000163 |
Protector |
| 17 |
262000175 |
END CAP - Call your local BRP dealership |
| 18 |
262000184 |
Pivot |
| 19 |
262000192 |
Warning Label |
| 21 |
269800003 |
BUMPER - Call your local BRP dealership |
| 23 |
269800399 |
CATCHER CASING - Call your local BRP dealership This part replaces 269800007. |
| 31 |
269800058 |
CATCH ROLLER, LARGE - Call your local BRP dealership |
| 33 |
269800071 |
SPRING - Call your local BRP dealership |
| 36 |
269800088 |
Hexagonal Bolt 3/8 X 5 |
| 37 |
269800089 |
WASHER 7/16 - Call your local BRP dealership |
| 39 |
269800092 |
WASHER - Call your local BRP dealership |
| 41 |
269800094 |
Hex. Thin Lock Nut 1/4''-20 |
| 44 |
269800316 |
HEX. CAP BOLT 3/8''-16 X 2 1/2'' - Call your local BRP dealership This part replaces 269800106. |
| 45 |
269800107 |
Hexagonal Head Bolt 3/8 X 1 3/4 |
| 46 |
269800110 |
Carpet |
| 47 |
269800111 |
CARPET - Call your local BRP dealership |
| 48 |
269800136 |
SCREW - Call your local BRP dealership |
| 49 |
269800309 |
WASHER 1/2'' - Call your local BRP dealership This part replaces 269800139. |
| 50 |
269800150 |
Washer |
| 51 |
269800153 |
Hexagonal Head Bolt 3/8 X 2 1/2 |
| 52 |
269800154 |
Washer 3/8 |
| 53 |
269800155 |
Hex. Lock Nut 3/8 |
| 54 |
269800157 |
Button Head Screw |
| 56 |
269800159 |
Hexagonal Bolt 3/8 X 7 1/2 |
| 57 |
269800318 |
HEX. CAP BOLT 1/4''-20 X 1'' - Call your local BRP dealership This part replaces 269800187. |
| 58 |
269800200 |
Screw |
| 60 |
269800298 |
HEXAGONAL BOLT - Call your local BRP dealership |
| 61 |
269800299 |
CENTERLOCK NUT - Call your local BRP dealership |
| 62 |
269800300 |
FLAT WASHER - Call your local BRP dealership |
| 63 |
269800305 |
HEX. CAP SCREW 3/8 -16 X 1 - Call your local BRP dealership |
| 64 |
269800310 |
CENTERLOCK NUT 1/2-1 - Call your local BRP dealership |
| 65 |
269800314 |
HEX. BOLT 3/8''-16 X 3 1/2'' - Call your local BRP dealership |
| 66 |
269800315 |
HEX. BOLT - Call your local BRP dealership |
| 67 |
269800316 |
HEX. CAP BOLT 3/8''-16 X 2 1/2'' - Call your local BRP dealership |
| 68 |
269800365 |
Locking HandleBar |
| 76 |
269800403 |
U-BOLT 3/8''-16 X 3-1/8'' X 3-3/4'' - Call your local BRP dealership |
| 78 |
269800436 |
CATCHER CASING - Call your local BRP dealership |
| 79 |
269800437 |
CABLE - Call your local BRP dealership |
| 80 |
269800461 |
CARRIAGE BOLT - Call your local BRP dealership |
| 81 |
269800462 |
HEX. BOLT - Call your local BRP dealership |
| 82 |
212000005 |
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership This part replaces 270000825. |
| 84 |
291002828 |
RH Front Walkpad |
| 85 |
291002829 |
LH FRONT WALKPAD - Call your local BRP dealership |
| 86 |
291002830 |
RH Rear Walkpad |
| 87 |
291002831 |
LH Rear Walkpad |
| 88 |
291002973 |
Bracket |
| 89 |
291003015 |
Protector |
| 90 |
291003301 |
HEX. CAP BOLT 3/8''-16 X 4'' - Call your local BRP dealership |
| 95 |
291003628 |
Plate |
| 109 |
291003652 |
Nut |
| 113 |
293370010 |
Circlip 7mm |
| 114 |
293650215 |
NUT 3/8''-16 - Call your local BRP dealership |
| 115 |
705202300 |
Security Cable |
| 116 |
705202886 |
CAP - Call your local BRP dealership |
