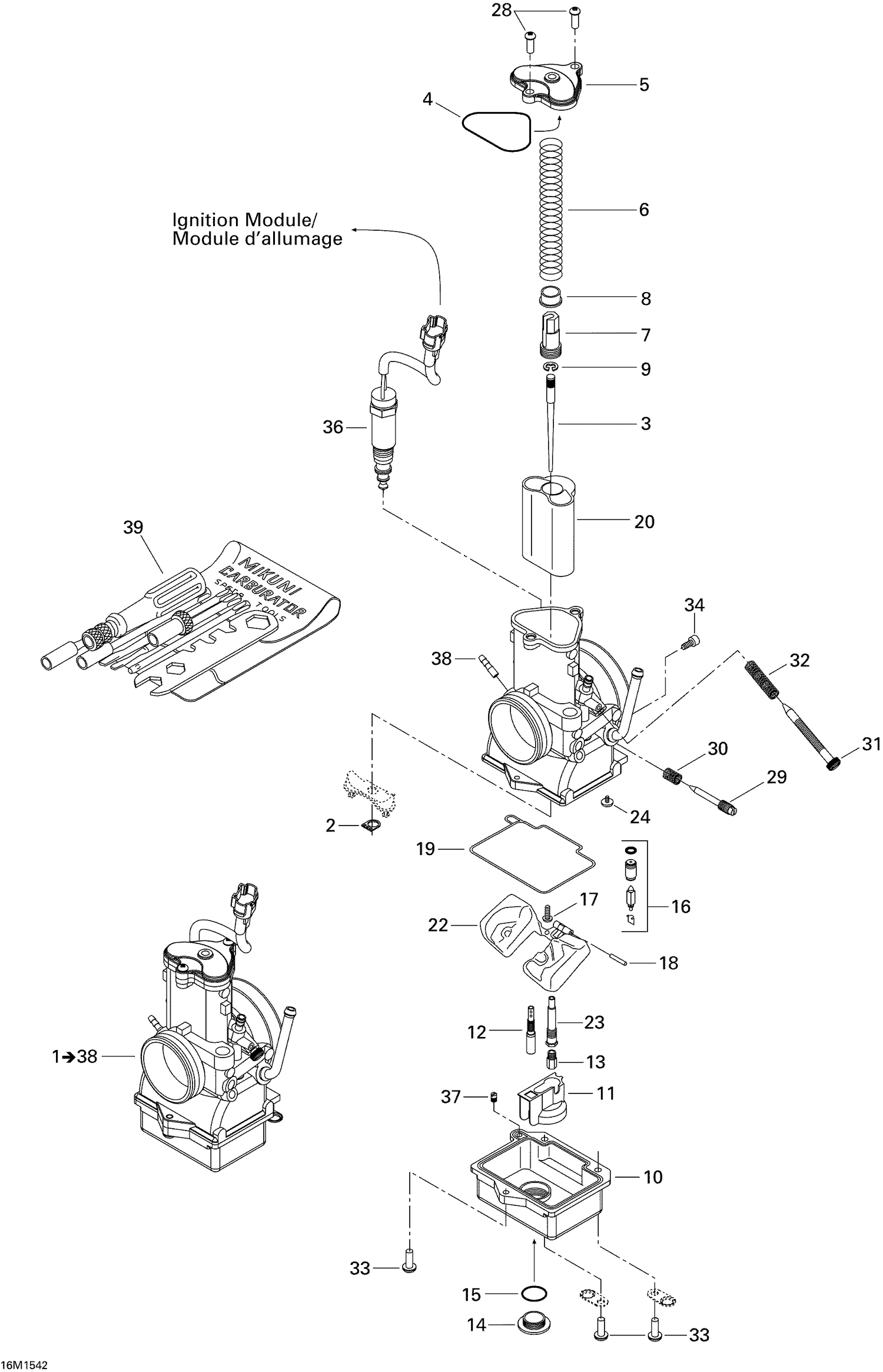

02- Carburetor _16M1542
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 403138818 | Carburator, TMX39-1Z1 |
| 2 | 404161865 | Packing |
| 3 | 404162141 | NEEDLE - Call your local BRP dealership |
| 4 | 404162111 | O-RING - Call your local BRP dealership |
| 5 | 404162142 | Top Cap |
| 6 | 404162109 | SPRING - Call your local BRP dealership |
| 7 | 404162108 | HOLDER GUIDE - Call your local BRP dealership |
| 8 | 404161863 | RING - Call your local BRP dealership |
| 9 | 404152200 | E-Ring |
| 10 | 404162121 | FLOAT BODY - Call your local BRP dealership |
| 11 | 404161855 | HOLDER - Call your local BRP dealership |
| 12 | 404162134 | PILOT JET 55 - Call your local BRP dealership |
| 13 | 404162140 | Main Jet 280 |
| 14 | 404107400 | Drain Plug Screw |
| 15 | 404107300 | O-Ring |
| 16 | 404161868 | Needle Valve 1.5 |
| 17 | 404138600 | SCREW - Call your local BRP dealership |
| 18 | 404161860 | PIN - Call your local BRP dealership |
| 19 | 404161993 | O-Ring |
| 20 | 404162106 | Piston Valve 4.0 |
| 22 | 404161859 | FLOAT - Call your local BRP dealership |
| 23 | 486400012 | JET NEEDLE - Call your local BRP dealership |
| 24 | 404161861 | SCREW - Call your local BRP dealership |
| 28 | 404138700 | Screw |
| 29 | 404161866 | ADJUSTER - Call your local BRP dealership |
| 30 | 404132400 | SPRING - Call your local BRP dealership |
| 31 | 404161850 | ADJUSTER - Call your local BRP dealership |
| 32 | 404161849 | SPRING - Call your local BRP dealership |
| 33 | 404161848 | SCREW - Call your local BRP dealership |
| 34 | 404162100 | SCREW - Call your local BRP dealership |
| 36 | 404161998 | SELENOID - Call your local BRP dealership |
| 37 | 404162098 | POWER JET 160 - Call your local BRP dealership |
| 38 | 404162123 | NIPPLE - Call your local BRP dealership |
