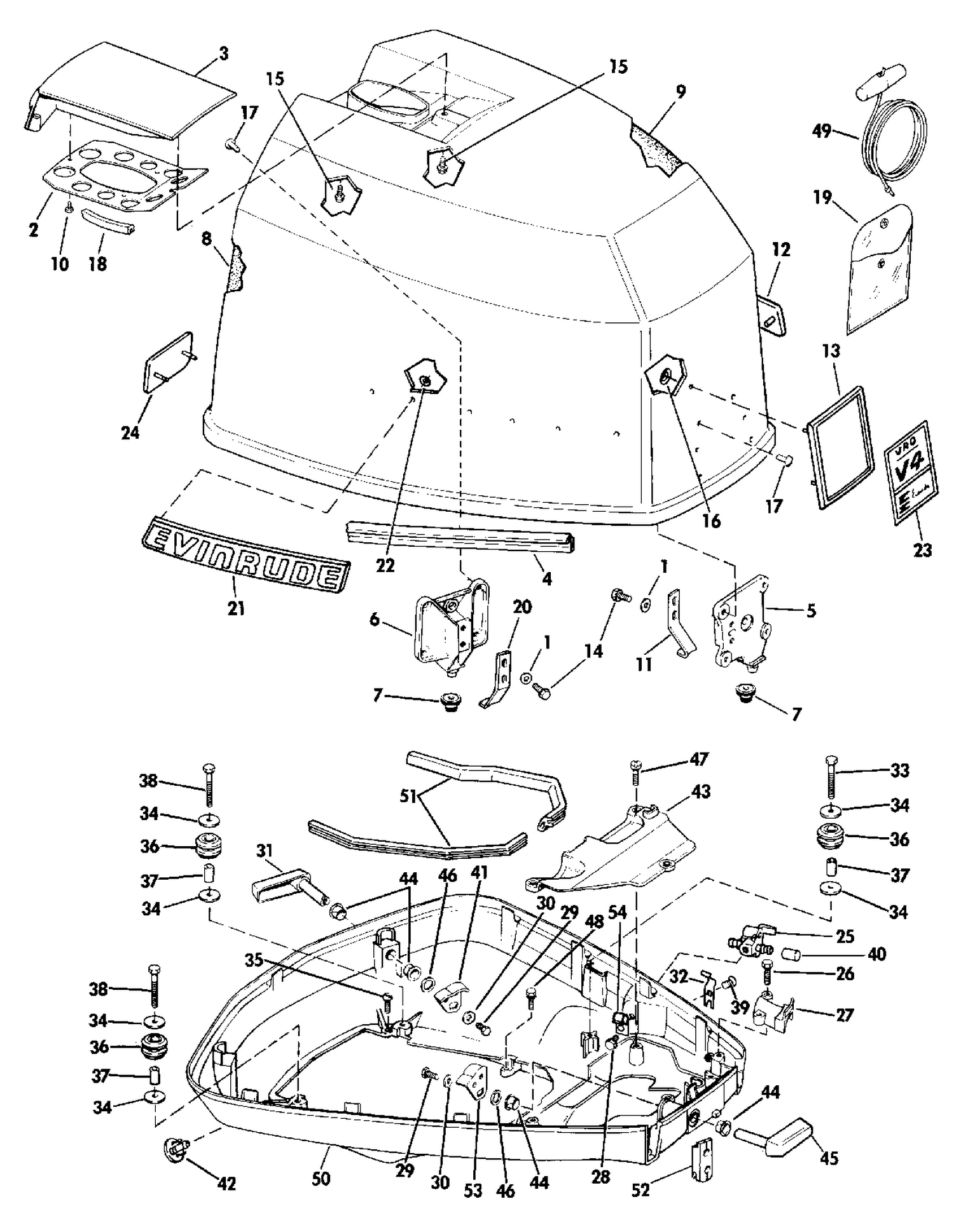

| Ref | Part Number | Description |
|---|
| 1 |
0306407 |
LOCCKWASHER,Cover latch |
| 2 |
0206520 |
AIR INLET BAFFLE |
| 4 |
0329548 |
SEAL This part replaces 0209504. |
| 5 |
0389971 |
LOCATING BARCKET, Front |
| 6 |
0394976 |
LOCATING BRACKET, Rear This part replaces 0389972. |
| 8 |
0341534 |
SOUND BLANKET, Side This part replaces 0208509. |
| 9 |
0208510 |
SOUND BLANKET, Top |
| 11 |
0323175 |
HOOK , Motor Cover, Front |
| 12 |
0209508 |
APPLIQUE, Evinrude, port 140 only |
| 13 |
0209520 |
APPLIQUE, Front |
| 18 |
0315984 |
SEAL , Baffle to motor cover This part replaces 0209507. |
| 19 |
0314494 |
BAG EMERGENCY STARTER ROPE |
| 21 |
0209509 |
APPLIQUE, Starboard 140 only |
| 23 |
0209895 |
PLATE, Applique front |
| 24 |
0209896 |
APPLIQUE, Engine cover, rear |
| 27 |
0318849 |
CLAMP, Instrument cable |
| 28 |
0908159 |
SCREW, Bearing clamp This part replaces 0328728. |
| 29 |
0312241 |
SCREW, Trim/Tilt relay bracket |
| 31 |
0383685 |
LATCH HANDEL ASSY., Rear |
| 32 |
0333739 |
RETAINER, Fuel hose to cover This part replaces 0329610. |
| 33 |
0303398 |
VIS, support |
| 35 |
0328695 |
CLAMP, Engine cable |
| 36 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 37 |
0302406 |
SLEEVE |
| 38 |
0303398 |
VIS, support |
| 39 |
0310539 |
SCREW, Clamp choke solenoid |
| 41 |
0323169 |
HOOK, Lower rear port |
| 42 |
0321885 |
NIPPLE |
| 43 |
0328358 |
COVER ASSY. Air entrance |
| 45 |
0383641 |
LATCH HANDEL ASSY., Front |
| 47 |
0328695 |
CLAMP, Engine cable |
| 49 |
0378347 |
CORDE DE LANCEUR |
| 50 |
0434289 |
COVER, Lower This part replaces 0394336. |
| 51 |
0318258 |
SEAL Cover |
| 52 |
0323428 |
GROMMET |
| 53 |
0323170 |
HOOK Front and stbd., rear |
| 54 |
0330157 |
CLAMP |
| 0282218 |
0282218 |
ENGINE COVER ASSY., 90 |
| 0282219 |
0282219 |
ENGINE COVER ASSY.,115 |
| 0282220 |
0282220 |
ENGINE COVER ASSY., 140 |
| 0282247 |
0282247 |
DECAL SET, 90, 115 |
| 0282248 |
0282248 |
DECAL SET, 140 |
