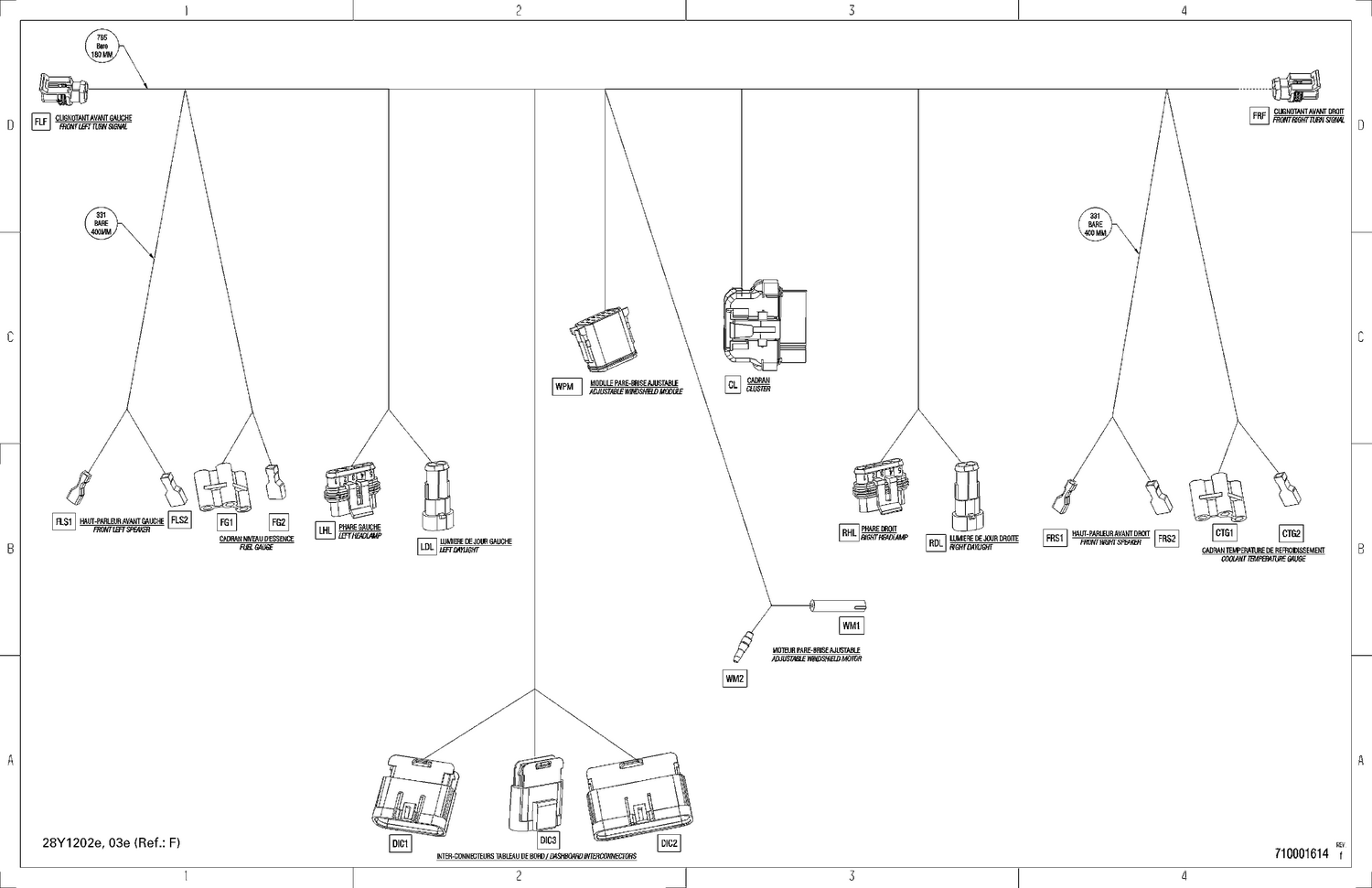

10- Electrical Harness , Console
Parts (58)
| Ref | Part Number | Description |
|---|---|---|
| CL | 515175801 | Female Housing, 24 Circuits |
| CL | 515175802 | Retainer Block |
| CL | 515175803 | Wire Seal |
| CL | 515175806 | Female Terminal |
| CL | 515175812 | Plug |
| CL | 710000399 | Female Housing |
| CL | 710001131 | Female Terminal |
| CTG1 | 710002072 | Housing Connector |
| CTG2 | 409010700 | Female Terminal |
| DIC1 | 710001224 | Terminal |
| DIC1 | 710001225 | Cap |
| DIC1 | 710001227 | Housing |
| DIC1 | 710001332 | Seal Wire |
| DIC1 | 710001863 | TERMINAL - Call your local BRP dealership |
| DIC2 | 278002186 | Wire Seal |
| DIC2 | 710001856 | Housing |
| DIC2 | 710001857 | Terminal |
| DIC2 | 710001859 | Terminal |
| DIC2 | 710002075 | Plug |
| DIC3 | 710001224 | Terminal |
| DIC3 | 710001231 | Housing |
| DIC3 | 710001332 | Seal Wire |
| DIC3 | 710001863 | TERMINAL - Call your local BRP dealership |
| FG1 | 710002072 | Housing Connector |
| FG2 | 409010700 | Female Terminal |
| FLF | 409209500 | Female Housing, 2 Circuits |
| FLF | 515176621 | Wire Seal |
| FLF | 710001340 | Female Terminal |
| FLS1 | 710000082 | Female Terminal |
| FLS2 | 409010700 | Female Terminal |
| FRF | 409209500 | Female Housing, 2 Circuits |
| FRF | 515176621 | Wire Seal |
| FRF | 710001340 | Female Terminal |
| FRS1 | 710000082 | Female Terminal |
| FRS2 | 409010700 | Female Terminal |
| LDL | 409209400 | Male Terminal Housing, 2 Circuits |
| LDL | 515176164 | Male Terminal |
| LDL | 515176621 | Wire Seal |
| LHL | 278001013 | Wire Seal |
| LHL | 278001014 | Female Terminal |
| LHL | 710000780 | Connector |
| RDL | 409209400 | Male Terminal Housing, 2 Circuits |
| RDL | 515176164 | Male Terminal |
| RDL | 515176621 | Wire Seal |
| RHL | 278001013 | Wire Seal |
| RHL | 278001014 | Female Terminal |
| RHL | 409013700 | Plug |
| RHL | 710000780 | Connector |
| WM1 | 278001007 | Insulated Sheath |
| WM1 | 710000421 | Female Terminal |
| WM2 | 278001008 | Insulated Sheath |
| WM2 | 278002261 | Female Terminal |
| WPM | 278002377 | Female Terminal Housing, 12 Circuits |
| WPM | 515175679 | FEMALE LOCK, 12 CIRCUITS - Call your local BRP dealership |
| 331 | 219704446 | PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership |
| 528 | Not | Available As Spare Part - Coding Tape |
| 530 | 710000488 | Coding Tape, Red |
| 765 | Not | Available As Spare Part - Adhesive Tape |
