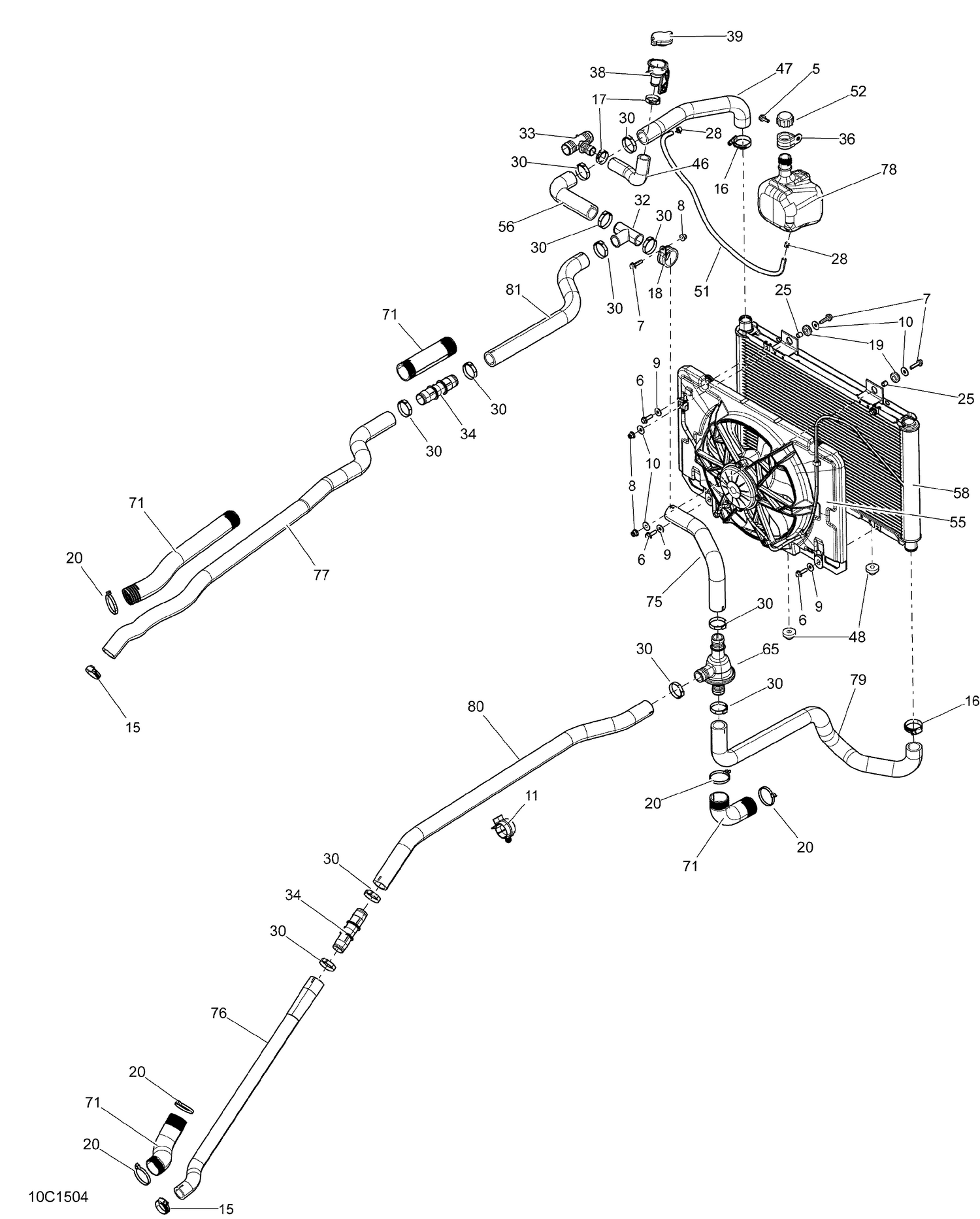

01- Cooling System _10C1504
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 207661644 | Hex. Flange Screw M6 X 16 |
| 6 | 207662044 | Hex. Flange Screw M6 X 20 |
| 7 | 207662534 | Hex. Flange Screw M6 X 25 |
| 8 | 233261434 | Flange Elastic Nut M6 |
| 9 | 234062410 | Flat Washer 6 mm |
| 10 | 250200082 | Flat Washer |
| 11 | 275500590 | Retainer |
| 15 | 293650098 | Norma Gear Clamp |
| 16 | 293650098 | Norma Gear Clamp |
| 17 | 293650099 | Crimp Clamp |
| 18 | 293650218 | Hose Retainer |
| 19 | 709000582 | Grommet This part replaces 293720053. |
| 20 | 293750008 | Tie Wrap 368 mm |
| 25 | 293900105 | Bushing |
| 28 | 414554800 | Spring Clamp |
| 30 | 509000162 | Gear Clamp |
| 32 | 509000219 | T-Fitting |
| 33 | 509000372 | T-Fitting |
| 34 | 509000914 | Fitting |
| 36 | 709200036 | Hose Anchor |
| 38 | 709200179 | Filler Neck |
| 39 | 709200207 | Radiator Pressure Cap |
| 46 | 709200264 | Filler Neck Hose |
| 47 | 709200265 | Radiator Outlet Hose |
| 48 | 709200285 | Grommet |
| 51 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 52 | 709200587 | Tank Cap This part replaces 709200328. |
| 55 | 709200566 | Fan Ass'y This part replaces 709200375. |
| 56 | 709200904 | Intermediate Hose This part replaces 709200380. |
| 58 | 709200395 | Radiator |
| 65 | 709200406 | Thermostat |
| 71 | 219704428 | Tubing 35 MM 1000MM Long |
| 75 | 709200906 | Hose This part replaces 709200447. |
| 76 | 709200496 | Pump Hose |
| 77 | 709200497 | Hose |
| 78 | 709200624 | Coolant Tank Ass'y This part replaces 709200504. |
| 79 | 709200909 | Hose_Radiator In This part replaces 709200513. |
| 80 | 709200519 | Pump Hose |
