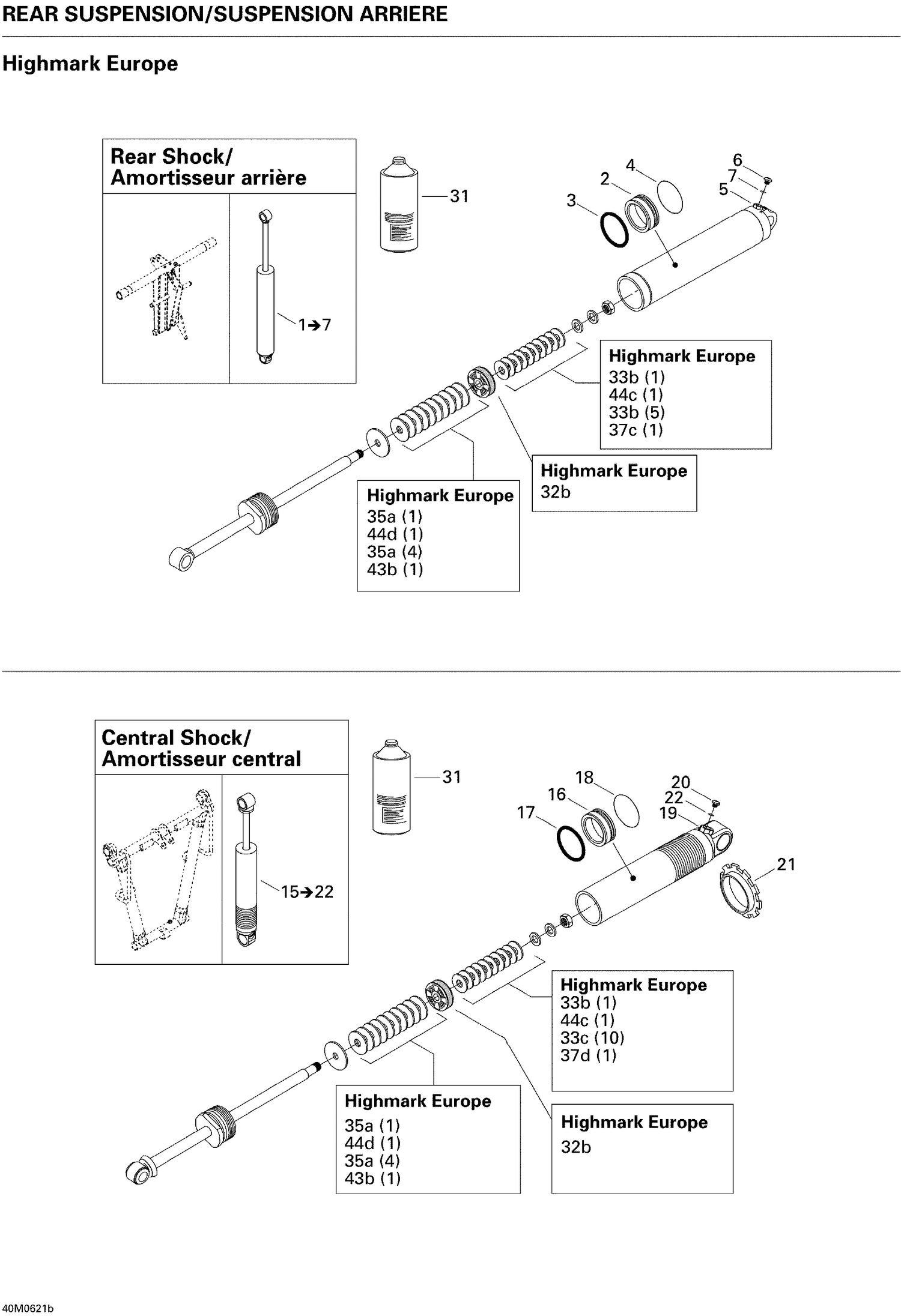

08- Take Apart Shock, Rear HM

08- Take Apart Shock, Rear HM

Parts (67)

RefPart NumberDescription
31 293600035 Shock Oil, 1 Liter
32a 414888304 Piston (C36)
32b Not Available As Spare Part - Piston (2 X 0.3-1) (C36)
32c 414888305 Piston (2 X 0.3-2) (C36)
32d Not Available As Spare Part - Piston (2 x 0.3-3) (C36)
32e 414888306 Piston (2 X 0.3-4) (C36)
32f Not Available As Spare Part - Piston (2 x 0.3-5) (C36)
32g 414888307 Piston (2 X 0.3-6) (C36)
33a 415039100 Leaf Valve Ø30 X 0.254 (C36)
33b 414888318 Leaf Valve Ø30 X 0.203 (C36)
33c 414888319 Leaf Valve Ø30 X 0.152 (C36)
33d Not Available As Spare Part - Leaf Valve Ø30 x 0.114 (C36)
34a Not Available As Spare Part - Leaf Valve Ø28 x 0.254 (C36)
34b 414888320 Leaf Valve Ø28 X 0.203 (C36)
34c 414888321 Leaf Valve Ø28 X 0.152 (C36)
34d Not Available As Spare Part - Leaf Valve Ø28 x 0.114 (C36)
35a 415039000 Leaf Valve Ø26 X 0.254 (C36)
35b 414888322 Leaf Valve Ø26 X 0.203 (C36)
35c 414888323 Leaf Valve Ø26 X 0.152 (C36)
35d Not Available As Spare Part - Leaf Valve Ø26 x 0.114 (C36)
36a Not Available As Spare Part - Leaf Valve Ø24 x 0.254 (C36)
36b Not Available As Spare Part - Leaf Valve Ø24 x 0.203 (C36)
36c Not Available As Spare Part - Leaf Valve Ø24 x 0.152 (C36)
36d Not Available As Spare Part - Leaf Valve Ø24 x 0.114 (C36)
37a Not Available As Spare Part - Leaf Valve Ø22 x 0.254 (C36)
37b 414888324 Leaf Valve Ø22 X 0.203 (C36)
37c 414888325 Leaf Valve Ø22 X 0.152 (C36)
37d Not Available As Spare Part - Leaf Valve Ø22 x 0.114 (C36)
38a Not Available As Spare Part - Leaf Valve Ø21 x 0.254 (C36)
38b Not Available As Spare Part - Leaf Valve Ø21 x 0.203 (C36)
38c Not Available As Spare Part - Leaf Valve Ø21 x 0.152 (C36)
38d 414888340 Leaf Valve Ø21 X 0.114 (C36)
39a Not Available As Spare Part - Leaf Valve Ø20 x 0.254 (C36)
39b 414888326 Leaf Valve Ø20 X 0.203 (C36)
39c 414888327 Leaf Valve Ø20 X 0.152 (C36)
39d 414888328 Leaf Valve Ø20 X 0.114 (C36)
40a Not Available As Spare Part - Leaf Valve Ø19 x 0.254 (C36)
40b Not Available As Spare Part - Leaf Valve Ø19 x 0.203 (C36)
40c Not Available As Spare Part - Leaf Valve Ø19 x 0.152 (C36)
40d Not Available As Spare Part - Leaf Valve Ø19 x 0.114 (C36)
41a Not Available As Spare Part - Leaf Valve Ø18 x 0.254 (C36)
41b 414888329 Leaf Valve Ø18 X 0.203 (C36)
41c 414888330 Leaf Valve Ø18 X 0.152 (C36)
41d Not Available As Spare Part - Leaf Valve Ø18 x 0.114 (C36)
42a Not Available As Spare Part - Leaf Valve Ø17 x 0.254 (C36)
42b Not Available As Spare Part - Leaf Valve Ø17 x 0.203 (C36)
42c Not Available As Spare Part - Leaf Valve Ø17 x 0.152 (C36)
42d Not Available As Spare Part - Leaf Valve Ø17 x 0.114 (C36)
43a 414888331 Leaf Valve Ø16 X 0.254 (C36)
43b 414888332 Leaf Valve Ø16 X 0.203 (C36)
43c 414888333 Leaf Valve Ø16 X 0.152 (C36)
43d 415038900 Leaf Valve Ø16 X 0.114 (C36)
44a 414888334 Leaf Valve Ø15 X 0.254 (C36)
44b 414888335 Leaf Valve Ø15 X 0.203 (C36)
44c 414888336 Leaf Valve Ø15 X 0.152 (C36)
44d 414888337 Leaf Valve Ø15 X 0.114 (C36)
45a Not Available As Spare Part - Leaf Valve Ø14 x 0.254 (C36)
45b Not Available As Spare Part - Leaf Valve Ø14 x 0.203 (C36)
45c Not Available As Spare Part - Leaf Valve Ø14 x 0.152 (C36)
45d Not Available As Spare Part - Leaf Valve Ø14 x 0.114 (C36)
46a Not Available As Spare Part - Leaf Valve Ø13 x 0.254 (C36)
46b Not Available As Spare Part - Leaf Valve Ø13 x 0.203 (C36)
46c Not Available As Spare Part - Leaf Valve Ø13 x 0.152 (C36)
46d Not Available As Spare Part - Leaf Valve Ø13 x 0.114 (C36)
47a 503189538 Leaf Valve Ø12 X 0.254 (C36)
47b 414888338 Leaf Valve Ø12 X 0.203 (C36)
47c 414888339 Leaf Valve Ø12 X 0.152 (C36)
