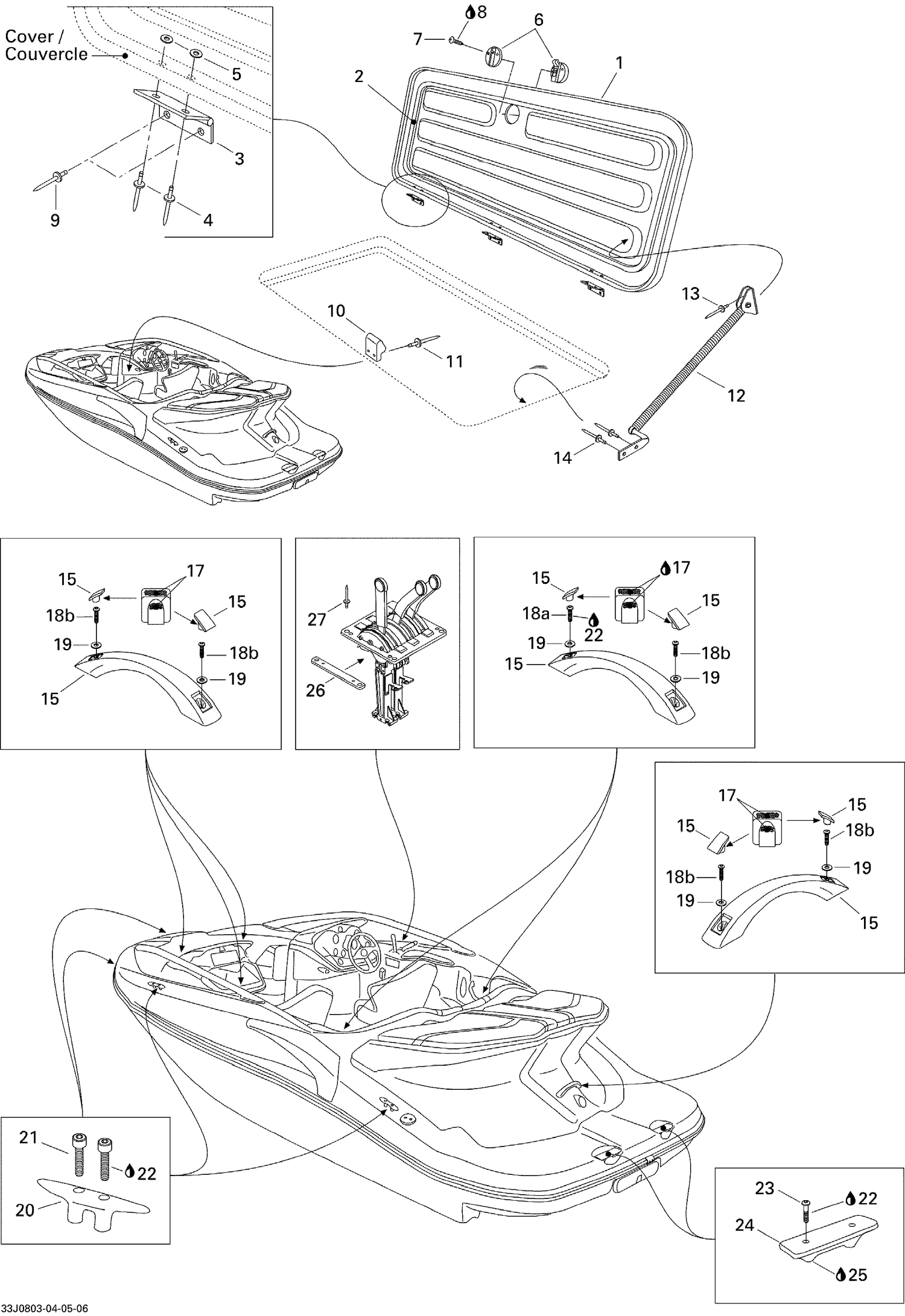

| Ref | Part Number | Description |
|---|
| 1 |
204073144 |
CENTER COVER - Call your local BRP dealership |
| 2 |
293200032 |
TRAY SEAL, METER - Call your local BRP dealership |
| 3 |
293072601 |
Hinge |
| 4 |
293150037 |
Avdel Rivet 3/16" |
| 5 |
234051600 |
Flat Washer M5, Stainless |
| 6 |
204070120 |
LATCH, WHITE - Call your local BRP dealership |
| 7 |
208651660 |
SCREW M5 X 16 - Call your local BRP dealership |
| 8 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 9 |
293150037 |
Avdel Rivet 3/16" |
| 10 |
204070050 |
LATCH BRACKET - Call your local BRP dealership |
| 11 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 12 |
204000071 |
SPRING SEAT - Call your local BRP dealership |
| 13 |
204000081 |
Pop Rivet 3/16" |
| 14 |
293150043 |
Pop Rivet 3/16" |
| 15 |
204073190 |
GRIP HANDLE, BLACK - Call your local BRP dealership |
| 18a |
205462560 |
SOCKET SCREW M6 X 25 - Call your local BRP dealership |
| 18b |
205963060 |
SOCKET HEAD SCREW M6 X 30, SCOTCH GRIP - Call your local BRP dealership |
| 19 |
234061600 |
Stainless Flat Washer M6 |
| 20 |
204070592 |
CLEAT - Call your local BRP dealership |
| 21 |
204100144 |
SOCKET HEAD SCREW M6 X 70 - Call your local BRP dealership |
| 22 |
293800060 |
Loctite 243, 10 ml |
| 23 |
205364060 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 24 |
204070194 |
GRIP HANDLE, BLACK - Call your local BRP dealership |
| 25 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 26 |
293450061 |
SHIFTER INSERT - Call your local BRP dealership |
