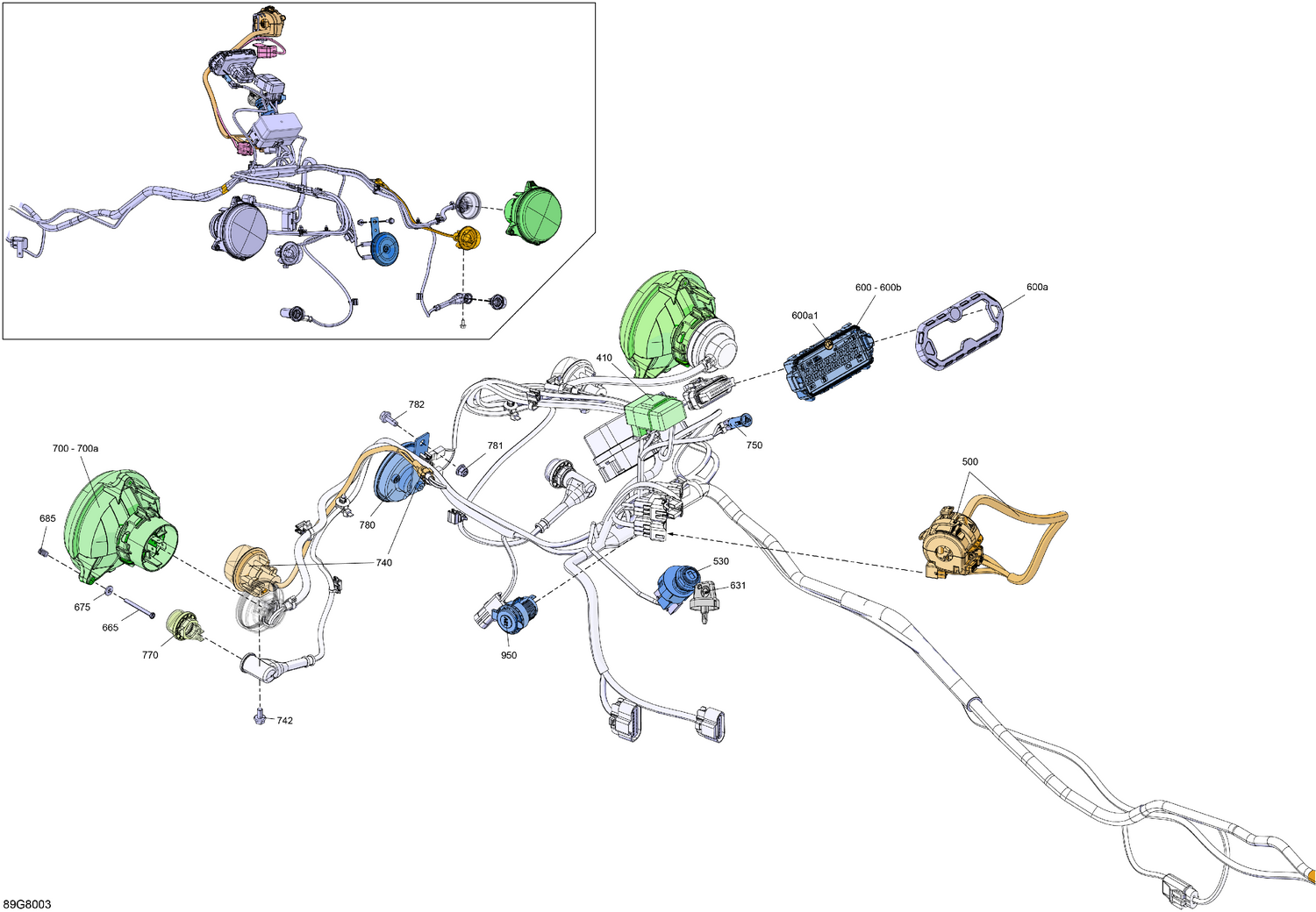

08- Electric - Front Section
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 410 | 710003239 | Flasher Unit |
| 500 | 710004040 | Multi-Function Handle |
| 530 | 710007865 | Switch_Ignition This part replaces 710004570. |
| 600a1 | 516010651 | BRP Logo 13 MM |
| 600b | 715900265 | Button |
| 631 | 710002183 | Grey, Electronic Key |
| 665 | 250000718 | Hex. Screw K40 X 45 |
| 675 | 517225900 | Flat Washer |
| 685 | 517168600 | Spring |
| 700a | 710000871 | Bulb, 12V 35/35W |
| 740 | 710002964 | Flasher |
| 742 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 750 | 710003909 | Pilot Lamp |
| 770 | 710001726 | Day Light |
| 780 | 710004791 | Horn |
| 781 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 782 | 207661644 | Hex. Flange Screw M6 X 16 |
