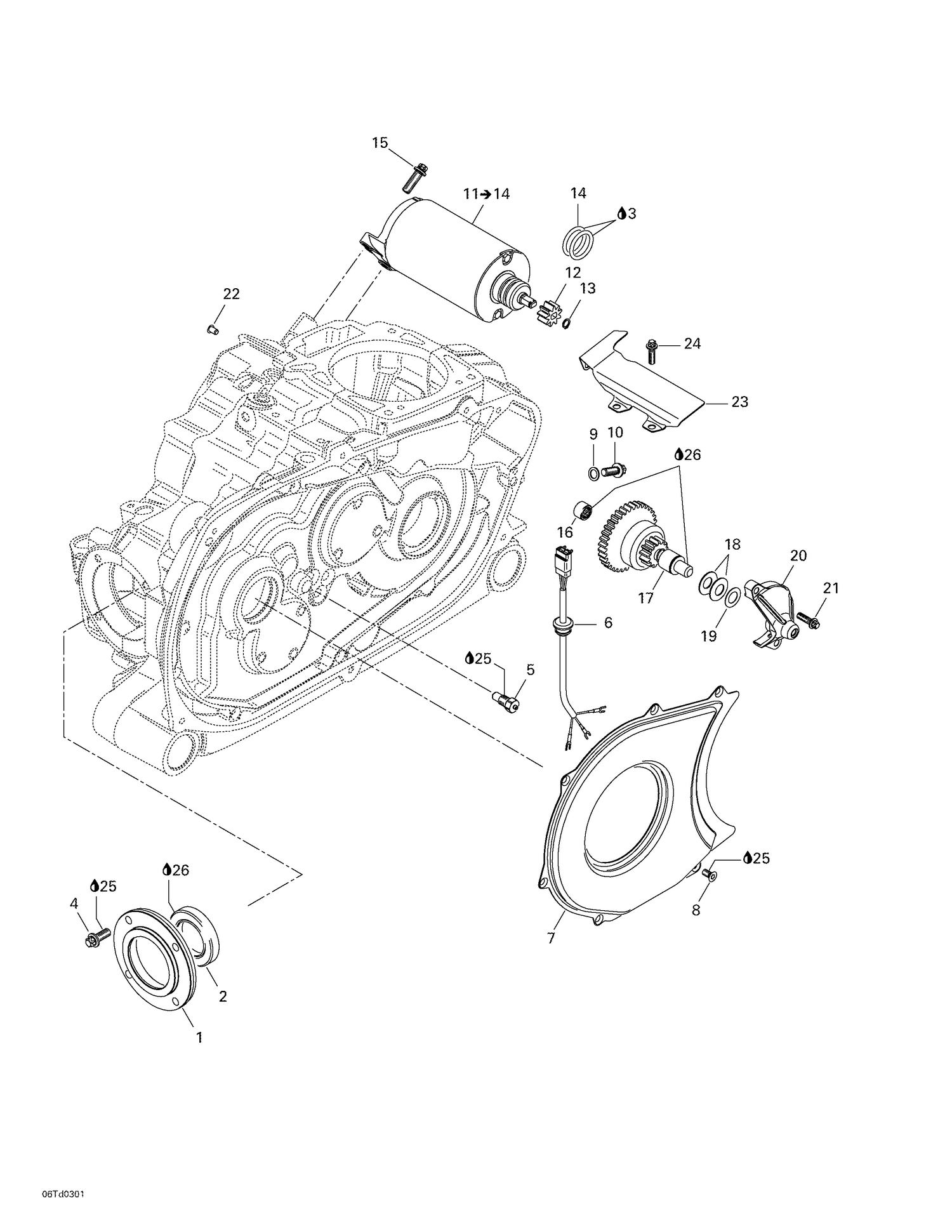

| Ref | Part Number | Description |
|---|
| 1 |
711610240 |
Bearing Cover (4 x 4) |
| 2 |
420650682 |
Oil Seal This part replaces 711650680. |
| 4 |
711641243 |
TORX FLANGE SCREW M8 X 25 - Call your local BRP dealership |
| 5 |
420241856 |
Position Switch This part replaces 711241852. |
| 6 |
420265831 |
Wiring Harness This part replaces 711265831. |
| 7 |
711610262 |
Air Guide |
| 8 |
711241465 |
Torx Taptite Screw M6 x 12 |
| 9 |
420950141 |
Sealing Ring |
| 10 |
711641243 |
TORX FLANGE SCREW M8 X 25 - Call your local BRP dealership |
| 11 |
420664710 |
CARBON BRUSH SET - Call your local BRP dealership |
| 12 |
420834522 |
Starter Gear, 9 Teeth This part replaces 290834521. |
| 13 |
420845601 |
Retaining Ring This part replaces 711845600. |
| 14 |
711250300 |
O-Ring |
| 15 |
420641238 |
Torx Flange Screw M6 X 25 This part replaces 711641233. |
| 16 |
420232482 |
Needle Bushing This part replaces 290232480. |
| 17 |
711889645 |
STARTER DRIVE - Call your local BRP dealership |
| 18 |
420238300 |
Spring Washer This part replaces 711238300. |
| 19 |
420827261 |
Thrust Washer This part replaces 711827261. |
| 20 |
711610376 |
Gear Cover |
| 21 |
290640690 |
SCREW M6 X 45 - Call your local BRP dealership |
| 22 |
711860245 |
Plug |
| 23 |
711251240 |
Heat Deflector |
| 24 |
711641043 |
Torx Flange Screw M6 x 16 |
| 25 |
293800060 |
Loctite 243, 10 ml |
