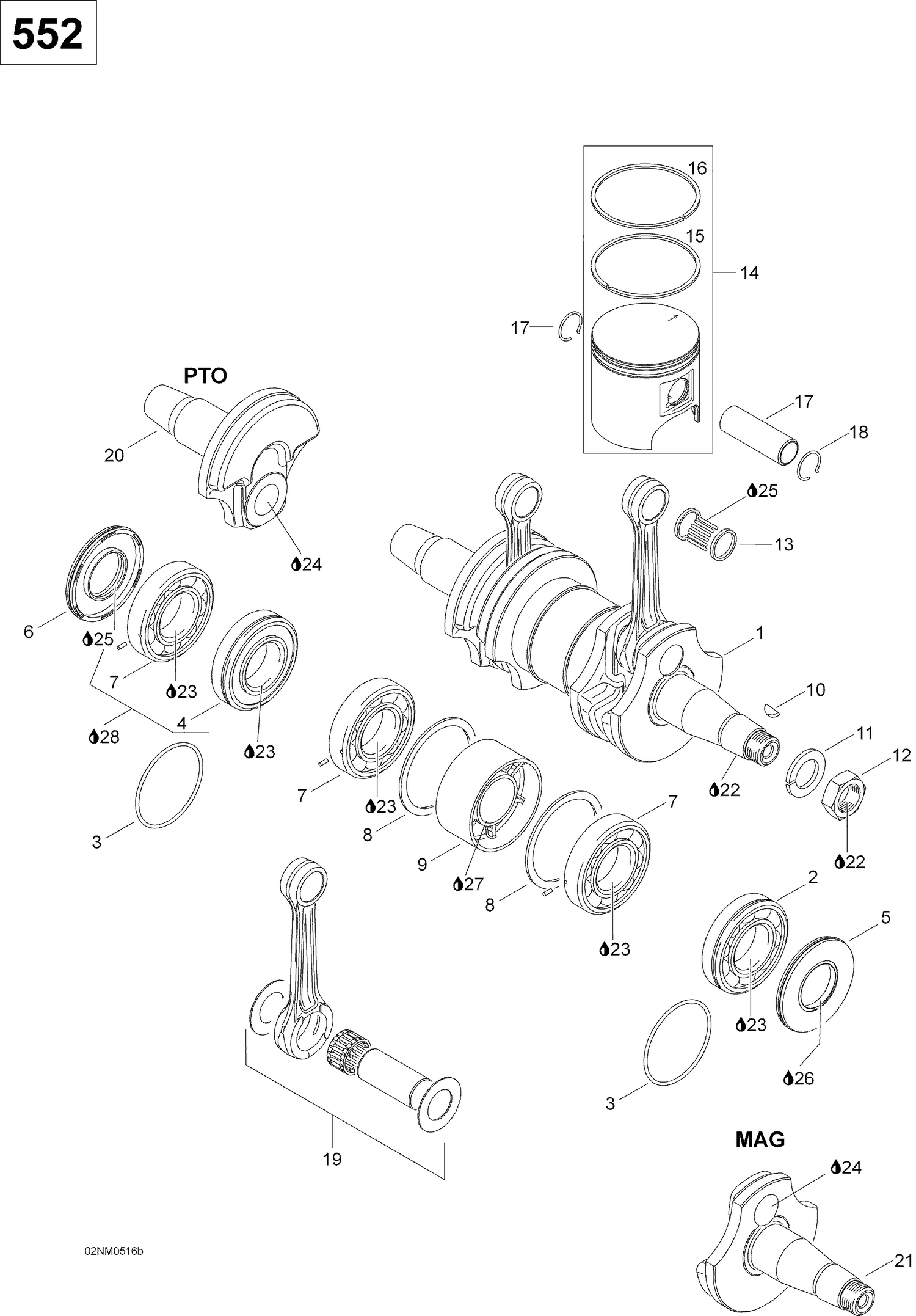

| Ref | Part Number | Description |
|---|
| 2 |
420832571 |
Ball Bearing |
| 3 |
293300022 |
O-Ring, 64 mm X 2 mm This part replaces 420250165. |
| 4 |
420832632 |
Ball Bearing This part replaces 420832637. |
| 5 |
420831952 |
Oil Seal This part replaces 420831950. |
| 6 |
420831955 |
Oil Seal |
| 7 |
420832573 |
Ball Bearing |
| 8 |
420927710 |
Retaining Disk |
| 9 |
420850149 |
Labyrinth Sleeve |
| 10 |
420246055 |
Woodruff Key |
| 11 |
420945759 |
Lock Washer 22 mm |
| 12 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 13 |
420832420 |
NEEDLE BEARING - Call your local BRP dealership |
| 15 |
420815300 |
Rectangular Ring 76 mm |
| 15 |
420815301 |
Rectangular Ring 76.25 mm |
| 15 |
420815302 |
Rectangular Ring 76.50 mm |
| 16 |
420815155 |
Semi-trapez Ring 76 mm |
| 16 |
420815156 |
Semi-trapez Ring 76.25 mm |
| 16 |
420815157 |
Semi-trapez Ring 76.50 mm |
| 17 |
420916407 |
Piston Pin This part replaces 420916405. |
| 18 |
420845106 |
Piston Circlip |
| 19 |
420889064 |
Rod Repair Kit |
| 20 |
420819181 |
CRANKSHAFT PTO SIDE - Call your local BRP dealership |
| 21 |
420819213 |
Crankshaft, MAG Side This part replaces 420819210. |
| 22 |
293800060 |
Loctite 243, 10 ml This part replaces 420899785. |
| 23 |
293800070 |
Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 24 |
420897341 |
Loctite,14486/10cc |
| 25 |
Not |
Available As Spare Part - BP-energrease LS3 |
| 26 |
420899271 |
Petamo Grease, Ghy133n, 400 G |
| 27 |
779119 |
NEEDS DESCRIPTION This part replaces 413802900. |
