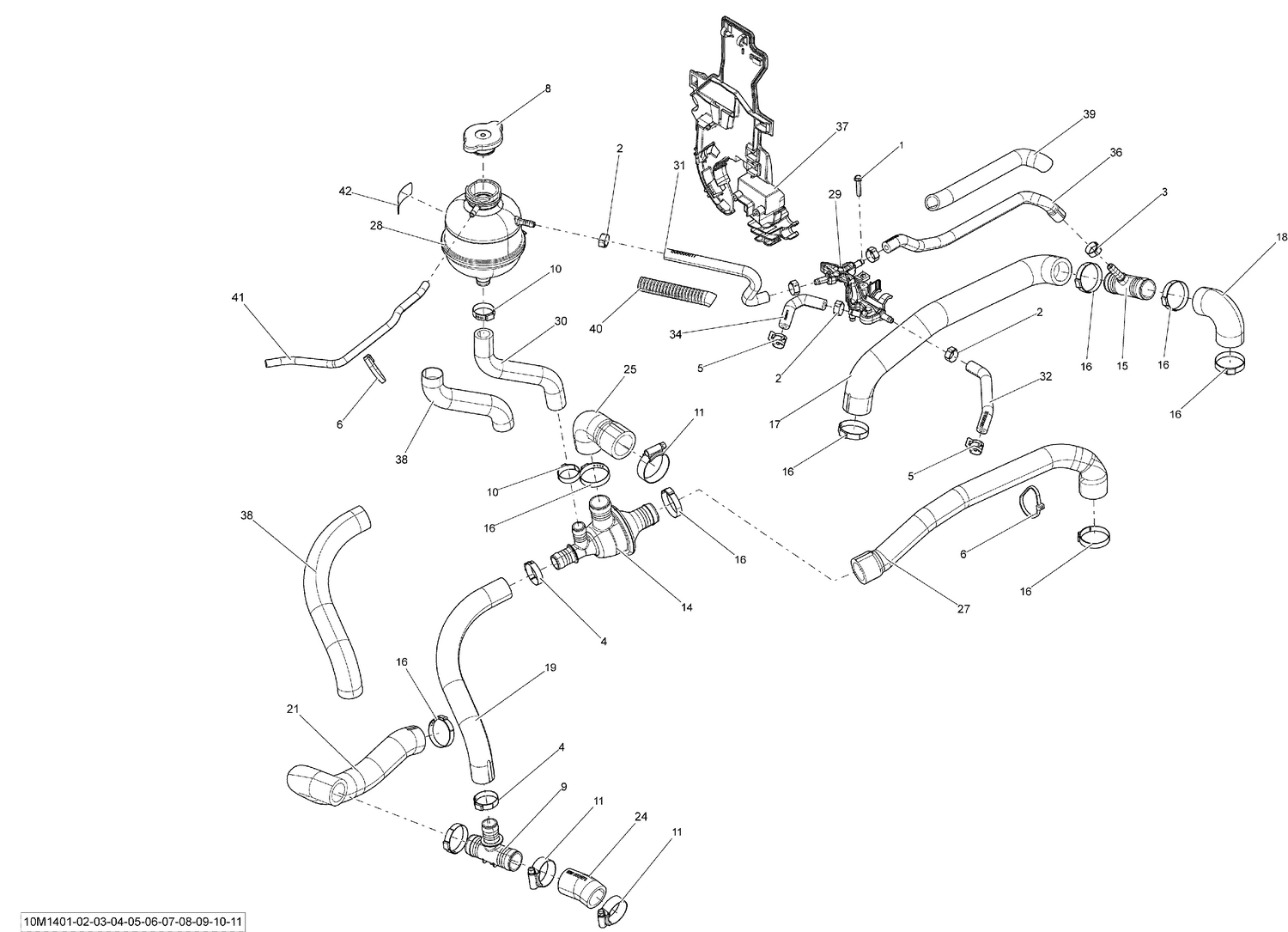

01- Cooling System 800 R ETEC
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 241152540 | Hex. Flange Screw K50 X 2.24 X 25 |
| 2 | 293650046 | Oetiker Clamp |
| 3 | 293650047 | Crimp Clamp, 15.3-706R |
| 4 | 293650099 | Crimp Clamp |
| 5 | 293650210 | Spring Clamp |
| 6 | 414115200 | Tie-Rap 180 mm |
| 8 | 509000180 | Radiator Pressure Cap |
| 9 | 509000372 | T-Fitting |
| 10 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 11 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 14 | 509000499 | Thermostat Housing |
| 15 | 509000510 | T-Fitting |
| 16 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 17 | 509000670 | Radiator Hose |
| 18 | 509001066 | Radiator Hose This part replaces 509000671. |
| 19 | 509000672 | Bypass Hose |
| 21 | 509000673 | Radiator Hose |
| 24 | 509000997 | Engine Inlet Hose This part replaces 509000674. |
| 25 | 509000678 | Engine Outlet Hose |
| 27 | 509000679 | Thermostat Outlet Hose |
| 28 | 509000802 | Coolant Tank |
| 29 | 509000803 | Bleed Collector |
| 30 | 509000812 | Filling Hose |
| 31 | 509000817 | HOSE - Call your local BRP dealership |
| 32 | 509000818 | Bleeder Hose |
| 34 | 509000819 | Bleeder Hose |
| 36 | 509000906 | Bleeder Hose |
| 37 | 509000973 | TANK-SUPPORT - Call your local BRP dealership This part replaces 509000908. |
| 38 | 219704421 | Protector Tube 32 Mm 1000Mm Long |
| 39 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 40 | 219704400 | Was 409901800 Tubing (13 mm) |
| 41 | 219704360 | Hose 6 Mm 15000Mm Long |
| 42 | 516005904 | Warning Decal |
