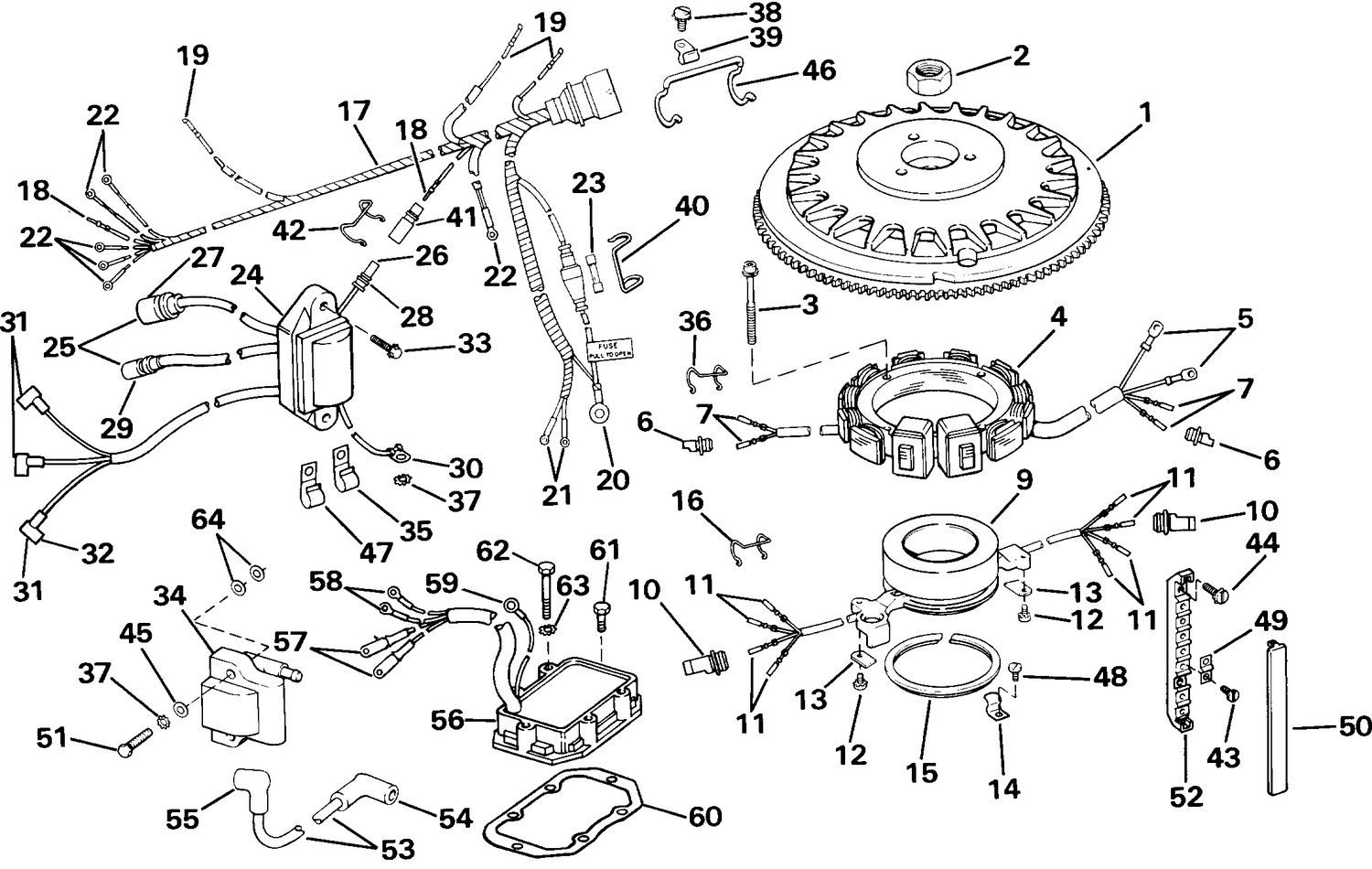

| Ref | Part Number | Description |
|---|
| 1 |
0582403 |
FLYWHEEL ASSY |
| 1 |
0583844 |
FLYWHEEL ASSY. This part replaces 0582572. |
| 2 |
0323599 |
LOCKNUT This part replaces 0316828. |
| 3 |
0512321 |
SCREW, Stator mount 175, 185, 235 |
| 4 |
0582574 |
STATOR ASSY., 150 |
| 4 |
0582867 |
STATOR ASSY., 10 amp |
| 6 |
0511989 |
CONNECTOR |
| 9 |
0582394 |
TIMER BASE & SENSOR ASSY |
| 13 |
0511387 |
CLAMP |
| 14 |
0326439 |
CLAMP, Leads |
| 15 |
0313666 |
RET., Distributor base 1 |
| 16 |
0322549 |
DISPOSITIF DE RETENUE, bouchon |
| 17 |
0582915 |
ENGINE CABLE ASSY. |
| 24 |
0582510 |
POWER PACK, 2.6 model |
| 24 |
0582651 |
POWER PACK |
| 27 |
0511449 |
COMMECTOR, Coil to power pack |
| 28 |
0123404 |
CONNECTOR, 1-socket plug |
| 29 |
0511616 |
CLAMP, Cable |
| 33 |
0328726 |
SCREW (Use existing coil screw) |
| 34 |
0582508 |
COIL ASSY |
| 35 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 38 |
0303311 |
SCR,Clamp,eng cable |
| 41 |
0123405 |
CONNECTOR |
| 43 |
0329182 |
VIS, borne |
| 44 |
0306644 |
VIS, capteur de papillon |
| 47 |
0310441 |
CLAMP, CPS lead This part replaces 0310493. |
| 49 |
0315004 |
FIL DE LIAISON, bornier |
| 50 |
0395357 |
COVER ASSY |
| 51 |
0328726 |
SCREW (Use existing coil screw) |
| 52 |
0329895 |
BORNIER |
| 53 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 56 |
0395204 |
RECTIFIER & REGULATOR This part replaces 0395391. |
| 60 |
0322858 |
GASKET |
| 61 |
0306049 |
SCREW |
| 62 |
0321375 |
SCREW |
