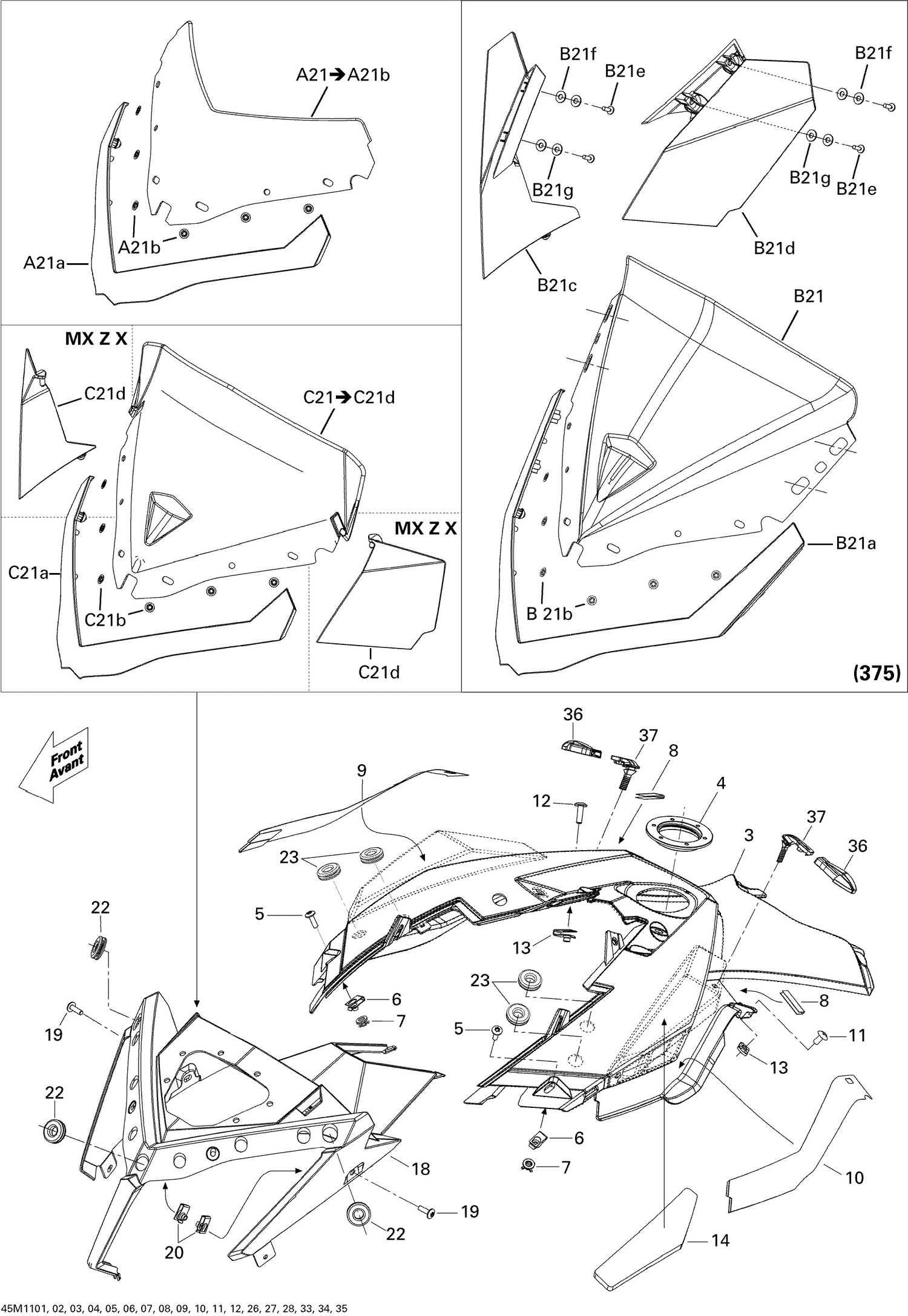

| Ref | Part Number | Description |
|---|
| A21 |
XXX |
Not Available As Spare Parts |
| A21a |
XXX |
Not Available As Spare Parts |
| A21b |
XXX |
Not Available As Spare Parts |
| B21a |
517303607 |
Windshield Support |
| B21b |
732610072 |
Push Nut |
| B21c |
517303604 |
RH Air Deflector |
| B21d |
517303605 |
LH Air Deflector |
| B21e |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| B21f |
250200025 |
Washer M5 |
| B21g |
250200024 |
Rubber Washer 5 mm |
| C21 |
XXX |
Not Available As Spare Parts |
| C21a |
XXX |
Not Available As Spare Parts |
| C21b |
XXX |
Not Available As Spare Parts |
| C21c |
XXX |
Not Available As Spare Parts |
| C21d |
XXX |
Not Available As Spare Parts |
| 3 |
517304666 |
Roadster Red Console |
| 4 |
517304518 |
Console Nut |
| 5 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 6 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 7 |
XXX |
Not Available As Spare Parts |
| 8 |
517304105 |
Console Decal |
| 9 |
517304103 |
RH Decal |
| 10 |
517304104 |
LH Decal |
| 11 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 12 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 13 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 14 |
XXX |
Not Available As Spare Parts |
| 18 |
517304575 |
Gauge Support |
| 19 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 20 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250100113. |
| 22 |
517303756 |
Grommet |
| 23 |
517303756 |
Grommet |
| 36 |
860200239 |
Black Latch Kit |
