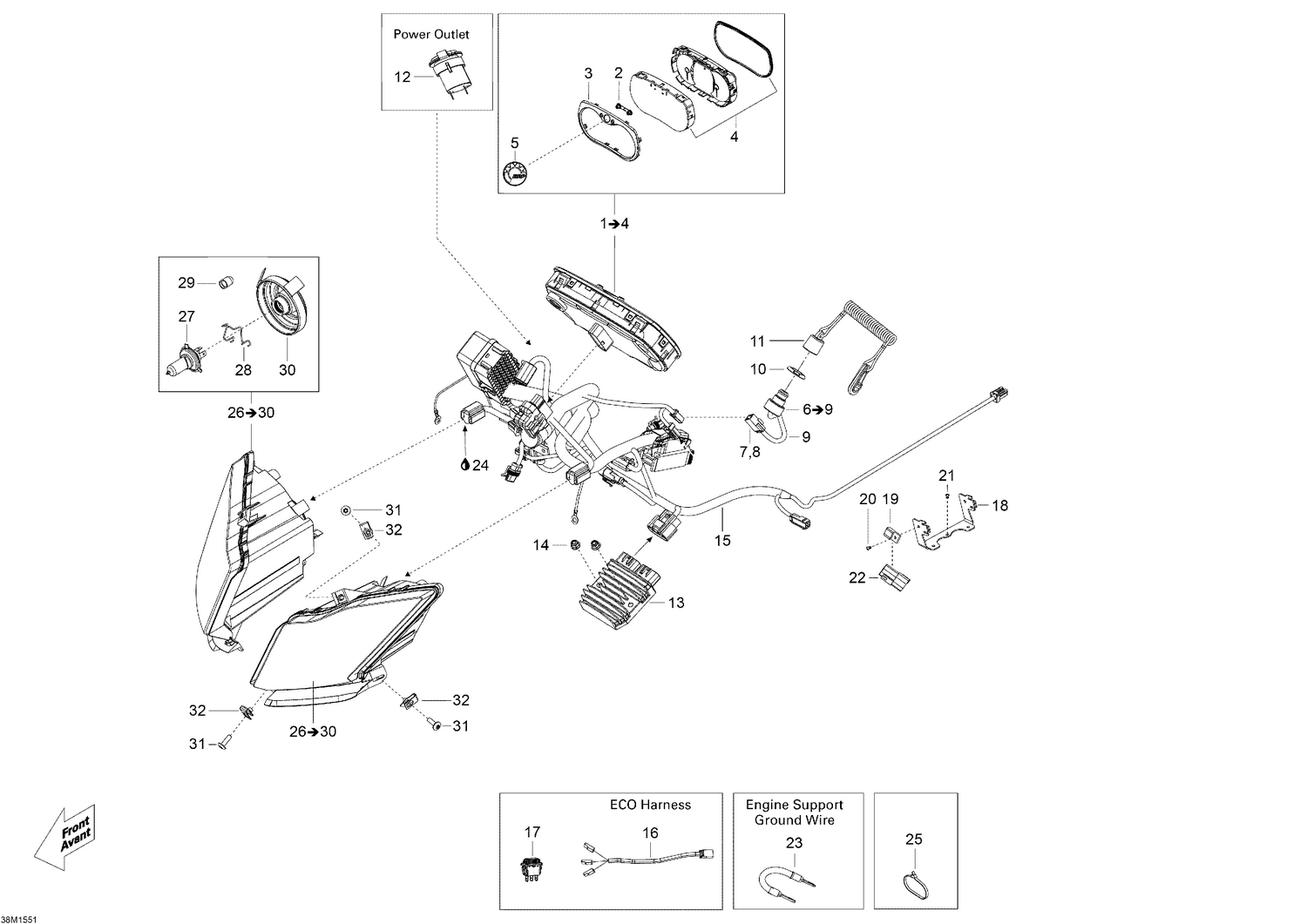

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Speedometer Button |
| 3 |
Not |
Available As Spare Part - Gauge Ring |
| 4 |
Not |
Available As Spare Part - Lens And Seal |
| 5 |
516006224 |
BRP Logo 20MM x 2MM This part replaces 219902677. |
| 7 |
515175232 |
Male Terminal |
| 8 |
515175494 |
Male Housing, 3 Circuits |
| 9 |
409902000 |
Tubing 12 mm |
| 10 |
278002963 |
Safety Nut (DESS Switch) |
| 11 |
515178284 |
DESS This part replaces 515177057. |
| 11 |
860200907 |
DESS CAP (LEARNING KEY) - Call your local BRP dealership |
| 12 |
710001248 |
DC Outlet |
| 13 |
710010539 |
Voltage Regulator This part replaces 515177325. |
| 14 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 15 |
515177482 |
Main Harness |
| 16 |
515179615 |
Eco Switch Wiring Harness This part replaces 515177568. |
| 17 |
515177569 |
ECO Rocker Switch |
| 18 |
515177073 |
FUSEBOX SUPPORT - Call your local BRP dealership |
| 19 |
270000141 |
Clip |
| 20 |
293150037 |
Avdel Rivet 3/16" |
| 21 |
390402200 |
Pop Rivet 3/16" |
| 22 |
515176234 |
FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 23 |
515176883 |
Ground Wire |
| 24 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 25 |
293750001 |
Tie Wrap 94 mm |
| 25 |
293750002 |
Tie Wrap 142 mm |
| 25 |
414115200 |
Tie-Rap 180 mm |
| 27 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 28 |
Not |
Available As Spare Part - Bulb Holder |
| 29 |
515176498 |
Cap |
| 30 |
219800280 |
Rubber Cap Protector This part replaces 515176499. |
| 31 |
250000722 |
Torx Screw M6 X 20 |
