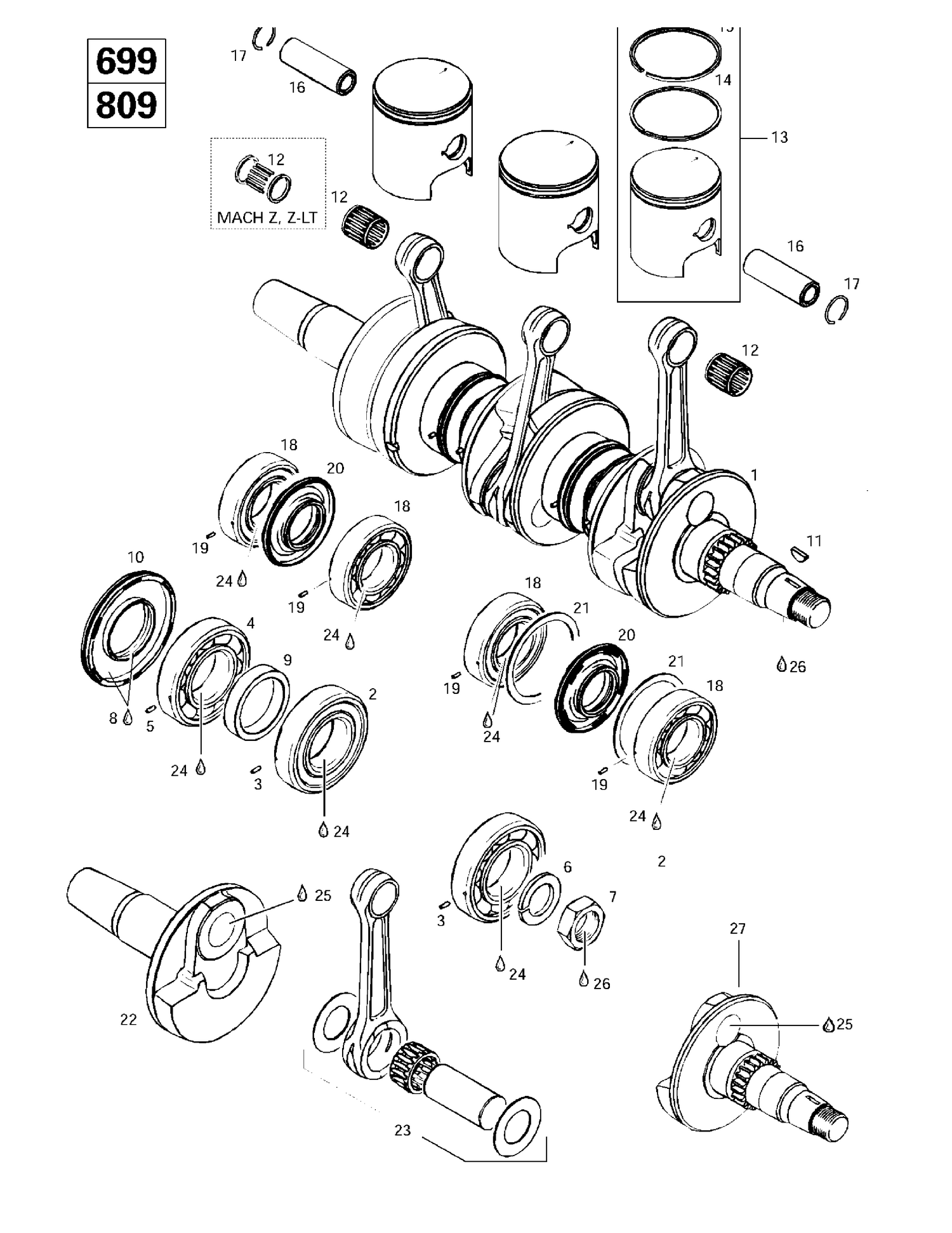

| Ref | Part Number | Description |
|---|
| 6 |
420945759 |
Lock Washer, 22 mm |
| 7 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
| 8 |
413707000 |
Dow Corning 111, 150 g |
| 9 |
420847855 |
Distance Sleeve |
| 10 |
420931280 |
Oil Seal |
| 11 |
420246015 |
Woodruff Key |
| 16 |
420916186 |
GUDGEON PIN - Call your local BRP dealership |
| 17 |
420945735 |
Piston Circlip |
| 24 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 25 |
Not |
Available As Spare Part - Loctite 14486, 10 cc |
| 26 |
293800060 |
Loctite 243, 10 ml This part replaces 413703000. |
