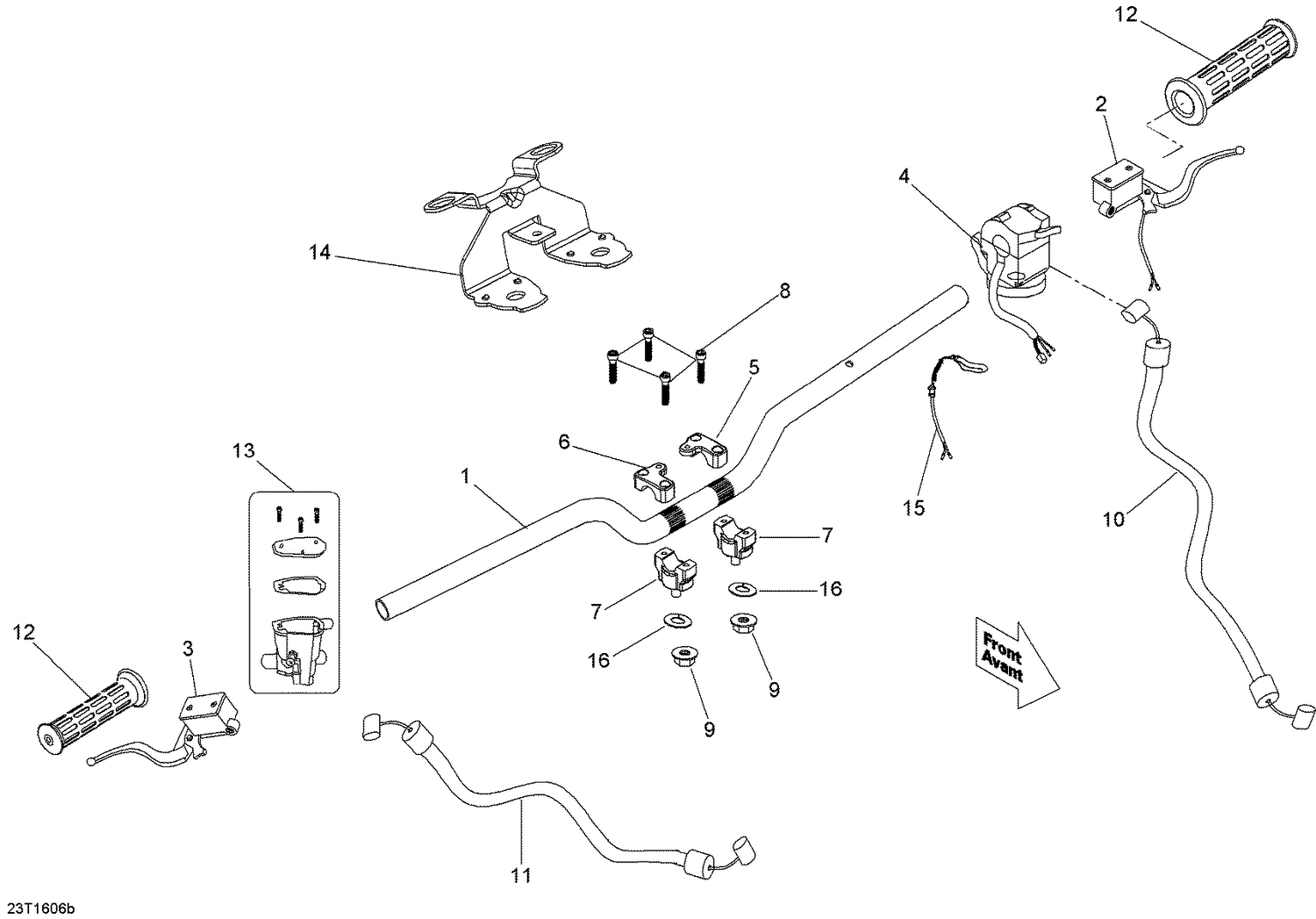

07- Handlebar
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V53100DGF06HLL | Handle Bar |
| 2 | V53178DGF03HLL | LH Brake Lever |
| 3 | V53179DGF02HLL | RH Brake Lever |
| 4 | V35160DGF04HLL | Multi-Fonction Switch |
| 5 | V53170MAA020BKLL | LH Upper Handle Bar Clamp |
| 6 | V53175MAA020BKLL | RH Upper Handle Bar Clamp |
| 7 | V45517DGF04HLL | Lower Handle Bar Clamp |
| 8 | V9100006025LL | Hexagonal Bolt M6 X 25 |
| 9 | 232501416 | Elastic Flange Nut M10 |
| 10 | V43316DGF060LL | Choke Cable |
| 11 | V17910DGF03HLL | Throttle Cable |
| 12 | V53140DGF000BK | Handle Grip |
| 13 | V53177CEK010BKLL | Housing Throttle Ass. |
| 14 | V50223DGF03H | Support |
| 15 | V35110DGF00H | Tether Cord |
