Parts Catalog

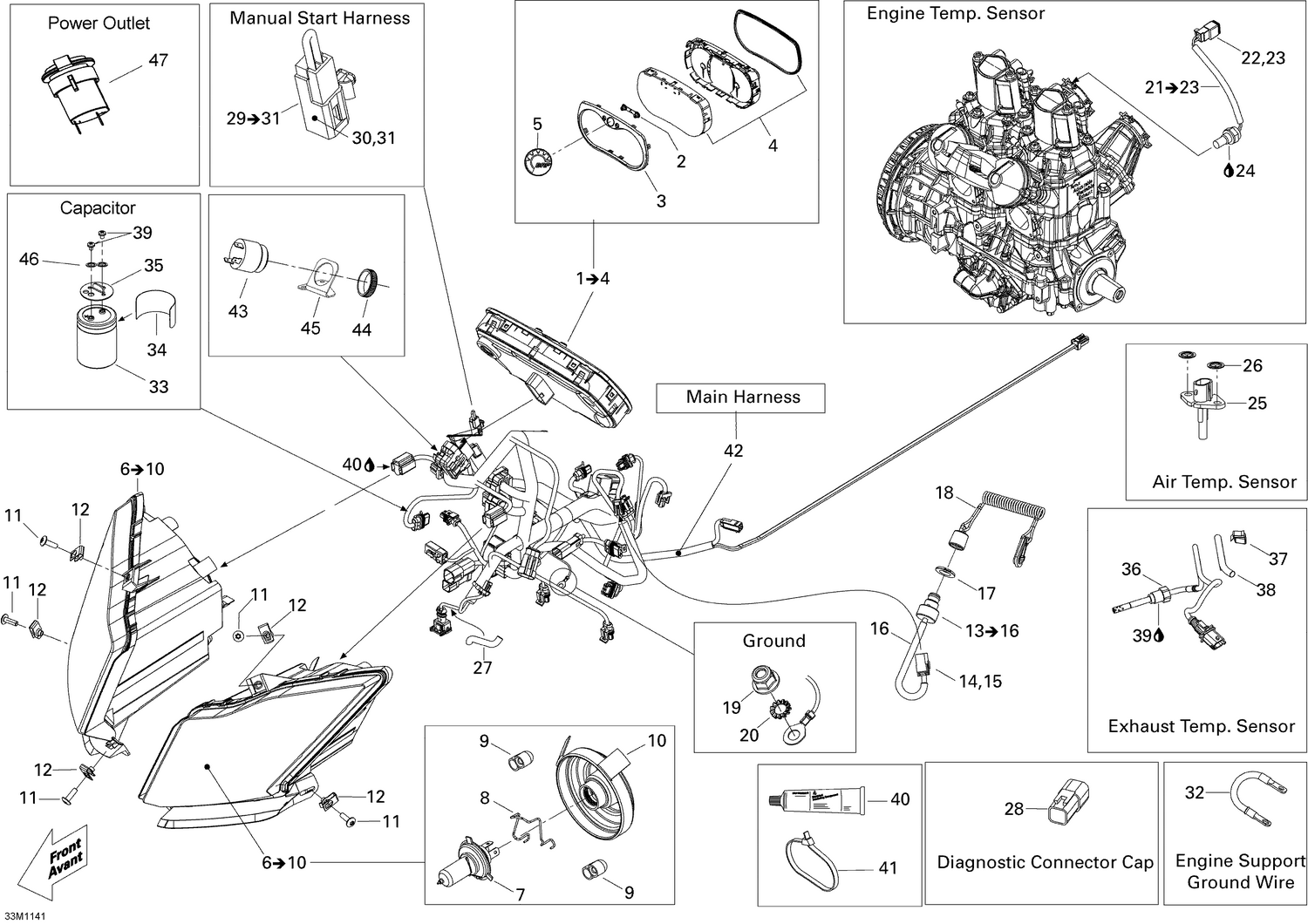

10- Electrical System

Parts (45)

Ref	Part Number	Description
2	415129355	Speedometer Button
3	415129370	Gauge Ring
4	415129349	Lens
5	516006224	BRP Logo 20MM x 2MM This part replaces 219902677.
7	515176274	Halogen Bulb, 60/55 W, 12 V ( H4 )
8	Not	Available As Spare Part - Bulb Holder
9	515176498	Cap
10	219800280	Rubber Cap Protector This part replaces 515176499.
11	250000722	Torx Screw M6 X 20 This part replaces 250000128.
12	250100198	Panel Nut M6 X 1.0 This part replaces 250100113.
14	515175232	Male Terminal
15	515175494	Male Housing, 3 Circuits
16	409902000	Tubing 12 mm
17	278002963	Safety Nut (DESS Switch) This part replaces 278000508.
18	515178284	DESS This part replaces 515177057.
19	233261414	Hex. Flange Elastic Nut M6 x 1.0
20	234461608	External Serrated Lock Washer 6 mm
22	515175670	Female Terminal Housing, 2 Circuits
23	278000632	Female Terminal
24	219704455	Was 293800018 Loctite 592, 50 ml
25	515176366	Air Temperature Sensor
26	389804300	Push Nut
27	219704425	Tubing 6 Mm 3000Mm Long
28	278002704	Diagnostic Connector This part replaces 278002148.
30	515175232	Male Terminal
31	710000667	Male Housing, 2 Circuits
32	515176358	Ground Wire
33	515177272	Capacitor This part replaces 515176349.
34	516004570	Capacitor Decal
35	515177193	Cap This part replaces 515176351.
36	514054641	Temperature Sensor
37	414227300	Clip
38	219704425	Tubing 6 Mm 3000Mm Long
39	219704461	LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
39	250000462	Socket Head Screw M10 X 32
40	219704453	Was 293550004 Dielectric Grease, 150 g
41	293750001	Tie Wrap 94 mm
41	293750002	Tie Wrap 142 mm
41	293750008	Tie Wrap 368 mm
41	414115200	Tie-Rap 180 mm
42	515177017	WIRING HARNESS_CHASSIS - Call your local BRP dealership
43	515176035	HORN - Call your local BRP dealership
44	414805101	PLASTIC NUT - Call your local BRP dealership
45	515176822	REVERSE BUZZ HOLDER - Call your local BRP dealership
46	250200026	Lock washer
