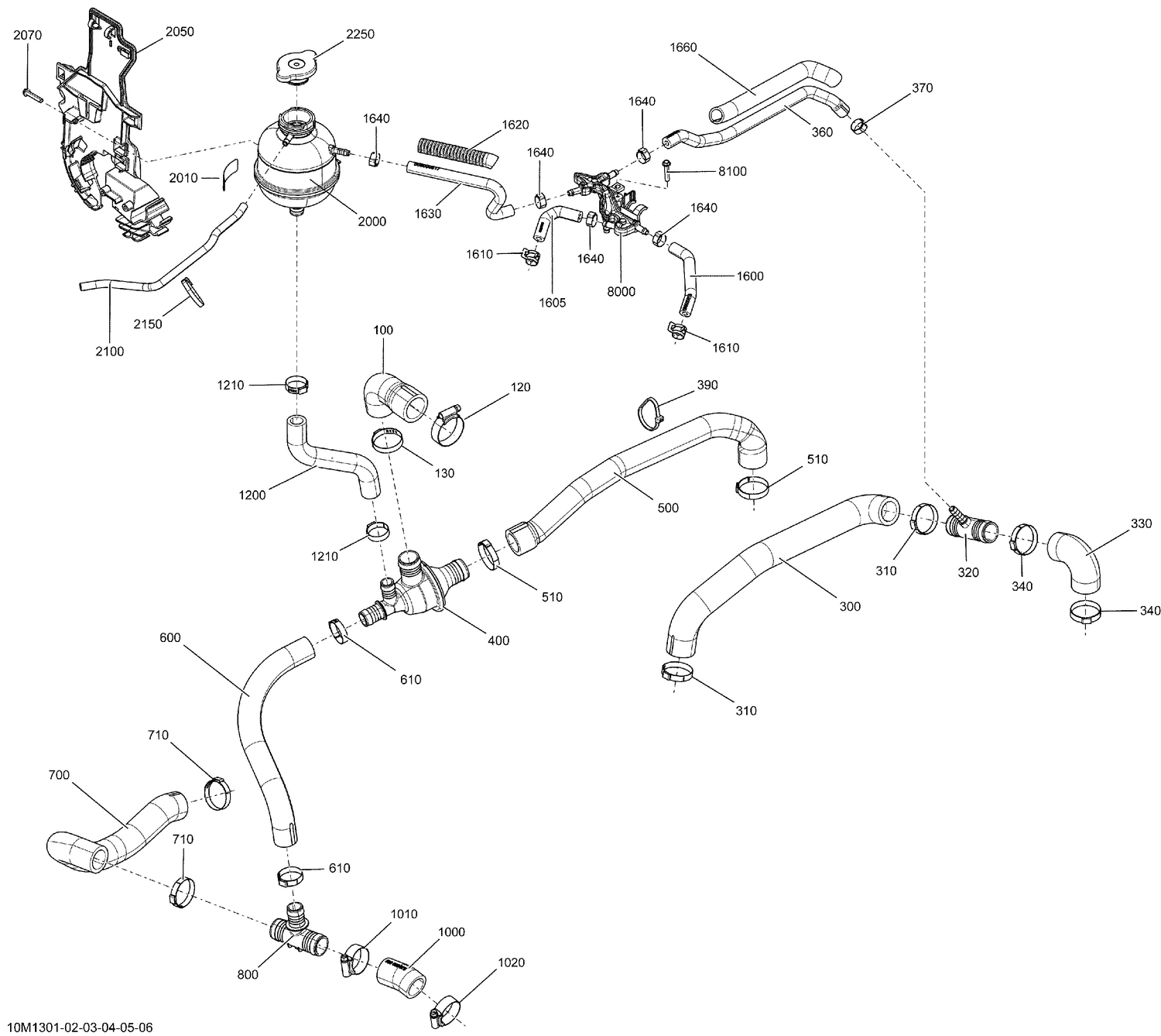

| Ref | Part Number | Description |
|---|
| 100 |
509000678 |
Engine Outlet Hose |
| 120 |
509000443 |
Aba Gear Clamp, 26-38 MM |
| 130 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 300 |
509000670 |
Radiator Hose |
| 310 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 320 |
509000510 |
T-Fitting |
| 330 |
509001066 |
Radiator Hose This part replaces 509000671. |
| 340 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 360 |
509000906 |
Bleeder Hose This part replaces 509000815. |
| 370 |
293650047 |
Crimp Clamp, 15.3-706R |
| 390 |
414115200 |
Tie-Rap 180 mm |
| 400 |
509000499 |
Thermostat Housing |
| 500 |
509000679 |
Thermostat Outlet Hose |
| 510 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 600 |
509000672 |
Bypass Hose |
| 610 |
293650099 |
Crimp Clamp |
| 700 |
509000673 |
Radiator Hose |
| 710 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 800 |
509000372 |
T-Fitting |
| 1010 |
509000443 |
Aba Gear Clamp, 26-38 MM |
| 1020 |
509000443 |
Aba Gear Clamp, 26-38 MM |
| 1200 |
509000812 |
Filling Hose |
| 1210 |
509000442 |
Oeticker Gear Clamp, 25.6-706R |
| 1600 |
509000818 |
Bleeder Hose |
| 1605 |
509000819 |
Bleeder Hose |
| 1610 |
293650210 |
Spring Clamp |
| 1620 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 1630 |
509000817 |
HOSE - Call your local BRP dealership |
| 1640 |
293650046 |
Oetiker Clamp |
| 1660 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 2000 |
509000802 |
Coolant Tank |
| 2010 |
516005904 |
Warning Decal |
| 2050 |
509000973 |
TANK-SUPPORT - Call your local BRP dealership This part replaces 509000813. |
| 2070 |
241152540 |
Hex. Flange Screw K50 X 2.24 X 25 |
| 2100 |
219704360 |
Hose 6 Mm 15000Mm Long |
| 2150 |
414115200 |
Tie-Rap 180 mm |
| 2250 |
509000180 |
Radiator Pressure Cap |
| 8000 |
509000803 |
Bleed Collector |
