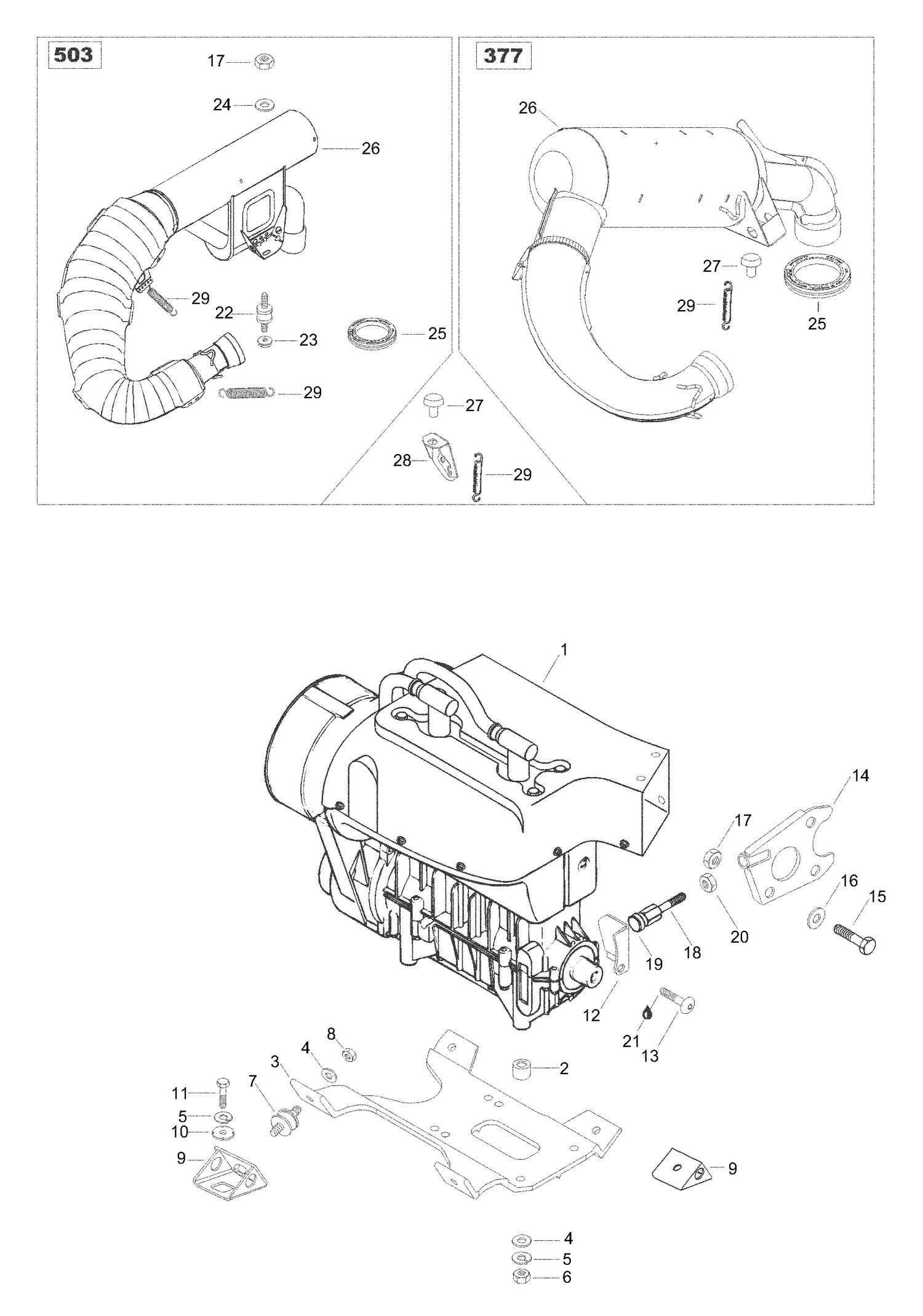

| Ref | Part Number | Description |
|---|
| 1 |
400308905 |
Engine <<377>> |
| 2 |
512057700 |
Spacer |
| 3 |
512059134 |
Engine support |
| 4 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 5 |
20113 |
Spring washer |
| 6 |
232006414 |
Hex. Nut M10 This part replaces 33004. |
| 7 |
570127700 |
RUBBER MOUNT - Call your local BRP dealership |
| 8 |
33082 |
Nut elastic M10 |
| 9 |
512050900 |
Support |
| 10 |
512056700 |
Lock washer |
| 11 |
40040 |
Screw M10x25 |
| 12 |
512059198 |
Stopper plate |
| 13 |
40882 |
Screw M8x20 |
| 14 |
517271800 |
Support plate |
| 15 |
40037 |
Screw M8x25 |
| 16 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 17 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 18 |
517244200 |
Screw |
| 19 |
570025100 |
Gummi damper |
| 20 |
33063 |
Nut M12 |
| 21 |
293800005 |
Loctite 271, 10ml |
| 22 |
Not |
Available As Spare Part - Rubber bumper - DOES NOT APPLY TO THIS MODEL |
| 23 |
Not |
Available As Spare Part - Elastic flanged nut M8 - DOES NOT APPLY TO THIS MODEL |
| 24 |
Not |
Available As Spare Part - Washer - DOES NOT APPLY TO THIS MODEL |
| 25 |
570039000 |
EXHAUST GROMMET - Call your local BRP dealership |
| 26 |
514052852 |
Muffler |
| 27 |
514053654 |
Rubber Bumper This part replaces 570048700. |
| 28 |
514044100 |
Muffler support |
