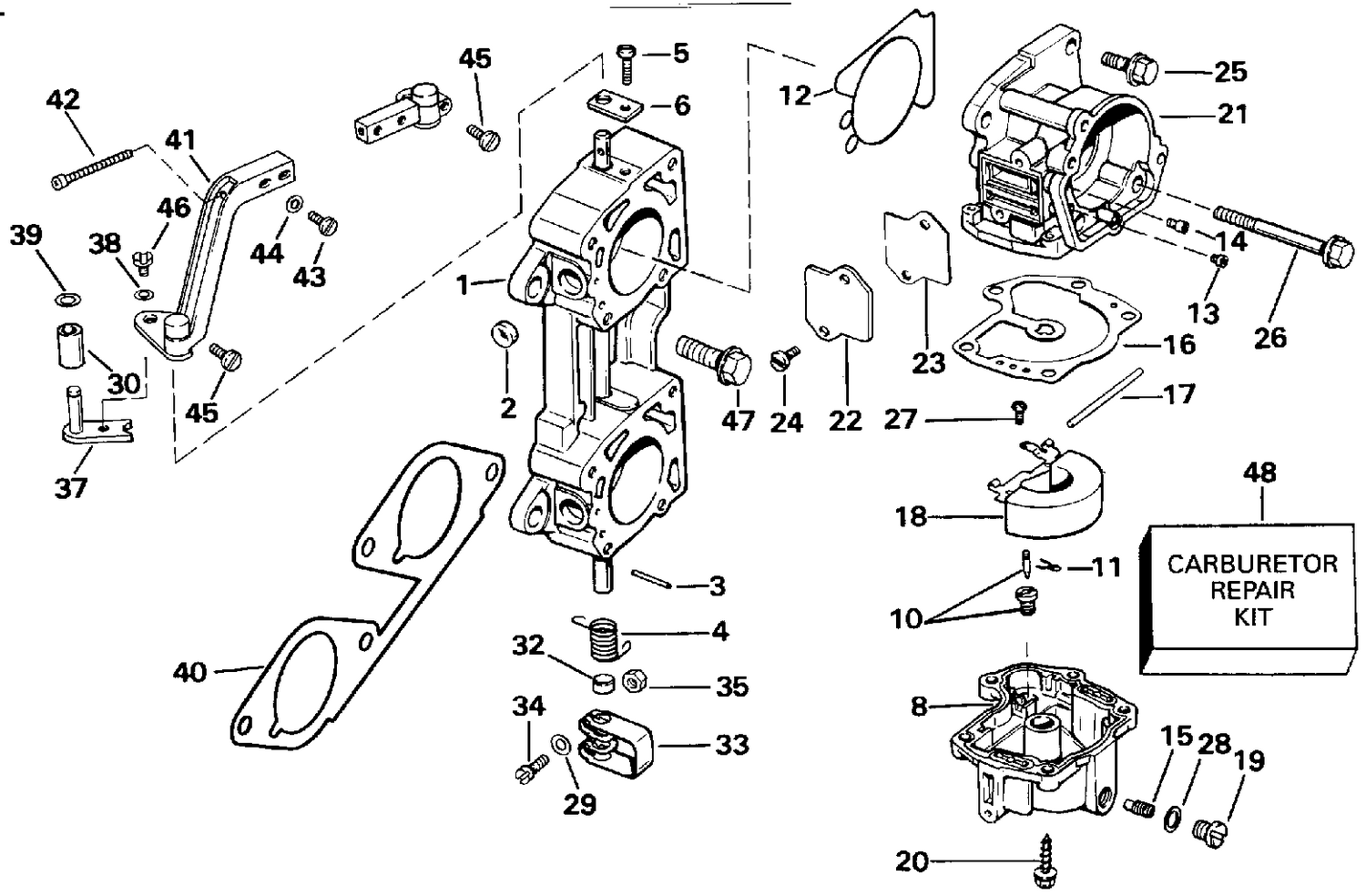

| Ref | Part Number | Description |
|---|
| 1 |
0397581 |
THROTTLE BODY ASSY. |
| 1 |
0435721 |
THROTTLE BODY ASSY., 250 |
| 11 |
0336842 |
CLIP, SPRING |
| 12 |
0332253 |
REAL,Carb. body, 300 |
| 13 |
0328560 |
ORIFICE, #47, 150 |
| 14 |
0325828 |
ORIFICE #43, 250 |
| 14 |
0325829 |
HIGH SPEED ORIFICE, No. 42 |
| 21 |
0432512 |
CARB, BODY ASSY. |
| 21 |
0435406 |
CARB. BODY ASSY., 250 |
| 22 |
0328640 |
COVER PLATE |
| 22 |
0335647 |
COVER PLATE |
| 23 |
0327223 |
GASKET, Cover plate |
| 23 |
0335648 |
GASKET, Cover plate |
| 26 |
0335223 |
VIS, poignée vers capot bâbord/tribord |
| 30 |
0432639 |
GALET, contre-came |
| 32 |
0317162 |
BUSHING, Link |
| 33 |
5000533 |
CONNECTOR ASSY., Throttle shaft This part replaces 0327071. |
| 34 |
5000533 |
CONNECTOR ASSY., Throttle shaft This part replaces 0337041. |
| 37 |
0432640 |
LEVER & PIN, Cam follower |
| 39 |
0324678 |
JOINT TORIQUE Galet de came de papillon |
| 40 |
0332319 |
GASKET, Carburetor mounting |
| 41 |
0435908 |
LINK, Carburetor This part replaces 0434891. |
| 42 |
0335229 |
SCREW, Bracket to crkc. cover This part replaces 0337540. |
| 45 |
0319108 |
SCREW BELCRANK |
| 46 |
0335739 |
SCREW, Conn. brkt. to mntg. brkt. |
| 48 |
0439079 |
CARB. REPAIR KIT This part replaces 0435678. |
| 0398349 |
0398349 |
CARB ASSY., |
| 0435717 |
0435717 |
CARBURETOR ASSEMBLY, 250 |
