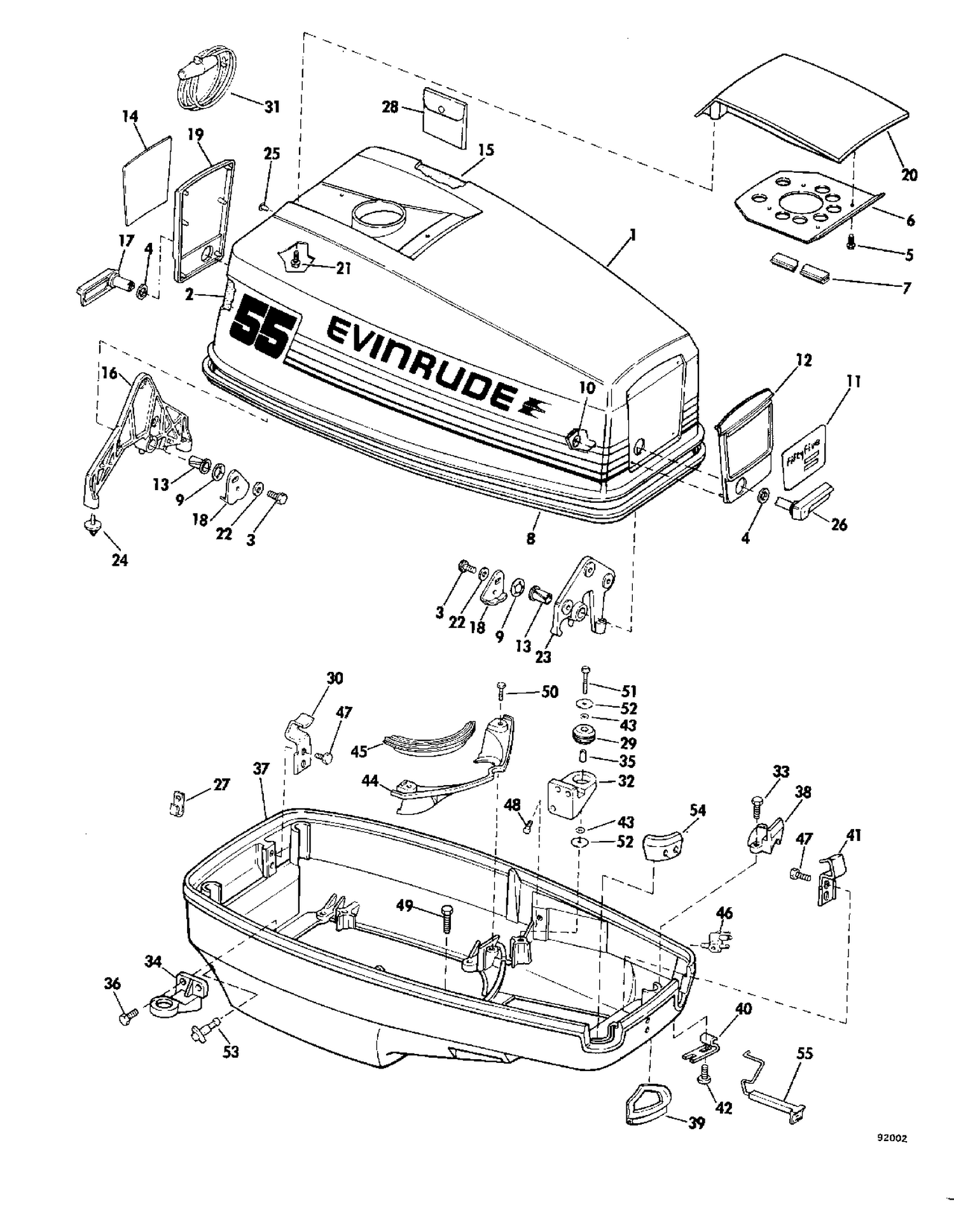

| Ref | Part Number | Description |
|---|
| 1 |
0281231 |
MOTOR COVER ASSY |
| 1 |
0281232 |
MOTOR COVER ASSY |
| 3 |
0318468 |
SCRAEW, Latch to handle |
| 6 |
0208200 |
BAFFLE , Tilt handle |
| 7 |
0208459 |
SEAL, Baffle |
| 8 |
0208154 |
SEAL, Motor cover, upper |
| 11 |
0208338 |
PLATE, Applique front |
| 11 |
0208502 |
PLATE, Applique front |
| 12 |
0208340 |
APPLIQUE, Front |
| 13 |
0553769 |
BUSHING |
| 14 |
0208339 |
PLATE, Applique, rear |
| 16 |
0210509 |
LOCATING BRACKET, Rear This part replaces 0206529. |
| 17 |
0208011 |
HANDLE AND SHAFT |
| 19 |
0207925 |
APPLIQUE, Rear |
| 23 |
0206527 |
LOCATING BRACKET, Front |
| 26 |
0208503 |
LATCH, Handle front |
| 27 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0310440. |
| 28 |
0314494 |
BAG EMERGENCY STARTER ROPE |
| 29 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 30 |
0323474 |
HOOK, Cover to housing |
| 31 |
0378347 |
CORDE DE LANCEUR |
| 32 |
3106002 |
SUPPORT, Front port |
| 33 |
0307151 |
SCREW |
| 34 |
0327196 |
SUPPORT, Front stbd This part replaces 0320300. |
| 35 |
0302406 |
SLEEVE |
| 36 |
0551793 |
SCREW |
| 37 |
0322123 |
LOWER MOTOR COVER |
| 37 |
0324963 |
LOWER MOTOR COVER |
| 38 |
0318286 |
CLAMP |
| 39 |
0318574 |
SEAL, Steering arm |
| 40 |
0333739 |
RETAINER, Fuel hose to cover This part replaces 0318313. |
| 41 |
0208252 |
HOOK, Front |
| 42 |
0310539 |
SCREW, Clamp choke solenoid |
| 44 |
0318557 |
FRAME, Front |
| 45 |
0316064 |
SEAL, Frame |
| 46 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 47 |
0304027 |
VIS, arbre de commande de sens de marche |
| 48 |
0031311 |
SCREW, Fuel conn. |
| 49 |
0300646 |
VIS, ancrage |
| 50 |
0312299 |
VIS, serre-câble |
| 51 |
0308995 |
SCREW, Front mount |
| 53 |
0321885 |
NIPPLE |
| 54 |
0318284 |
CLAMP, Cable |
| 54 |
0320295 |
GROMMET, Control cables |
| 55 |
0389748 |
CHOKE KNOB AND ROD |
| 0281304 |
0281304 |
DECAL SET |
| 0281337 |
0281337 |
DECAL SET |
