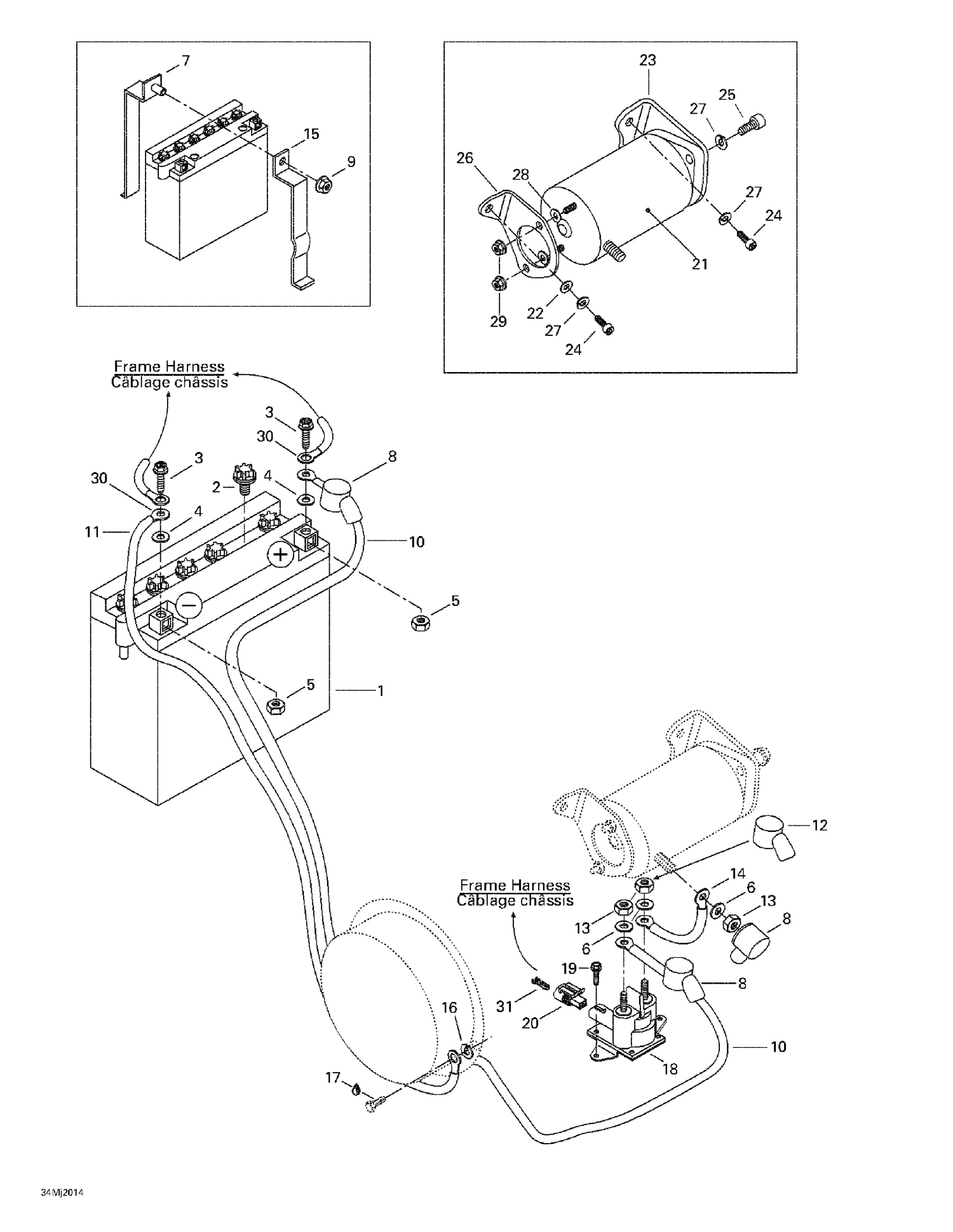

10- Electrical System
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 410300800 | Battery Cap |
| 3 | 207161644 | Hex. Screw M6 X 16 |
| 4 | 391302100 | FLAT WASHER - Call your local BRP dealership |
| 5 | 232061414 | Hex. Nut M6 This part replaces 228061045. |
| 6 | 234061410 | Flat Washer 6 mm |
| 7 | 517290400 | Steel Strip (Weld) |
| 8 | 570064200 | PROTECTION CAP - Call your local BRP dealership |
| 9 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 10 | 515166400 | Battery Wire |
| 11 | 515175425 | Ground Wire |
| 12 | 278000020 | PROTECTION CAP - Call your local BRP dealership |
| 13 | 232561414 | Elastic Stop Nut M6 |
| 14 | 515175101 | Battery Wire |
| 15 | 517290402 | Steel Strip |
| 16 | 394001900 | EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership |
| 17 | 293800005 | Loctite 271, 10 ml |
| 18 | 278003012 | Starter Relay This part replaces 278001376. |
| 19 | 210251180 | HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 20 | 278001113 | Male Connector, 2 Circuits |
| 21 | 515175305 | Electric Starter |
| 22 | 234081410 | Flat Washer 8 mm |
| 23 | 512059209 | Starter Bracket (PTO) |
| 24 | 205082044 | Socket Head Screw M8 X 20 |
| 25 | 205082544 | Socket Head Screw M8 X 25 |
| 26 | 512059208 | Starter Bracket (MAG) |
| 27 | 234181401 | Lock Washer 8 mm |
| 28 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 29 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 30 | 278001392 | Open Barrel Terminal This part replaces 409012600. |
