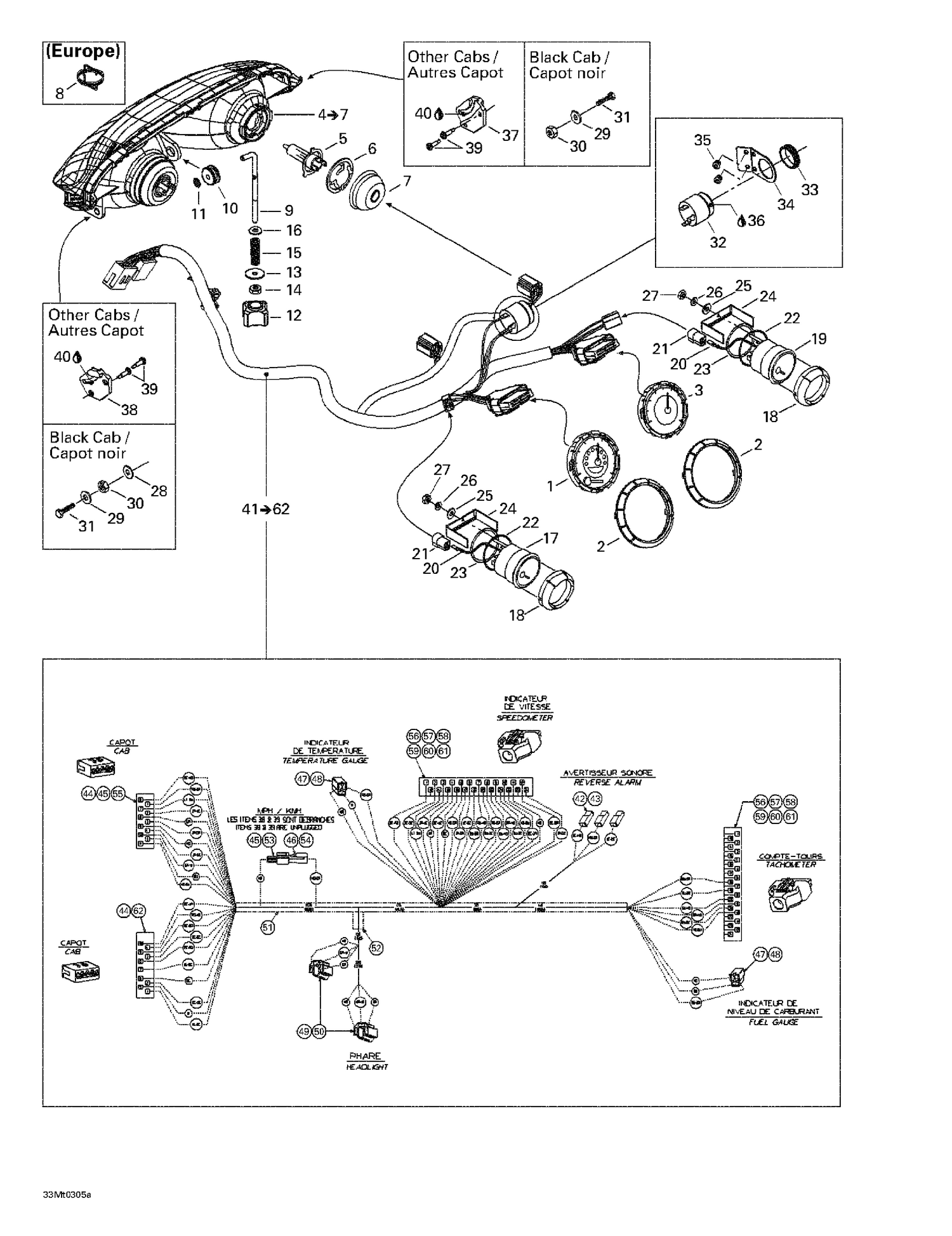

| Ref | Part Number | Description |
|---|
| 1 |
515175747 |
Speedometer, Se-Air |
| 1 |
515175828 |
Speedometer |
| 2 |
515179005 |
Gauge Ring This part replaces 515175651. |
| 3 |
515175943 |
Tachometer |
| 5 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410504401. |
| 6 |
515176385 |
BULB HOLDER - Call your local BRP dealership This part replaces 515175910. |
| 7 |
515175911 |
COVER - Call your local BRP dealership |
| 9 |
517295800 |
ADJUSTER ROD - Call your local BRP dealership |
| 10 |
415100800 |
Grommet - Call your local BRP dealership |
| 11 |
732610072 |
Push Nut |
| 12 |
515175548 |
Handle - Call your local BRP dealership |
| 13 |
224060251 |
Washer |
| 14 |
232561414 |
Elastic Stop Nut M6 |
| 15 |
415100600 |
SPRING - Call your local BRP dealership |
| 16 |
234061410 |
Flat Washer 6 mm |
| 17 |
515175601 |
Temperature Gauge |
| 18 |
515175711 |
RING GAUGE - Call your local BRP dealership |
| 19 |
515175529 |
FUEL GAUGE - Call your local BRP dealership |
| 20 |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 21 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| 22 |
414807200 |
O-RING - Call your local BRP dealership |
| 23 |
517258600 |
WASHER - Call your local BRP dealership |
| 24 |
415099800 |
Case Holder |
| 25 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 26 |
414833700 |
Lock Washer |
| 27 |
414833600 |
NUT - Call your local BRP dealership |
| 32 |
515176035 |
HORN - Call your local BRP dealership This part replaces 515175931. |
| 33 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 34 |
515175688 |
PLATE - Call your local BRP dealership |
| 35 |
390402200 |
Pop Rivet 3/16" |
| 36 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 37 |
517289300 |
RH Support |
| 38 |
517289400 |
LH Support |
| 39 |
732601315 |
Headlamp Screw |
| 40 |
413707500 |
Grease Tube Lmz, 400 G |
| 42 |
409010100 |
Female Terminal |
| 43 |
409010400 |
Female Terminal Housing, 1 Circuit |
| 44 |
515175232 |
Male Terminal |
| 45 |
515175273 |
MALE TERMINAL - Call your local BRP dealership |
| 46 |
515175282 |
Female Terminal |
| 47 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 48 |
409204300 |
Female Housing |
| 49 |
515175321 |
FEMALE TERMINAL - Call your local BRP dealership |
| 50 |
409202700 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 51 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 52 |
219704407 |
Tubing 10 MM 1000MM Long |
| 53 |
515175509 |
MALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 54 |
515175510 |
FEMALE TERMINAL HOUSING, 1 CIRCUIT - Call your local BRP dealership |
| 55 |
515175720 |
MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership |
| 56 |
515175812 |
Plug |
| 57 |
515175801 |
Female Housing, 24 Circuits |
| 58 |
515175802 |
Retainer Block |
| 59 |
515175803 |
Wire Seal |
| 60 |
515175804 |
BLOCK - Call your local BRP dealership |
| 61 |
515175806 |
Female Terminal |
