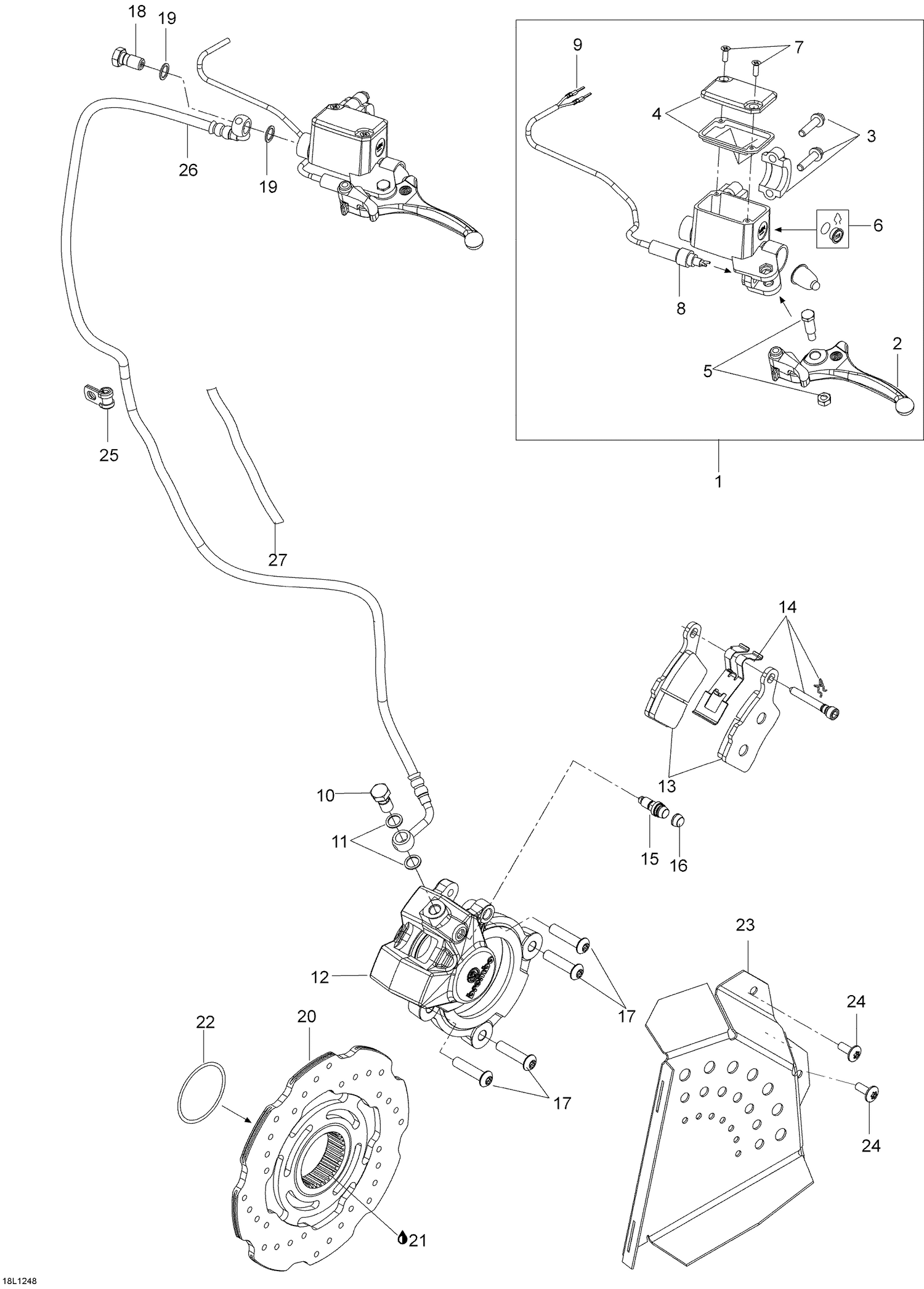

06- Hydraulic Brakes
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 507032598 | Cylinder Master Ass'y This part replaces 507032518. |
| 2 | 507032476 | Lever With Parking Lock |
| 3 | 507032477 | Clamp |
| 4 | 507032478 | Master Cylinder Reservoir Ass'y |
| 5 | 415030000 | Pin Ass'y |
| 6 | Not | Available As Spare Part - Window |
| 7 | 216141260 | SCREW M4 X 12 - Call your local BRP dealership |
| 8 | 507032479 | Microswitch |
| 9 | 515175232 | Male Terminal |
| 10 | 705600628 | Banjo Bolt |
| 11 | 705601628 | Copper Washer This part replaces 705600310. |
| 12 | 507032720 | Brake Caliper This part replaces 507032498. |
| 13 | 507032489 | Brake Pads Kit |
| 14 | 507032722 | Brake Spring Kit This part replaces 507032474. |
| 15 | 507032475 | Bleeder |
| 16 | 414989700 | BOOT-QTS 20 - Call your local BRP dealership |
| 17 | 250000764 | Torx Screw M8 x 35 This part replaces 250000301. |
| 18 | 705600628 | Banjo Bolt |
| 19 | 705601628 | Copper Washer This part replaces 705600310. |
| 20 | 507032513 | Disk |
| 21 | 293800070 | Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 22 | 293300134 | O-Ring |
| 23 | 507032525 | Disk Protector |
| 24 | 250000365 | Torx Screw M6 X 16 |
| 25 | 293650256 | Clamp This part replaces 705600459. |
| 26 | 507032534 | BRAKE HOSE - Call your local BRP dealership This part replaces 507032494. |
