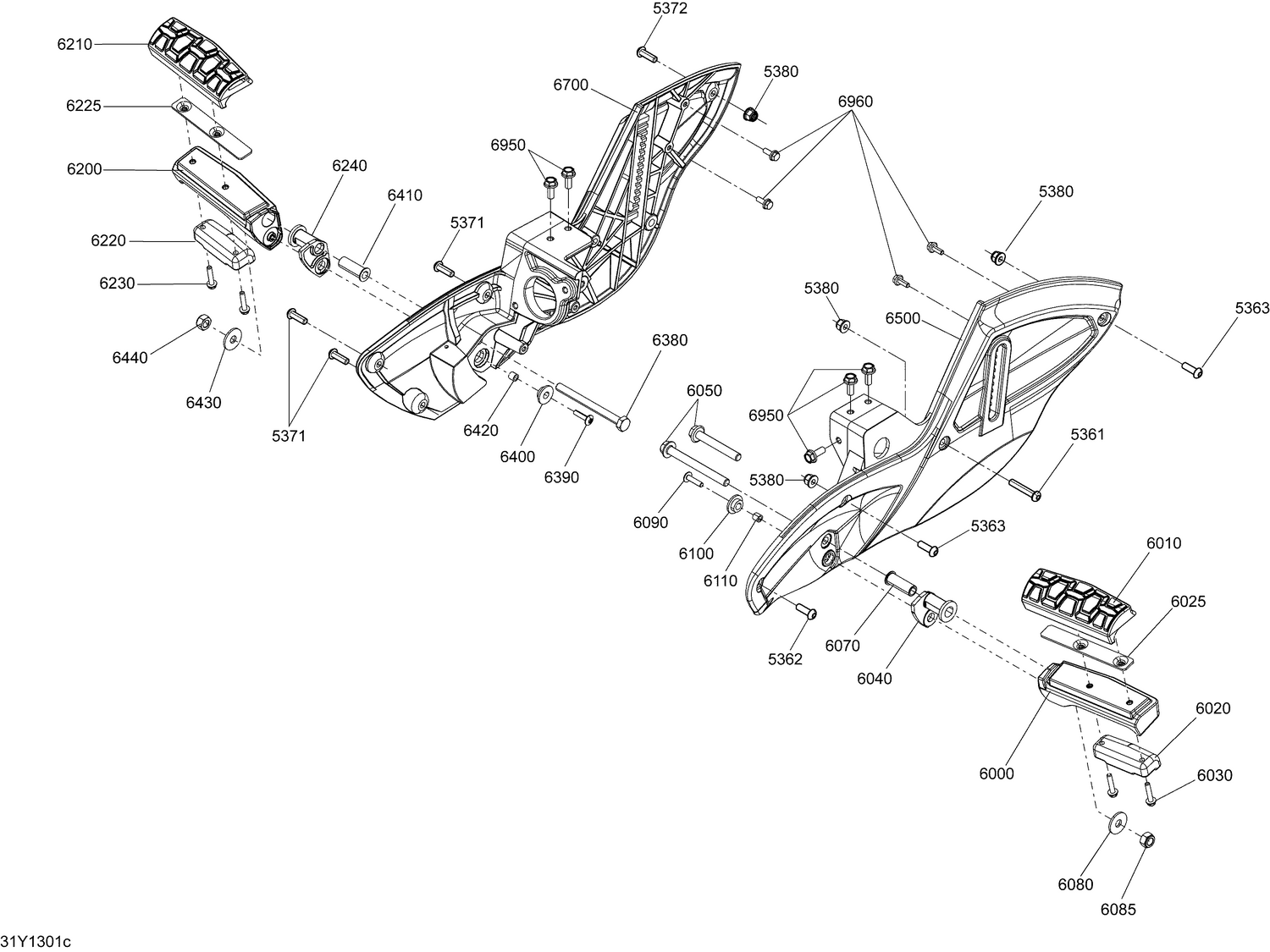

09- Body And Accessories Footrest_RT-S SM5
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 5361 | 205484560 | Socket Screw M8 X 45 |
| 5362 | 205482060 | Socket Head Screw M8 X 20 |
| 5363 | 205482060 | Socket Head Screw M8 X 20 |
| 5371 | 205482060 | Socket Head Screw M8 X 20 |
| 5372 | 205482060 | Socket Head Screw M8 X 20 |
| 5380 | 233281434 | Hex. Flange Elastic Nut M8 |
| 6000 | 705006833 | Black LH Front Footrest |
| 6010 | 705003732 | LH Front Footpeg Pad |
| 6020 | 705003730 | Vibration Dampener |
| 6025 | 705003731 | Front Pad Plate |
| 6030 | 210263050 | Hex. Flange Screw M6 X 30 This part replaces 210263080. |
| 6040 | 705003616 | LH Rubber Bushing |
| 6050 | 230500046 | Hex. Screw M10 X 100, Scotch Grip |
| 6070 | 706201151 | Inner Bushing |
| 6080 | 234002600 | Flat Washer 10 mm, Stainless |
| 6085 | 232500416 | Elastic Stop Nut M10 |
| 6090 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 6100 | 705003932 | Grommet |
| 6110 | 709000162 | Bushing |
| 6200 | 705006836 | Black RH Front Footrest |
| 6210 | 705003245 | RH Front Footpeg Pad |
| 6220 | 705003730 | Vibration Dampener |
| 6225 | 705003731 | Front Pad Plate |
| 6230 | 210263050 | Hex. Flange Screw M6 X 30 This part replaces 210263080. |
| 6240 | 705003615 | RH Rubber Bushing |
| 6380 | 230001586 | Hex. Screw M10 X 115 |
| 6390 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 6400 | 705003932 | Grommet |
| 6410 | 706201151 | Inner Bushing |
| 6420 | 709000162 | Bushing |
| 6430 | 234002600 | Flat Washer 10 mm, Stainless |
| 6440 | 232500416 | Elastic Stop Nut M10 |
| 6500 | 705008525 | Black LH Footrest Support This part replaces 705006835. |
| 6700 | 705008529 | Black RH Footrest Support This part replaces 705006834. |
| 6950 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
