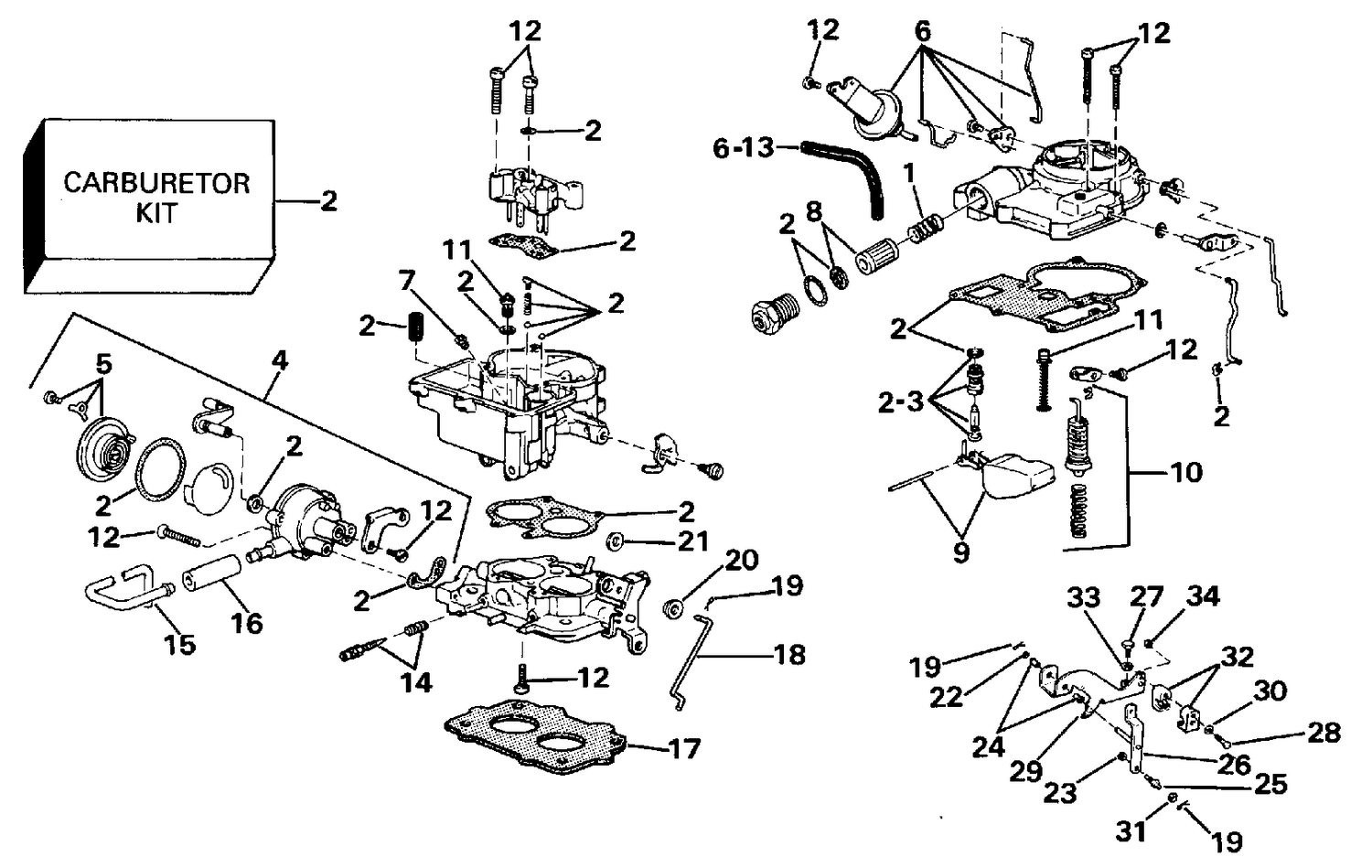

| Ref | Part Number | Description |
|---|
| 1 |
0909730 |
SPRING, Fuel filter |
| 2 |
0984487 |
CARB. REPAIR KIT |
| 3 |
0980007 |
NEEDLE & SEAT ASSEMBLY |
| 4 |
0984488 |
CHOKE PARTS PACKAGE |
| 5 |
0984489 |
COVER & THERMOSTAT PACKAGE |
| 6 |
0984490 |
VACUUM BREAK ASSY |
| 7 |
0313059 |
JET, Main metering |
| 8 |
0984491 |
FILTER, Fuel inlet |
| 9 |
0982385 |
FLAT ASSY. This part replaces 0984492. |
| 10 |
0984493 |
PUMP ASSY |
| 11 |
0984494 |
POWER VALVE & PISTON ASSY |
| 12 |
0984495 |
SCREW ASSORTMENT PKG |
| 13 |
0314531 |
HOSE, Vacuum |
| 14 |
0913666 |
IDLE NEEDLE |
| 15 |
0910161 |
TUBE ASSY, Carburetor choke |
| 16 |
0909579 |
CONNECTOR, Carburetor to heat exchanger |
| 17 |
0909758 |
GASKET, Caarburetor 185 hp |
| 18 |
0910491 |
LINK, Throttle rod to carb |
| 20 |
0910574 |
BUSHING, Link to carb |
| 21 |
0510150 |
WASHER, Ball joint |
| 22 |
0303887 |
WASHEER, Pin to swivel bracket |
| 24 |
0908979 |
BUSHING, Pivot bracket |
| 25 |
0910468 |
PIN, Lever |
| 26 |
0982698 |
THROTTLE SHAFT & PIN ASSY |
| 27 |
0306450 |
SCREW |
| 28 |
0913248 |
SCREW |
| 29 |
0913563 |
THROTTLE BRACKET |
| 32 |
0913250 |
ANCHOR BLOCK |
| 0983850 |
0983850 |
CARBURETOR ASSY |
