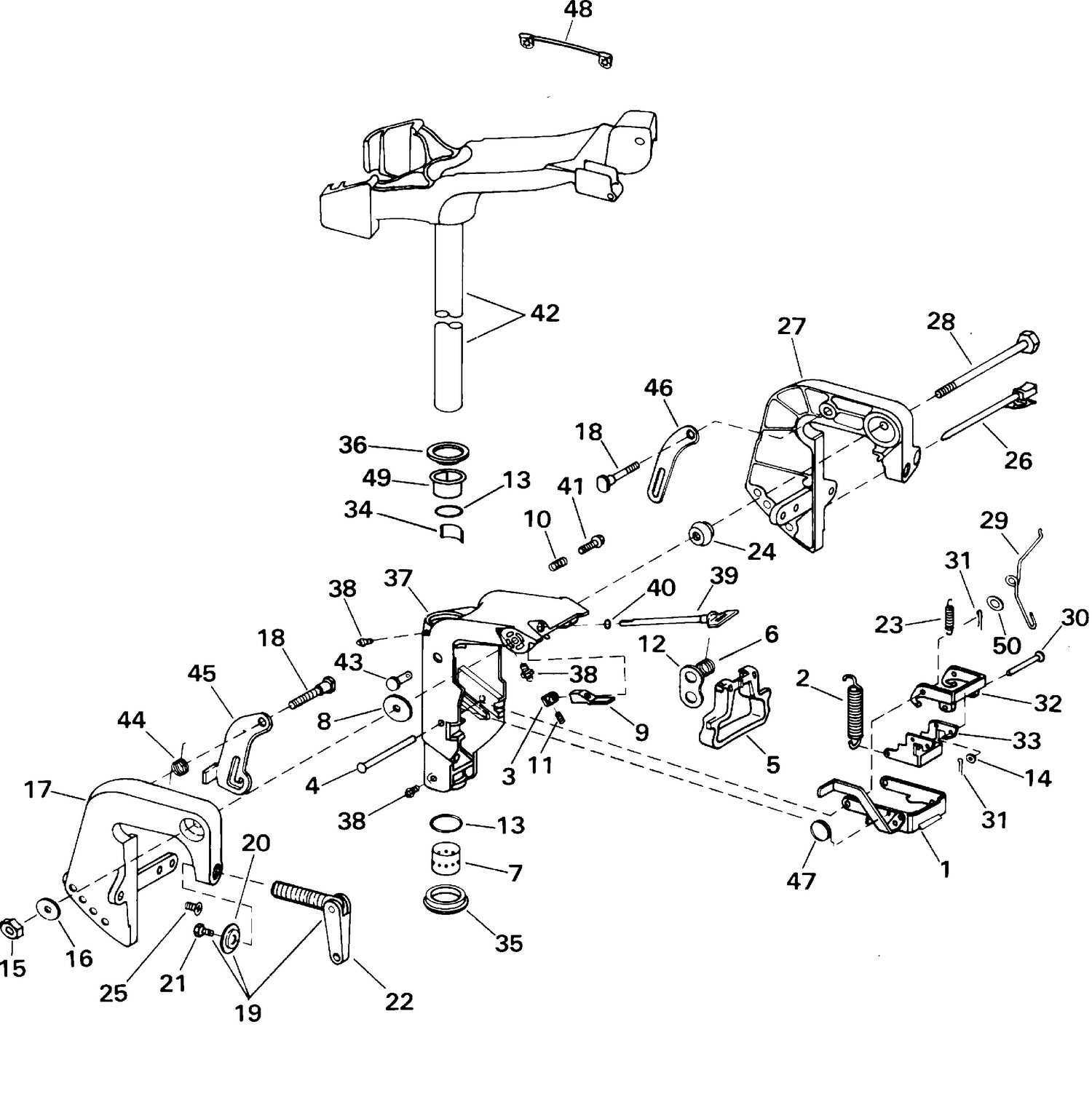

| Ref | Part Number | Description |
|---|
| 1 |
0391317 |
LINK, Shallow water drive |
| 2 |
0441186 |
SPRING, Reverse lock |
| 3 |
0324586 |
LEVER, Reverse lock release |
| 4 |
0324583 |
PIN, Reverse lock |
| 5 |
0394907 |
CARRYING HANDLE |
| 7 |
0334360 |
BUSHING, Lower, swivel bracket |
| 8 |
0304278 |
WASHER |
| 9 |
0324584 |
SPACER, Reverse lock release |
| 11 |
0324967 |
VIS |
| 12 |
0336559 |
BRACKET, Chain |
| 16 |
0312874 |
SPRING WASHER, Strg. handle |
| 17 |
0335892 |
STERN BRACKET Assy, Stbd. |
| 18 |
0328895 |
SCREW, Tilt lock |
| 19 |
0433675 |
CLAMP SCR. & HAND. ASSY. |
| 23 |
0202021 |
SPRING, Link to shallow water drive |
| 24 |
0301983 |
CONICAK WASHER,Stern brkt |
| 25 |
0901889 |
SCREW |
| 26 |
0432453 |
KNOB & TILT PIN ASSY. |
| 27 |
0335891 |
STERN BRACKET Assy, Port |
| 28 |
0336158 |
BOLT, Tilt |
| 29 |
0324588 |
LINK , Reverse lock arm |
| 30 |
0324582 |
PIN, Link locking lever |
| 32 |
0324580 |
LINK, Reverse lock |
| 33 |
0324581 |
LEVER, Reverse lock |
| 34 |
0441179 |
FRICTION PLATE, PAD & BUSHING ASSY. |
| 35 |
0324576 |
WASHER, Thrust, seal & pivot tube |
| 36 |
0441180 |
WASHER & SEAL, Thrust |
| 37 |
0441098 |
SWIVEL BRACKET ASSY. |
| 41 |
0324603 |
SCREW, Cover to base |
| 42 |
0440169 |
STEERING BRACKET |
| 43 |
0329531 |
PIN, Tilt arm |
| 44 |
0329002 |
SPRING, Tilt lock link |
| 45 |
0328999 |
ARM, Tilt lock starboard |
| 46 |
0328998 |
ARM, Tilt lock port. |
| 47 |
0324355 |
SPRING, Shallow water drive |
| 48 |
0584472 |
ENSEMBLE FILS, masse |
| 49 |
0441178 |
BUSHING, Pivot tube to swivel bracket |
