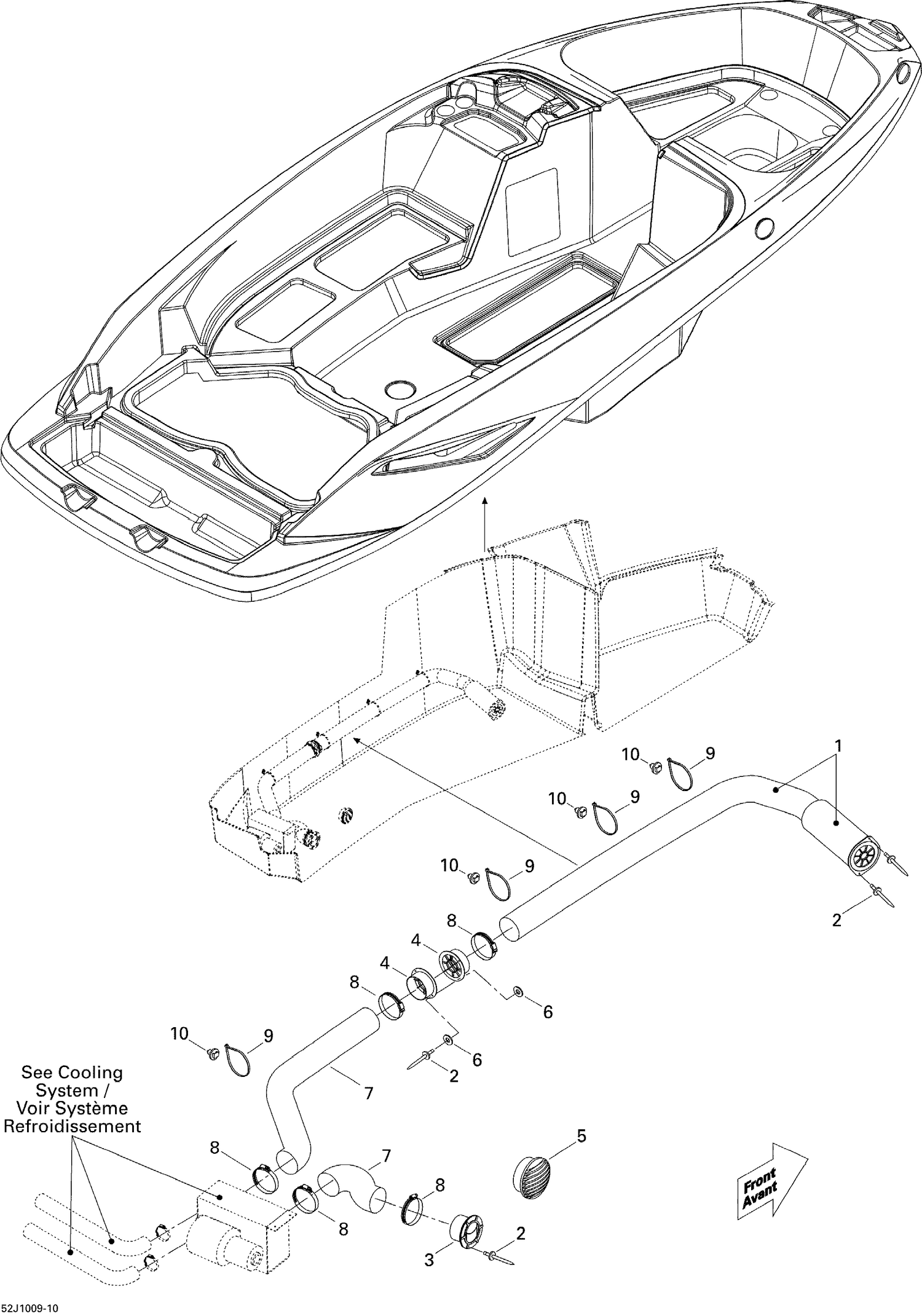

| Ref | Part Number | Description |
|---|
| 1 |
204073799 |
HEATER TUBE ASS'Y - Call your local BRP dealership This part replaces 204072851. |
| 2 |
293150036 |
RIVET_POP 1/8 X ,750 - Call your local BRP dealership |
| 3 |
204072852 |
HEATER VENT GRILL - Call your local BRP dealership |
| 4 |
204072853 |
HEATER GRILL - Call your local BRP dealership |
| 5 |
204073852 |
GRILL S/S - INTAKE/HEATER - Call your local BRP dealership This part replaces 204073011. |
| 6 |
234031600 |
Flat Washer 3 mm, Stainless Steel |
| 7 |
204340435 |
INTAKE HOSE - Call your local BRP dealership |
| 8 |
293650179 |
Tridon Clamp |
| 9 |
293750008 |
Tie Wrap 368 mm |
