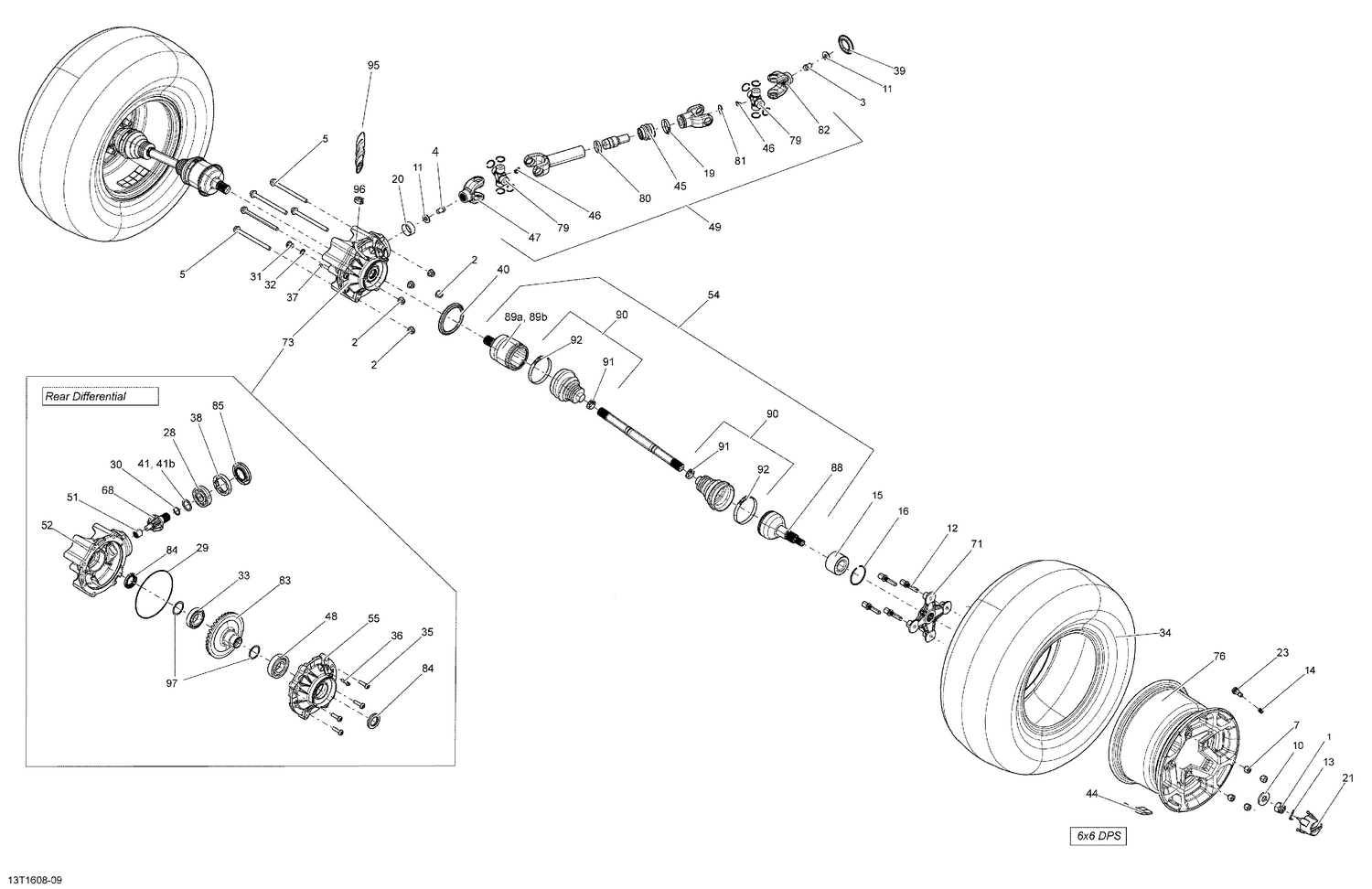

08- Drive System, Rear
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 232291413 | Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 2 | 233201436 | Hex. Flange Elastic Nut M10 |
| 3 | 250001039 | Hex Flange Screw M12 X 16 This part replaces 250000359. |
| 4 | 250000378 | HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership |
| 5 | 250001041 | Hex. Flange Screw M10 X 135 This part replaces 250000508. |
| 10 | 250200171 | Conical Spring Washer M18 This part replaces 250200049. |
| 11 | 250200102 | Flat Washer M12 |
| 13 | 250400036 | Cotter Pin |
| 14 | 293000110 | Valve Cap |
| 15 | 293350150 | Ball Bearing This part replaces 293350040. |
| 16 | 293370019 | Circlip |
| 19 | 293650138 | Oetiker Gear Clamp 44.0MM |
| 20 | 705400036 | Wear Ring |
| 21 | 705400928 | Wheel Cap |
| 23 | 705400193 | Rim Valve With Cap |
| 28 | 705500260 | Ball Bearing |
| 29 | 705500265 | Seal |
| 30 | 705500267 | O-Ring |
| 31 | 705500504 | Fill Level Plug |
| 32 | 705500506 | Copper Washer |
| 33 | 705502737 | Ball Bearing This part replaces 705500749. |
| 34 | 705501767 | Tire |
| 35 | 205483046 | SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership |
| 36 | 705500893 | VENT VALVE - Call your local BRP dealership |
| 37 | 705500504 | Fill Level Plug |
| 38 | 705401603 | Nut This part replaces 705400661. |
| 39 | 705501123 | Protector |
| 40 | 705501124 | Wear Ring |
| 41 | 705501162 | Pinion Gear Shim |
| 41b | 705502061 | Pinion Gear Shim 1.67 mm This part replaces 703500049. |
| 45 | 715900118 | Rubber Boot |
| 46 | 715900184 | Grease Fitting |
| 47 | 715900296 | Fixe Yoke |
| 48 | 705502738 | Ball Bearing This part replaces 705501389. |
| 49 | 703500987 | Shaft Ass'y Kit This part replaces 705501407. |
| 51 | 705501408 | Needle Bearing |
| 52 | 705501919 | Rear Differential Housing RH |
| 55 | 705501973 | Rear Differential Housing LH |
| 68 | 705501571 | PINION 10 TOOTH - Call your local BRP dealership |
| 73 | 705501916 | Rear Drive Unit Ass'y |
| 79 | 715900270 | Universal Joint |
| 80 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 81 | 715900187 | COVER - Call your local BRP dealership |
| 82 | 715900272 | Joint |
| 83 | 705501397 | Gear, 36 Tooth |
| 84 | 705501996 | Oil Seal |
| 85 | 705401481 | Oil Seal |
| 88 | 705501776 | JOINT_CV EXT - Call your local BRP dealership |
| 89a | 705501780 | PLUNGING JOINT - Call your local BRP dealership |
| 89b | 705501781 | Circlip |
| 90 | 705501864 | Boot Kit This part replaces 705501777. |
| 91 | 715900242 | Oetiker Clamp, 27.3 mm |
| 92 | 715900241 | Oetiker Clamp, 82.1 mm |
| 95 | 705400552 | Rubber Bellow This part replaces 705400352. |
| 96 | 293650042 | Oetiker Clamp |
