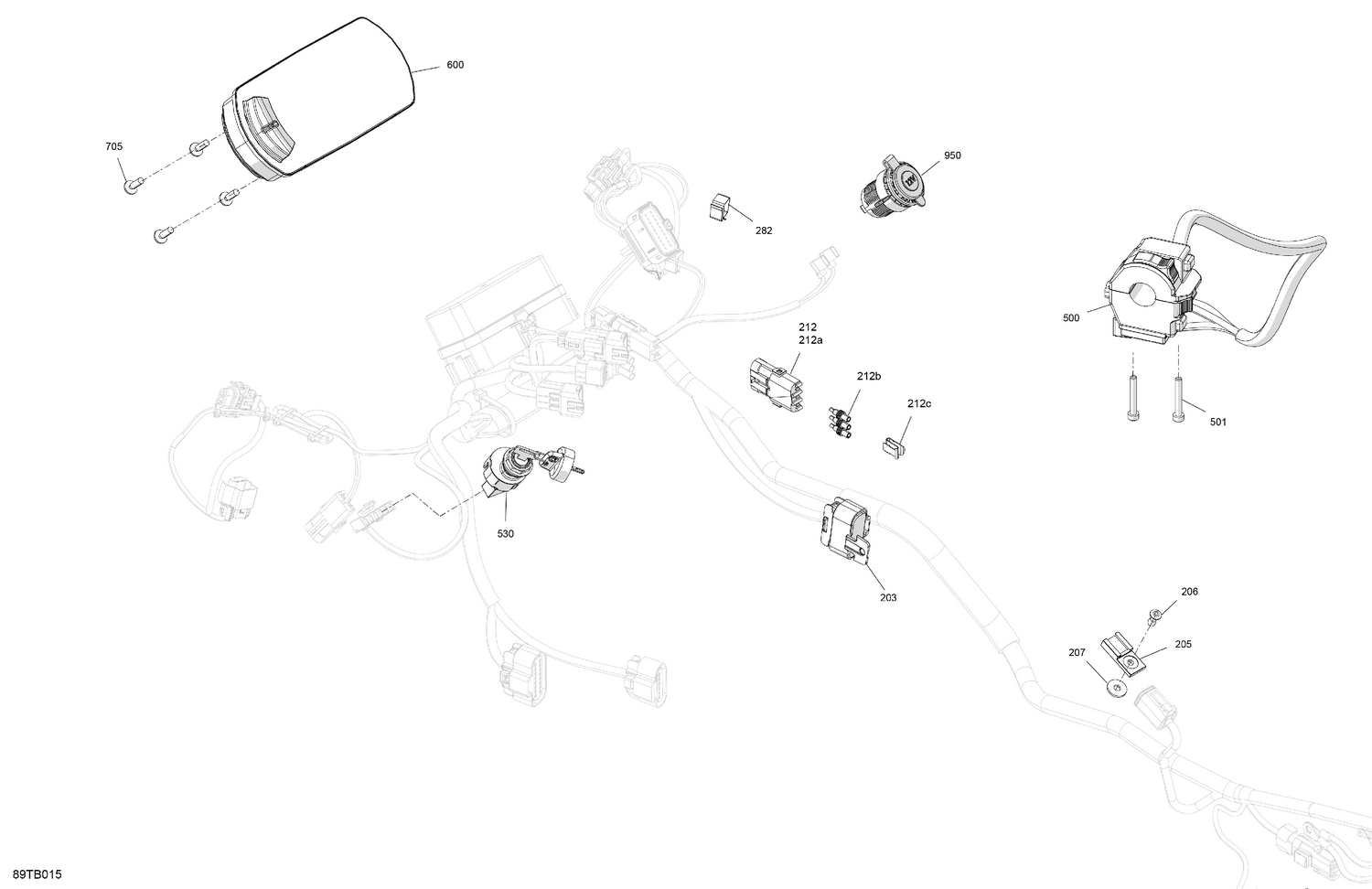

08- Electric - Front Section
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 203 | 710005760 | DPS Connector Cap |
| 205 | 270000141 | Clip |
| 206 | 293150301 | Pop Rivet 3/16 X ,551 |
| 207 | 391301600 | Washer |
| 212a | 278000281 | Female Terminal Housing, 3 Circuits |
| 212b | 278000216 | Wire Seal |
| 212c | 710000992 | Clip |
| 282 | 710010204 | Clip |
| 500 | 710008887 | Multifunction Switch |
| 501 | 205053588 | Socket Head Screw M5 X 35 |
| 530 | 710007864 | Ignition Switch |
| 600 | 710008108 | Multifunction Gauge Compact Mono |
| 705 | 250000720 | Torx Screw K50 X 16 |
