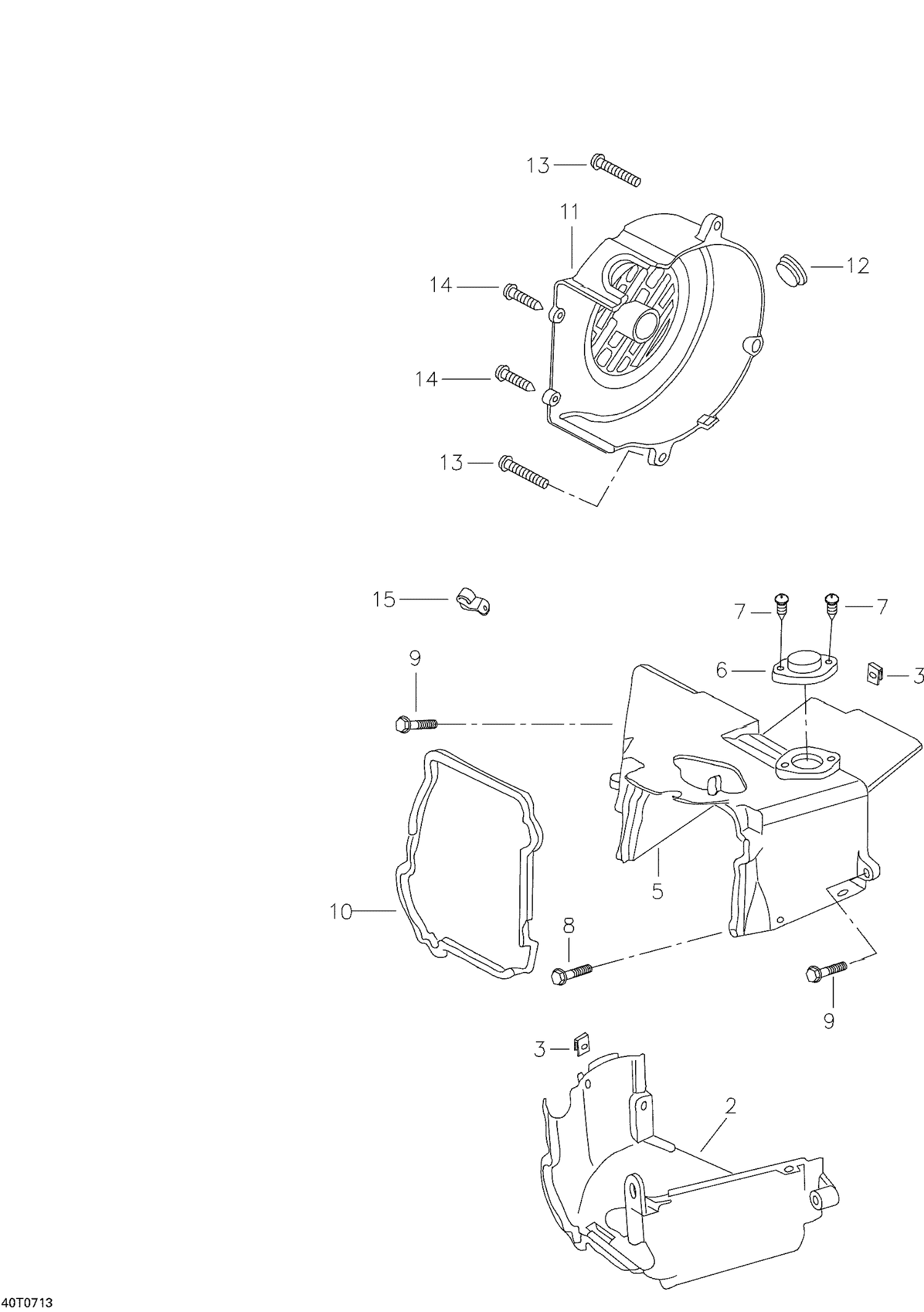

01- Fan Cover
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 2 | A19621133000 | Shroud A |
| 3 | A9034406000 | U Plate Nut |
| 5 | A19623133000 | SHROUD B - Call your local BRP dealership |
| 6 | A19633133000 | Tensioner Lifter Cover |
| 7 | A9390405012 | Hex. Truss Head Tapping Screw |
| 8 | 207661644 | Hex. Flange Screw M6 X 16 |
| 9 | A960000602008 | HEXAGONAL WASHER FACE BOLT - Call your local BRP dealership |
| 10 | A19625133000 | Seal Shroud |
| 11 | A19610133000 | GENERATOR COVER - Call your local BRP dealership |
| 12 | A17529120000 | Rubber Bung |
| 13 | A960000602508 | HEXAGONAL WASHER FACE BOLT - Call your local BRP dealership |
| 14 | A9390405016 | TAPPING SCREW TRUSS HEAD HEXAGONAL - Call your local BRP dealership |
