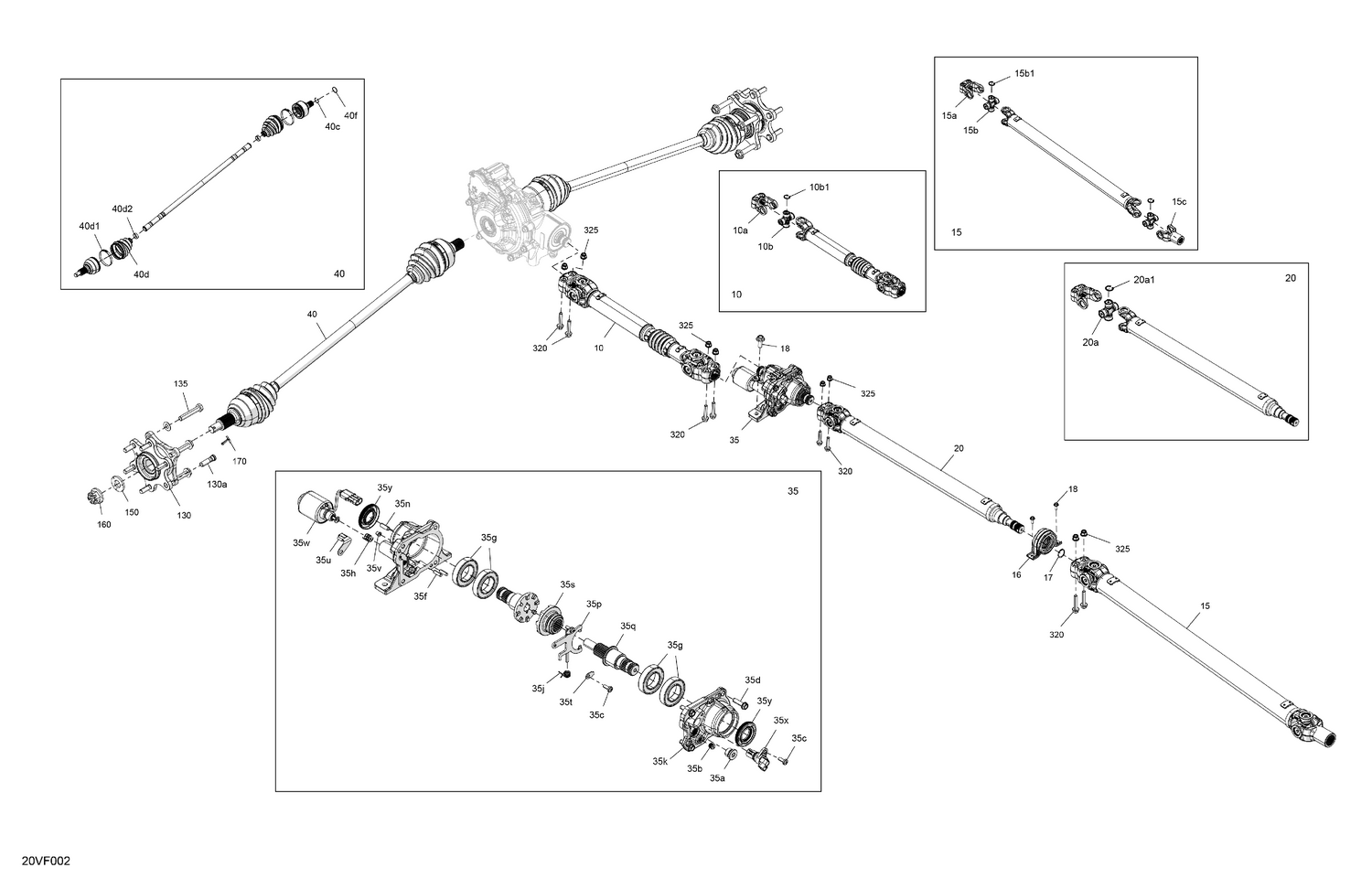

04- Drive - Front - Common Parts
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900969 | Yoke |
| 10b1 | 715900909 | Circlip |
| 15a | 715900967 | Yoke |
| 15b1 | 715900909 | Circlip |
| 15c | 715900968 | Yoke |
| 16 | 705403486 | Ball Bearing Ass'y |
| 17 | 293370098 | Snap Ring |
| 18 | 207502546 | Hex. Flange Screw M10 X 25 |
| 20a1 | 715900909 | Circlip |
| 35a | 705501889 | Fill Level Plug |
| 35b | 715900563 | Fill Level Plug M10 |
| 35c | 705402845 | Torx Screw M6 X 16 |
| 35d | 705501886 | Bolt |
| 35f | 715900559 | Dowel Pin |
| 35g | 705402847 | Ball Bearing |
| 35h | 715900756 | Compression Spring |
| 35j | 715900884 | Return Torsion Spring |
| 35k | 715900885 | Cover |
| 35n | 715900887 | Vent Tube 1/4 |
| 35p | 715900888 | Shift Fork Pivot |
| 35q | 715900889 | Output Shaft |
| 35s | 715900960 | Disconnect Dog |
| 35t | 715900766 | Retainer Fork |
| 35u | 715900893 | Solenoid Clip Bracket |
| 35v | 715900533 | Vent Cap 5/16 |
| 35w | 715900894 | Solenoid |
| 35x | 715900895 | Position Sensor |
| 35y | 715900896 | Triple Lip Seal 27.5X55.0X7.5 |
| 40c | 715900924 | Circlip |
| 40d1 | 715900455 | Oetiker Clamp, Large |
| 40d2 | 715900456 | Oetiker Clamp, Small |
| 40f | 715900925 | O-Ring |
| 130a | 715900797 | Wheel Stud |
| 135 | 250001179 | Hex. Flange Screw Din.6921 M12X1.5X70 |
| 150 | 250200170 | Conical Spring Washer M20 |
| 160 | 250100193 | Castle Nut M20 |
| 170 | 250400108 | Cotter Pin |
| 320 | 250001050 | Hex. Flange Screw M8 X 42 |
