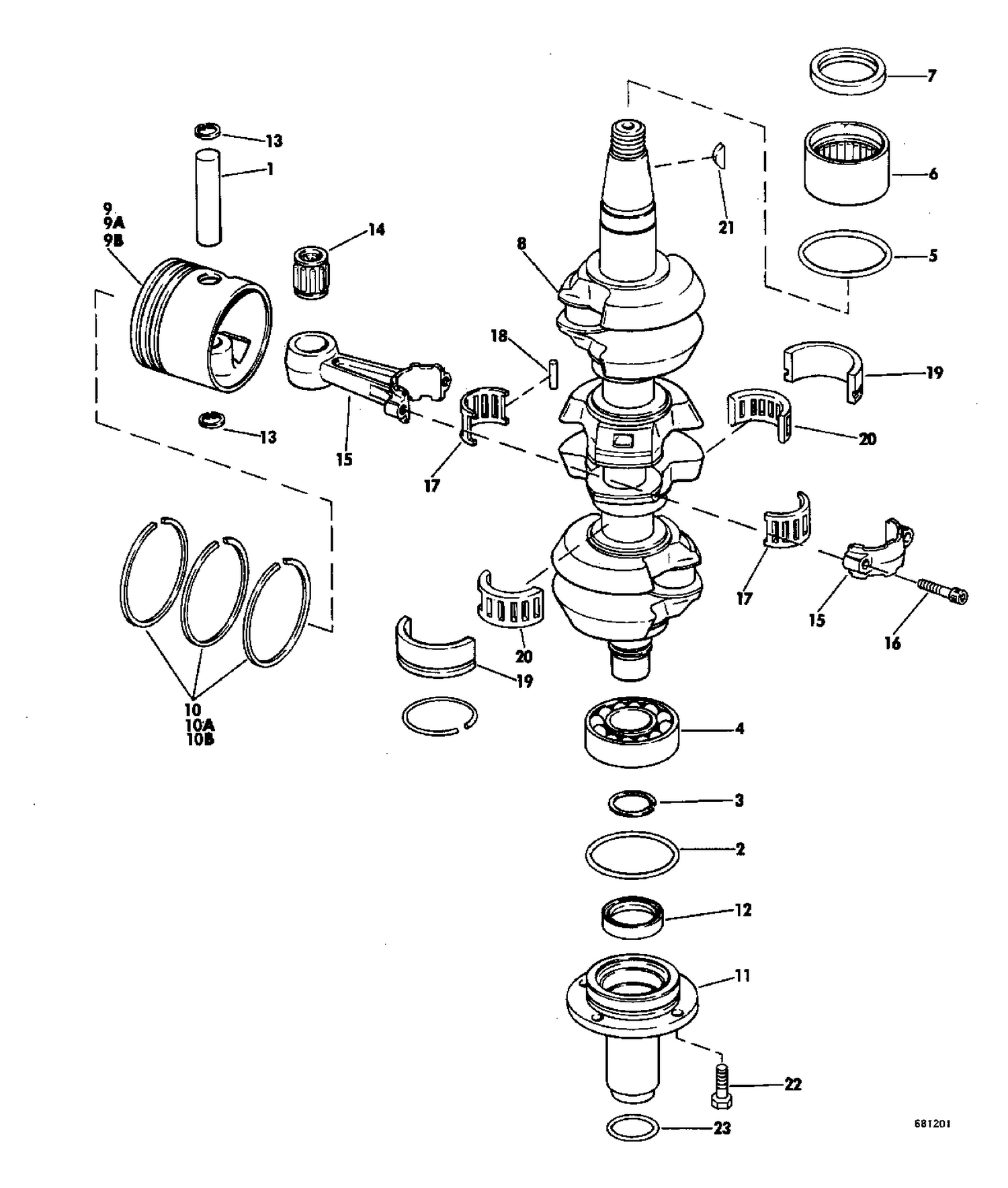

| Ref | Part Number | Description |
|---|
| 1 |
0316576 |
WRIST PIN This part replaces 0314478. |
| 2 |
0308876 |
O RING CRANKCASE HEAD LOWER |
| 5 |
0313754 |
O RING |
| 6 |
0382596 |
ROLLER BEARING & SEAL ASSEMBLY |
| 8 |
0313303 |
CRANKSHAFT |
| 9 |
0386251 |
PISTON & PIN ASSY, Std This part replaces 0383650. |
| 9A |
0386257 |
PISTON & PIN ASSY, .020 O,S . This part replaces 0383651. |
| 9B |
0386260 |
PISTON & PIN ASSY, .030 O.S . This part replaces 0384299. |
| 10 |
0383653 |
PISTON RING SET, Standard |
| 10A |
0383654 |
PISTON RING SET, (.020) O.S. |
| 10B |
0396379 |
RING SET, .030 O.S This part replaces 0384300. |
| 11 |
0395820 |
CRANKCASE HEAD ASSY. This part replaces 0382457. |
| 13 |
0302577 |
RETAINING RING |
| 14 |
0378251 |
BEARING SET, Needle, wrist pin |
| 15 |
0387465 |
CONNECTING ROD ASSY This part replaces 0382275. |
| 17 |
0437088 |
BEARING Assy This part replaces 0378528. |
| 18 |
0378515 |
BEARING SET, Needle,connecting rod |
| 19 |
0310433 |
SLEEVE |
| 20 |
0378252 |
BEARING ASSY., Needle |
| 22 |
0551793 |
SCREW |
