Parts Catalog

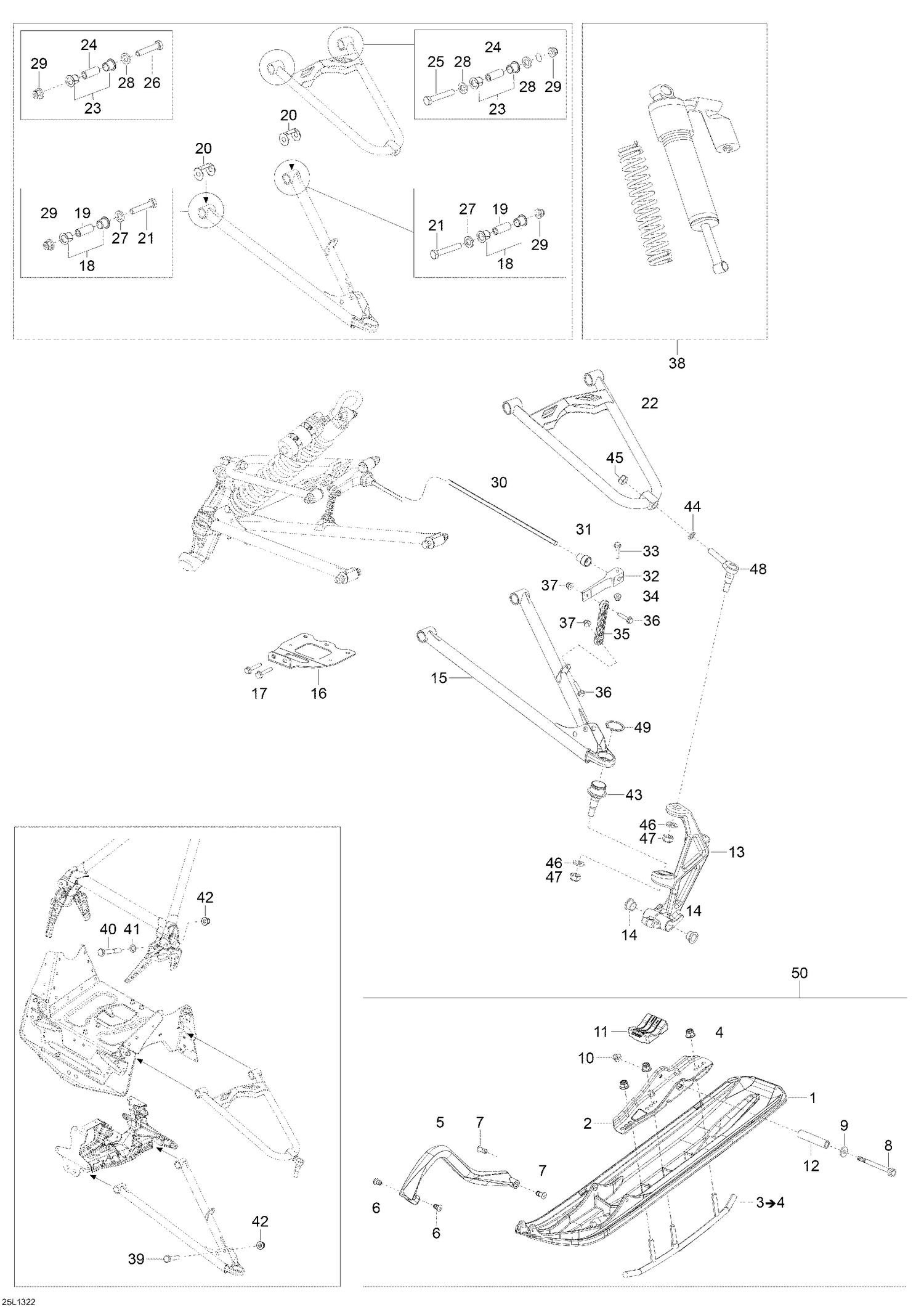

07- Front Suspension And Ski

Parts (50)

Ref	Part Number	Description
1	505073154	Blade Ski (Black)
2	505073240	Ski Bridge
4	233201414	Hex. Flanged Elastic Nut M10
5	505072976	Black, Handle
6	505071812	Retainer 17mm long
7	505072133	Retainer 23mm Long
8	231080044	Socket HD Screw M10 x 100
9	732900049	Washer
10	233201414	Hex. Flanged Elastic Nut M10
11	505073309	Rubber Damper
12	506133300	Spacer
13	505072957	Ski Leg LH
13	505072958	Ski Leg RH
14	505072690	Leg Bushing
15	505072664	Lower Arm RH
15	505072665	Lower Arm LH
16	505072584	Lower Reinforcement Plate
17	207182044	Hex. Cap Screw M8 x 20
18	503191766	Cushion
19	505072401	Aluminum Bushing
20	505072634	Wear Plate
21	250001024	Screw Hex. M10 X 70 This part replaces 250000291.
22	505072455	Upper Arm
23	503191555	Swivel Bushing
24	505072143	Aluminum Bushing
25	250001023	Screw Hex. M10 X 60 This part replaces 250000290.
26	250001022	Screw Hex. M10 X 50 This part replaces 250000289.
27	503189564	Washer
28	505072392	Washer
29	250100165	Hex. Flanged Elastic Nut M10 This part replaces 250100088.
30	505072444	Stabilisator
31	505072445	Bushing
32	505073310	Stabilisator Lever
33	207663046	Hex. Flange Screw M6 X 30
34	233261416	Elastic Flanged Nut M6 X 1.0
35	505072204	Sway Bar Double Joint Link
36	207663046	Hex. Flange Screw M6 X 30
37	233261416	Elastic Flanged Nut M6 X 1.0
38	505073244	Shock Ass´y, Ski
39	207005544	Hex. Cap Screw M10 x 55
40	207006544	Hex. Cap Screw M10 x 65
41	503189564	Washer
42	233201414	Hex. Flanged Elastic Nut M10
43	505073636	Ball Joint This part replaces 505072682.
44	503189276	Washer
45	250100089	Nut M12
46	234021410	Flat Washer
47	250100089	Nut M12
48	505072257	Upper Ball Joint
49	293370035	Circlip
