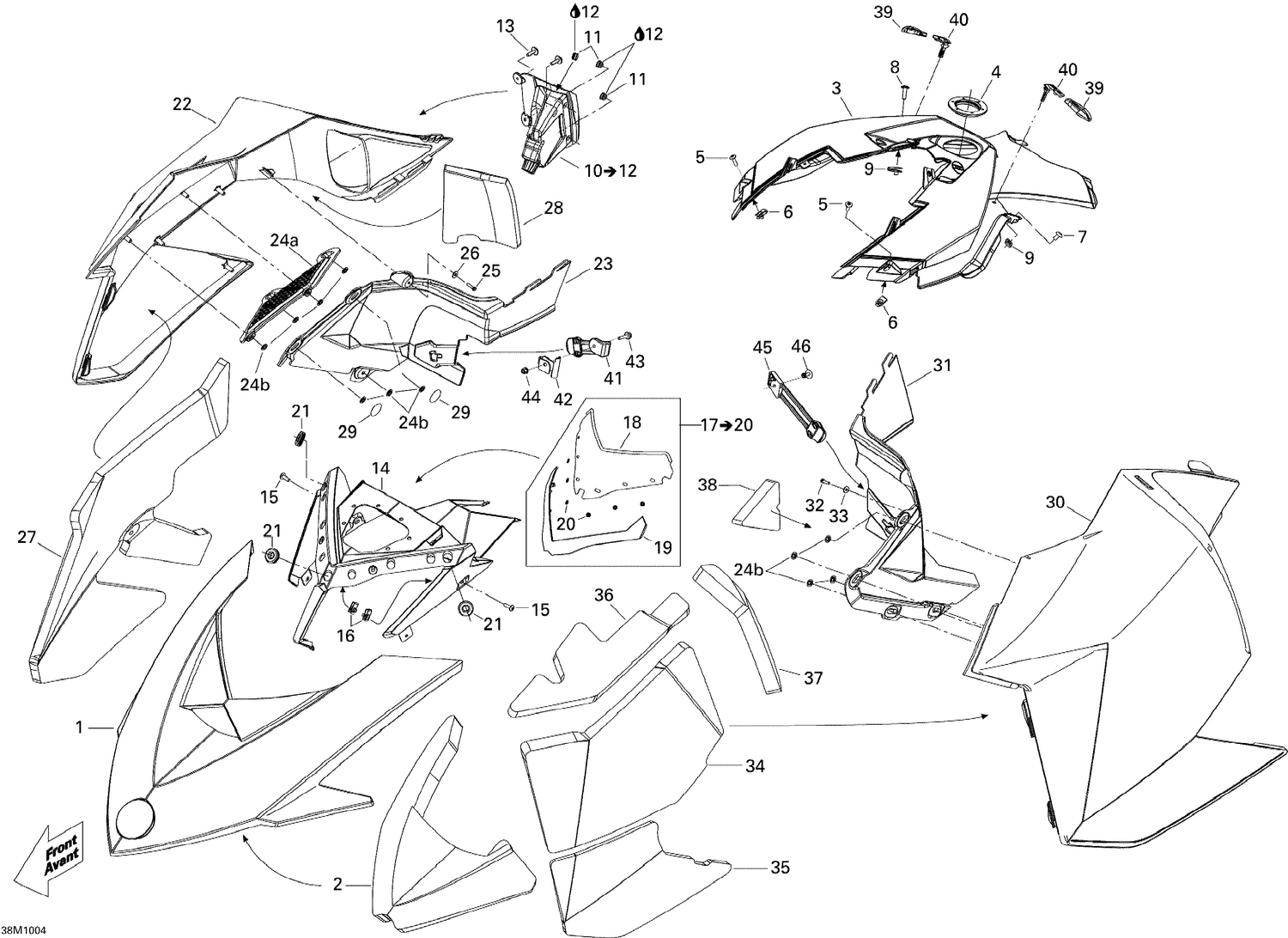

| Ref | Part Number | Description |
|---|
| 1 |
517304530 |
Deep Black Hood |
| 2 |
517304913 |
Hood Foam This part replaces 517303990. |
| 3 |
517303922 |
CONSOLE B-160 - Call your local BRP dealership |
| 4 |
517304518 |
Console Nut |
| 5 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 6 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 7 |
250000721 |
Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 8 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 9 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 11 |
275500241 |
Black, Cap |
| 12 |
413408300 |
Loctite, Black Max, 3 ml |
| 13 |
250000725 |
Screw M4 X 16 This part replaces 250000113. |
| 14 |
517304575 |
Gauge Support This part replaces 517303603. |
| 15 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
| 16 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 18 |
Not |
Available As Spare Part - Low Windshield |
| 19 |
860200089 |
Windshield Support Kit This part replaces 517303757. |
| 20 |
732610072 |
Push Nut |
| 21 |
517303756 |
Grommet |
| 22 |
517304210 |
PANEL_BODY RH B-160 - Call your local BRP dealership |
| 23 |
517303671 |
Deep Black RH Moulding Panel |
| 24a |
517303622 |
Grille |
| 24b |
732610072 |
Push Nut |
| 25 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 26 |
234042600 |
Flat Washer 4 mm, Stainless |
| 27 |
517304883 |
RH Center Foam This part replaces 517304280. |
| 28 |
517304884 |
RH Panel Rear Foam This part replaces 517303982. |
| 29 |
518325560 |
Adhesive Patch |
| 30 |
517304030 |
Deep Black, LH Panel |
| 31 |
517303673 |
Deep Black, LH Moulding Panel |
| 32 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 33 |
234042600 |
Flat Washer 4 mm, Stainless |
| 34 |
517304887 |
LH Panel Center Foam This part replaces 517303983. |
| 35 |
517304888 |
LH Panel Lower Foam This part replaces 517303984. |
| 36 |
517304889 |
LH Panel Upper Foam This part replaces 517303985. |
| 37 |
517304890 |
LH Panel Rear Foam This part replaces 517303986. |
| 38 |
517304891 |
Foam This part replaces 517303987. |
| 39 |
517304075 |
End Piece Latch |
| 40 |
517303981 |
Panel Latch |
| 41 |
517303612 |
RH Panel Latch |
| 42 |
517304221 |
Latch Support |
| 43 |
207652044 |
Hex.Flange Screw M5 X 20 |
| 44 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 45 |
517303808 |
LH Panel Latch |
